4. Commissioning equipment

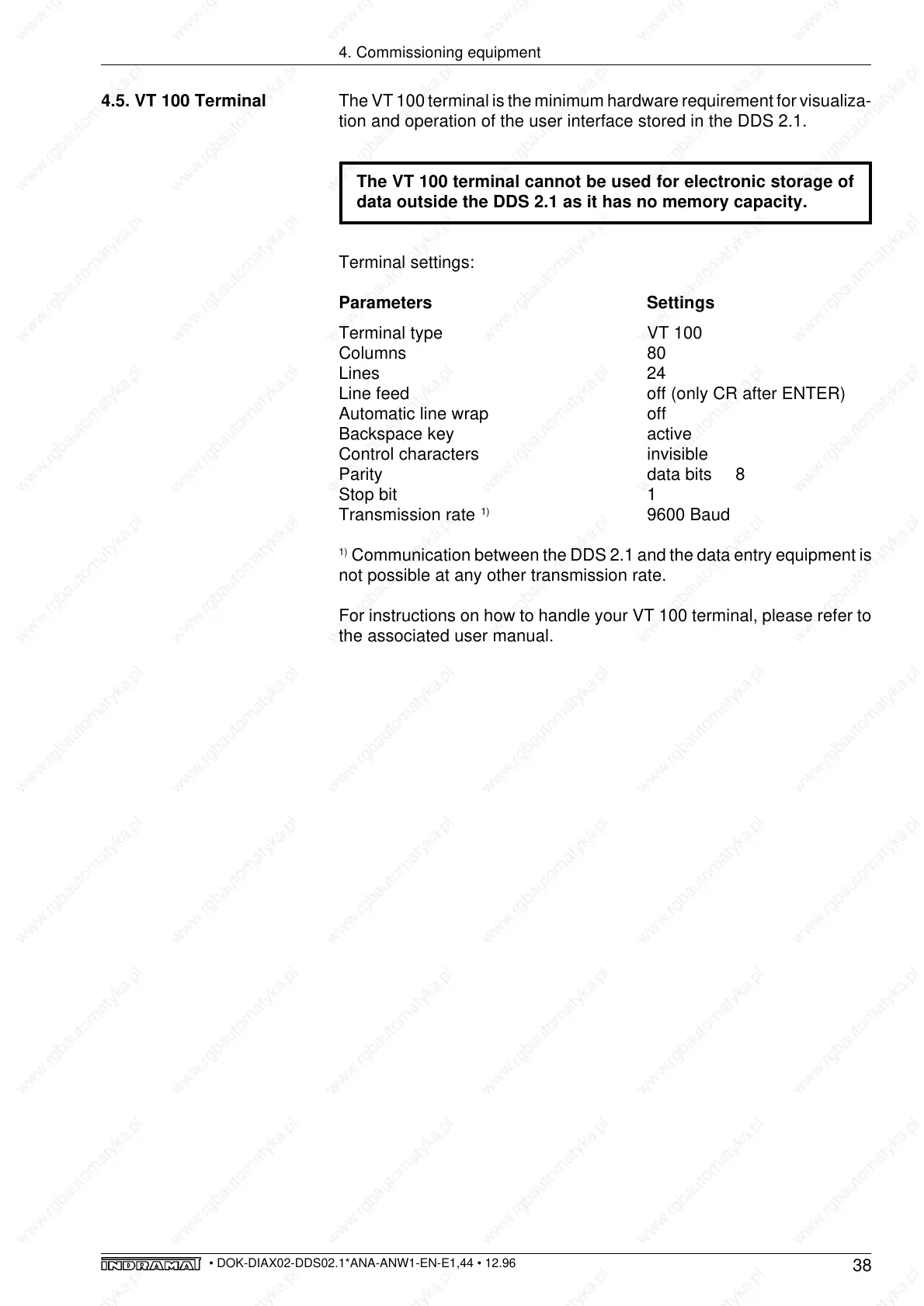

4.5. VT 100 Terminal The VT 100 terminal is the minimum hardware requirement for visualiza-
tion and operation of the user interface stored in the DDS 2.1.
The VT 100 terminal cannot be used for electronic storage of
data outside the DDS 2.1 as it has no memory capacity.
Terminal settings:
Parameters Settings
Terminal type VT 100
Columns 80
Lines 24
Line feed off (only CR after ENTER)
Automatic line wrap off
Backspace key active
Control characters invisible
Parity data bits 8
Stop bit 1
Transmission rate
1)
9600 Baud
1)
Communication between the DDS 2.1 and the data entry equipment is
not possible at any other transmission rate.
For instructions on how to handle your VT 100 terminal, please refer to
the associated user manual.
