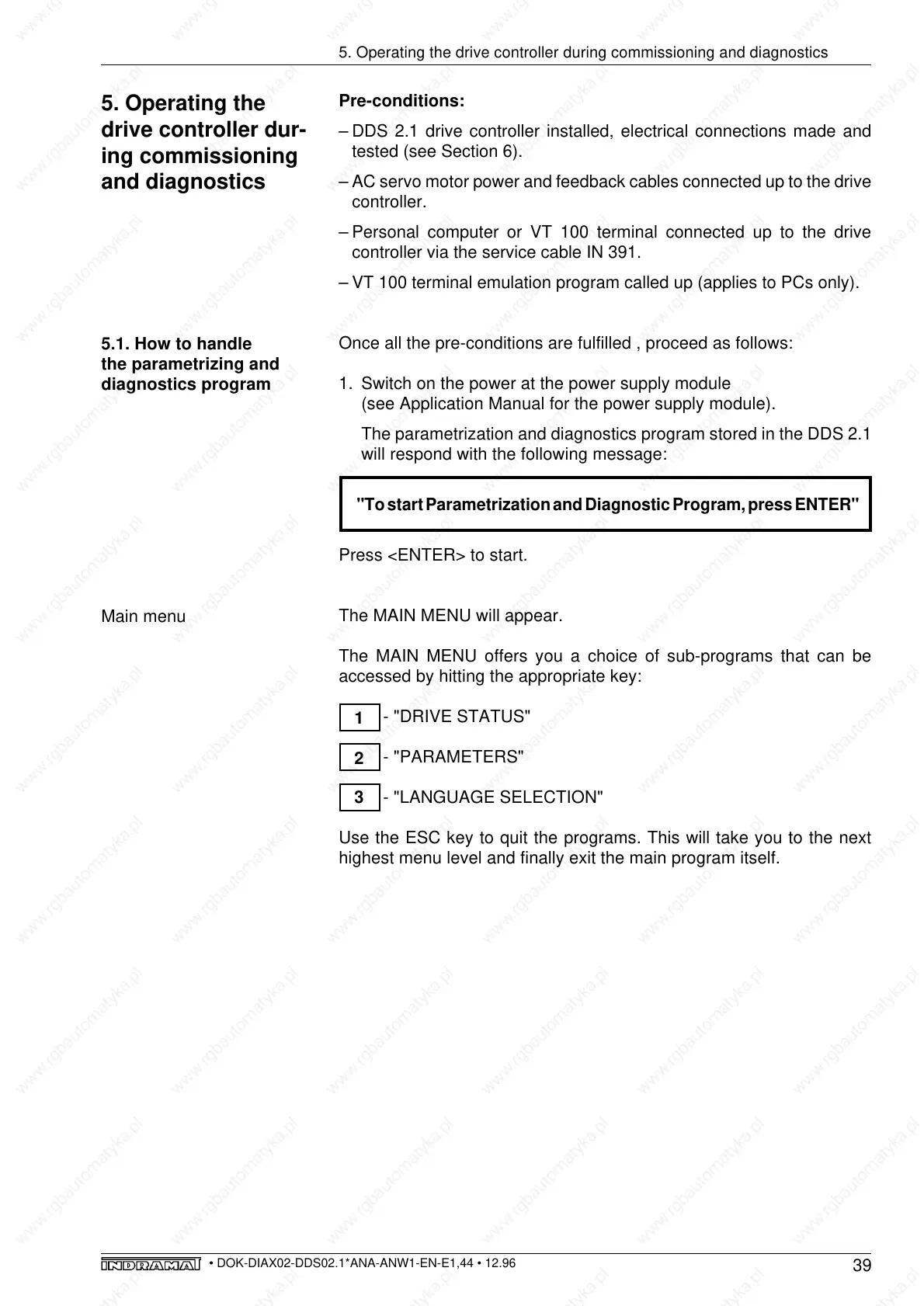

5. Operating the drive controller during commissioning and diagnostics
Pre-conditions:
– DDS 2.1 drive controller installed, electrical connections made and
tested (see Section 6).
– AC servo motor power and feedback cables connected up to the drive
controller.
– Personal computer or VT 100 terminal connected up to the drive
controller via the service cable IN 391.
– VT 100 terminal emulation program called up (applies to PCs only).
Once all the pre-conditions are fulfilled , proceed as follows:
1. Switch on the power at the power supply module
(see Application Manual for the power supply module).
The parametrization and diagnostics program stored in the DDS 2.1
will respond with the following message:
"To start Parametrization and Diagnostic Program, press ENTER"
Press <ENTER> to start.
The MAIN MENU will appear.
The MAIN MENU offers you a choice of sub-programs that can be
accessed by hitting the appropriate key:
- "DRIVE STATUS"
- "PARAMETERS"
- "LANGUAGE SELECTION"
Use the ESC key to quit the programs. This will take you to the next
highest menu level and finally exit the main program itself.
5. Operating the
drive controller dur-
ing commissioning
and diagnostics
5.1. How to handle
the parametrizing and
diagnostics program
Main menu
1
2
3
