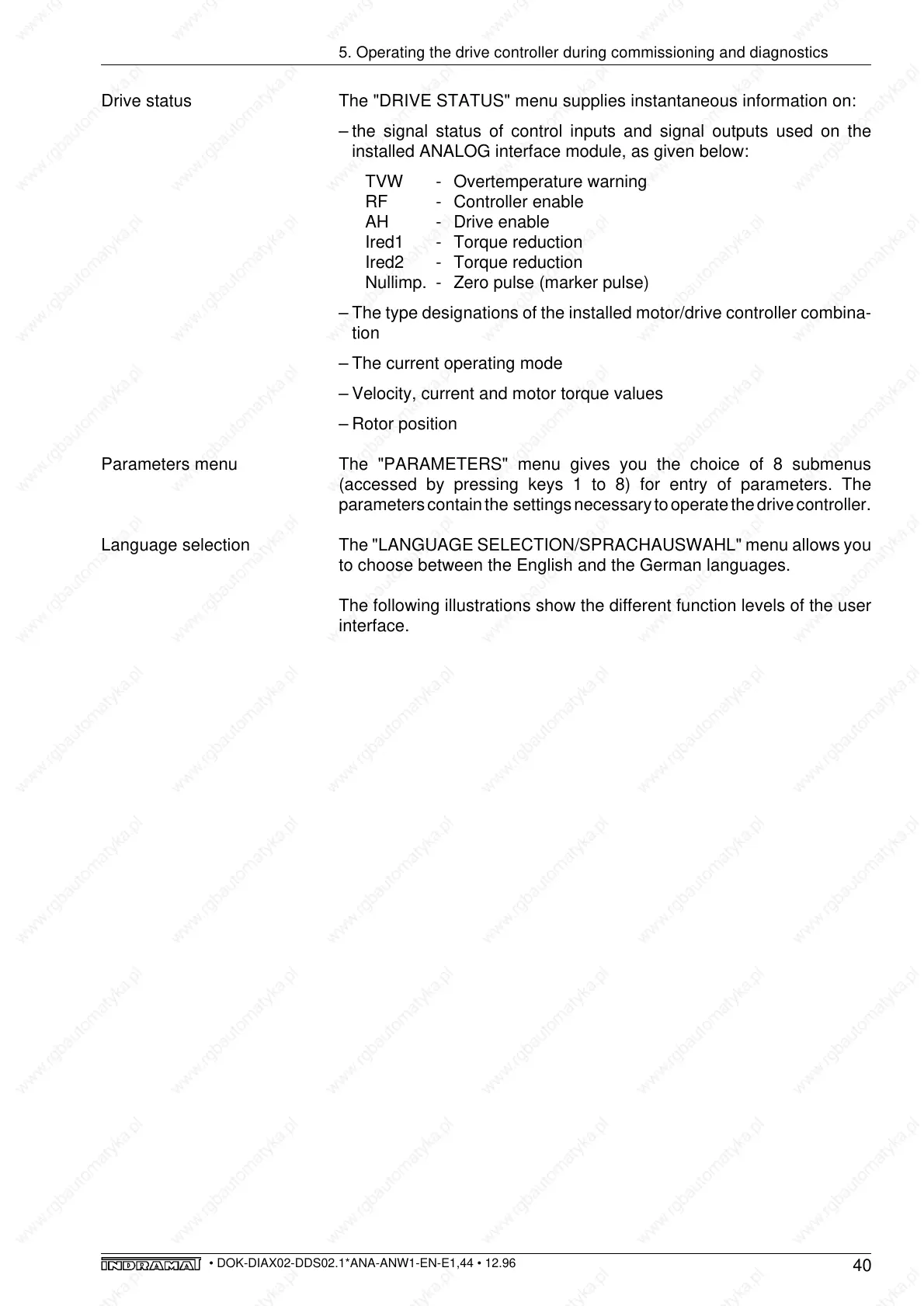

5. Operating the drive controller during commissioning and diagnostics
The "DRIVE STATUS" menu supplies instantaneous information on:
– the signal status of control inputs and signal outputs used on the
installed ANALOG interface module, as given below:
TVW - Overtemperature warning
RF - Controller enable
AH - Drive enable
Ired1 - Torque reduction
Ired2 - Torque reduction
Nullimp. - Zero pulse (marker pulse)
– The type designations of the installed motor/drive controller combina-
tion
– The current operating mode
– Velocity, current and motor torque values
– Rotor position
The "PARAMETERS" menu gives you the choice of 8 submenus
(accessed by pressing keys 1 to 8) for entry of parameters. The
parameters contain the settings necessary to operate the drive controller.
The "LANGUAGE SELECTION/SPRACHAUSWAHL" menu allows you
to choose between the English and the German languages.
The following illustrations show the different function levels of the user
interface.
Drive status
Parameters menu
Language selection
