4. Commissioning equipment
The following equipment is needed for commissioning:
– measuring instruments
– battery power source
– service cable IN 391
– personal computer with a program emulating a VT 100 terminal or a
VT 100 terminal itself
– Selection Data Doc. No. 209-0069-4302
The following measuring instruments are required:
– multimeter for voltage measurement
– oscilloscope or plotter
required only to produce test records for prototype commissioning and
as an aid in fault locating.
4. Commissioning
equipment
4.1. Measuring
instruments
ENA3A-Abb17/InbetrDDS
1
2
3
4
5
6
7
8
9
10
11
AK1
OV
AK2
0V
Bb
Bb
AS+
AS-
ASQ
ASQ
X3
M
M
X3
X2
X4
Analog
diagnostics
outputs
V
V

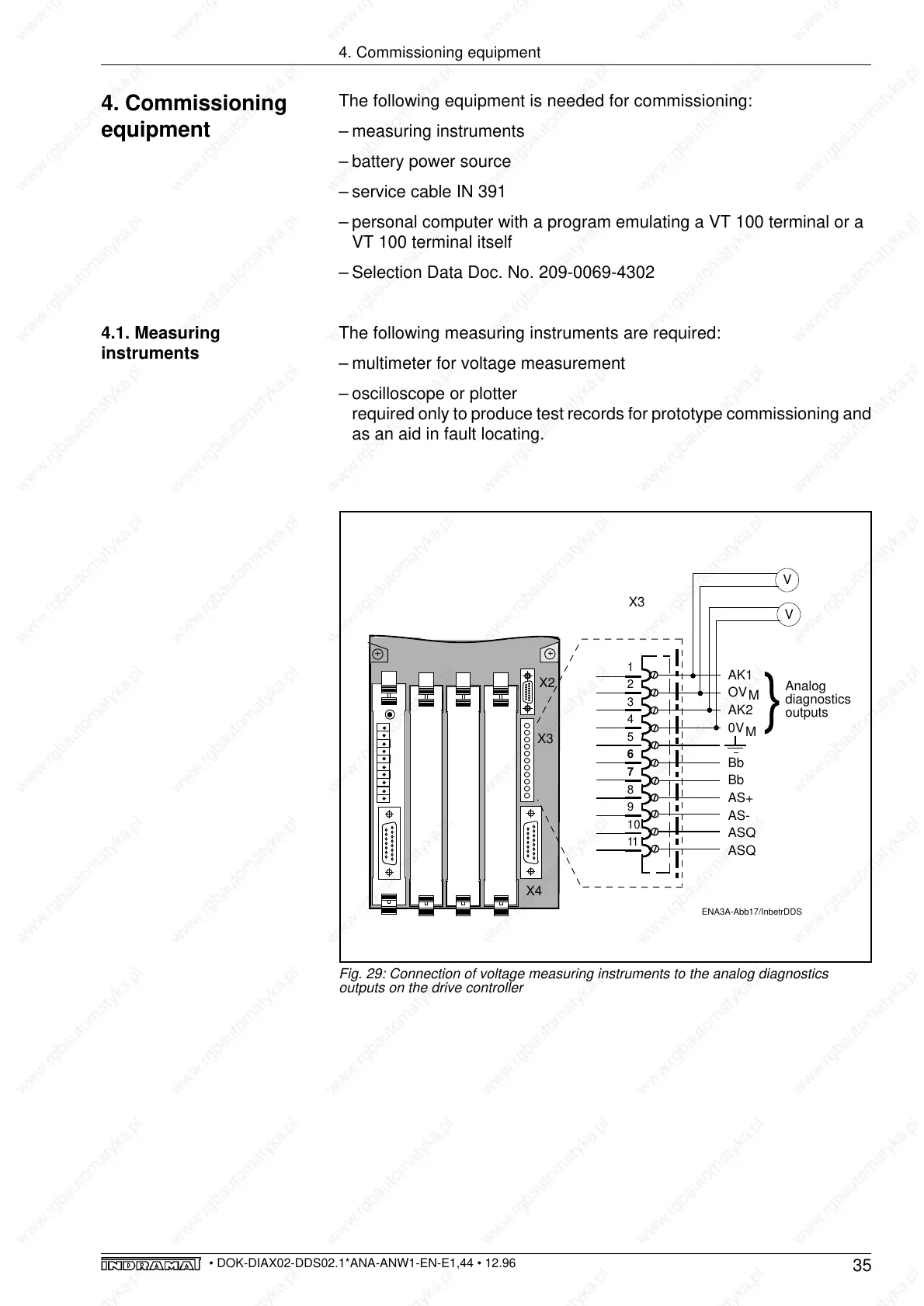

Fig. 29: Connection of voltage measuring instruments to the analog diagnostics
outputs on the drive controller
