Mannesmann Rexroth DDS 2.1 - Operational Status (Ready)

• DOK-DIAX02-DDS02.1*ANA-ANW1-EN-E1,44 • 12.96
67
7. Commissioning the functions of the digital AC servo drive
7.4. Operational status
(Ready)
In order to avoid unnecessary down time, machinery and plant require
continuous monitoring. The DDS 2.1 drive controller caters to this need
with a signal contact.
The potential-free signal contact "Bb" (Ready) on connector X3 pin 6/7
makes it possible to pinpoint the affected machine in the event of a drive
error in the associated NC control or signalling device (see Fig. 67).
The signal issued by the drive controller can be indicated through an NC
control or a signalling device.
The Bb contact opens whenever:
– there is an interruption in the control voltage
– the control voltage is applied, but there is an error in the AC servo drive
The Bb contact remains closed when:
– the control voltage is continuously applied
– the servo drive is free of errors
Switching status

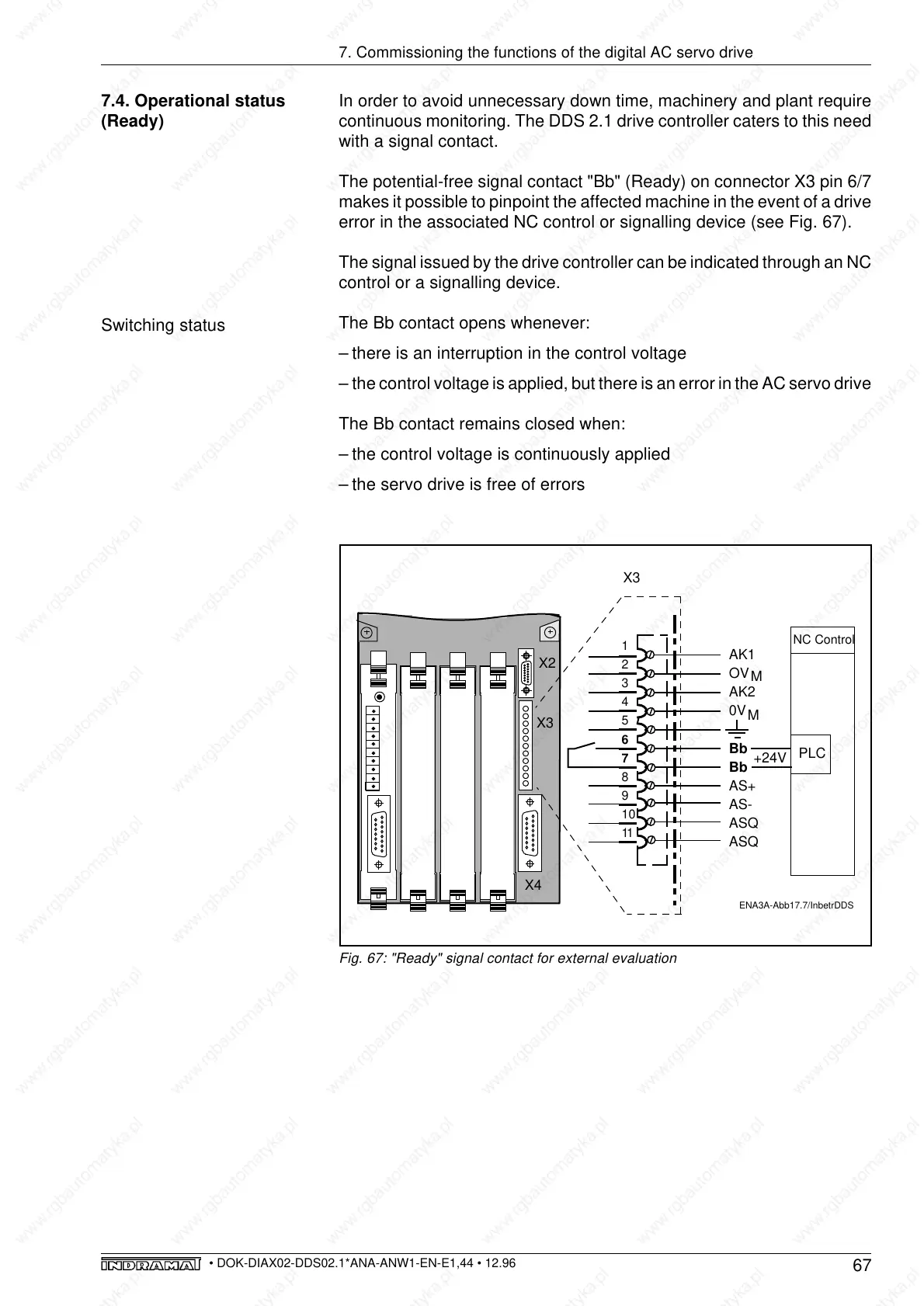

Fig. 67: "Ready" signal contact for external evaluation
ENA3A-Abb17.7/InbetrDDS
1
2
3
4
5
6
7
8
9
10
11
AK1
OV
AK2
0V
Bb
Bb
AS+
AS-
ASQ
ASQ
X3
M
M
X3
X2
X4
NC Control
PLC
+24V
