5. Operating the drive controller during commissioning and diagnostics
Parameter menu
Operating modes, scaling
Feedback versions
with DSF or RSF
Operating modes, scaling
Feedback versions
with DSF or RSF
Help text

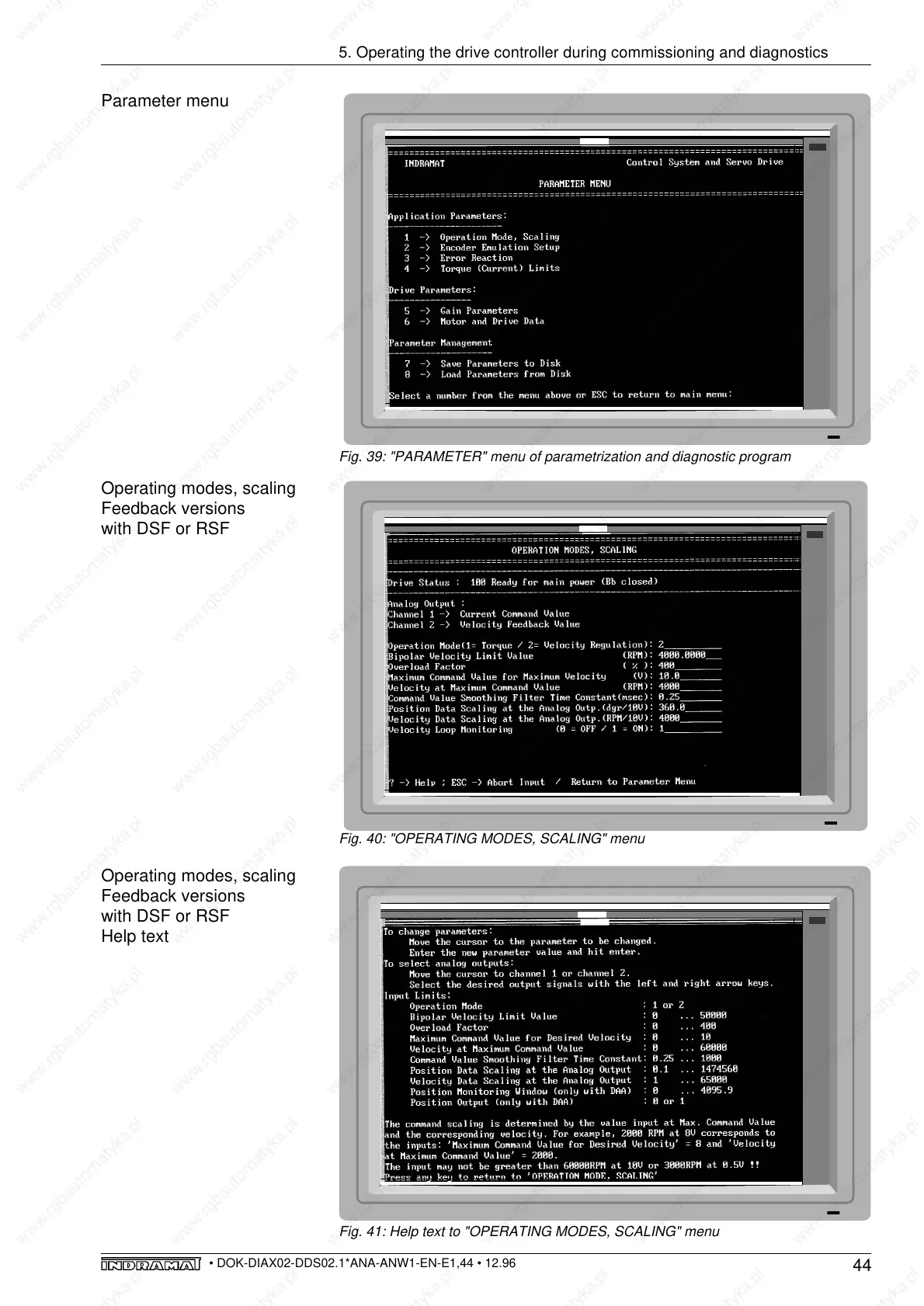

Fig. 39: "PARAMETER" menu of parametrization and diagnostic program
Fig. 40: "OPERATING MODES, SCALING" menu
Fig. 41: Help text to "OPERATING MODES, SCALING" menu
