7B-990-13645--2 495 OUTBOARD MOTOR INSTALLATION/ATTACHMENTS

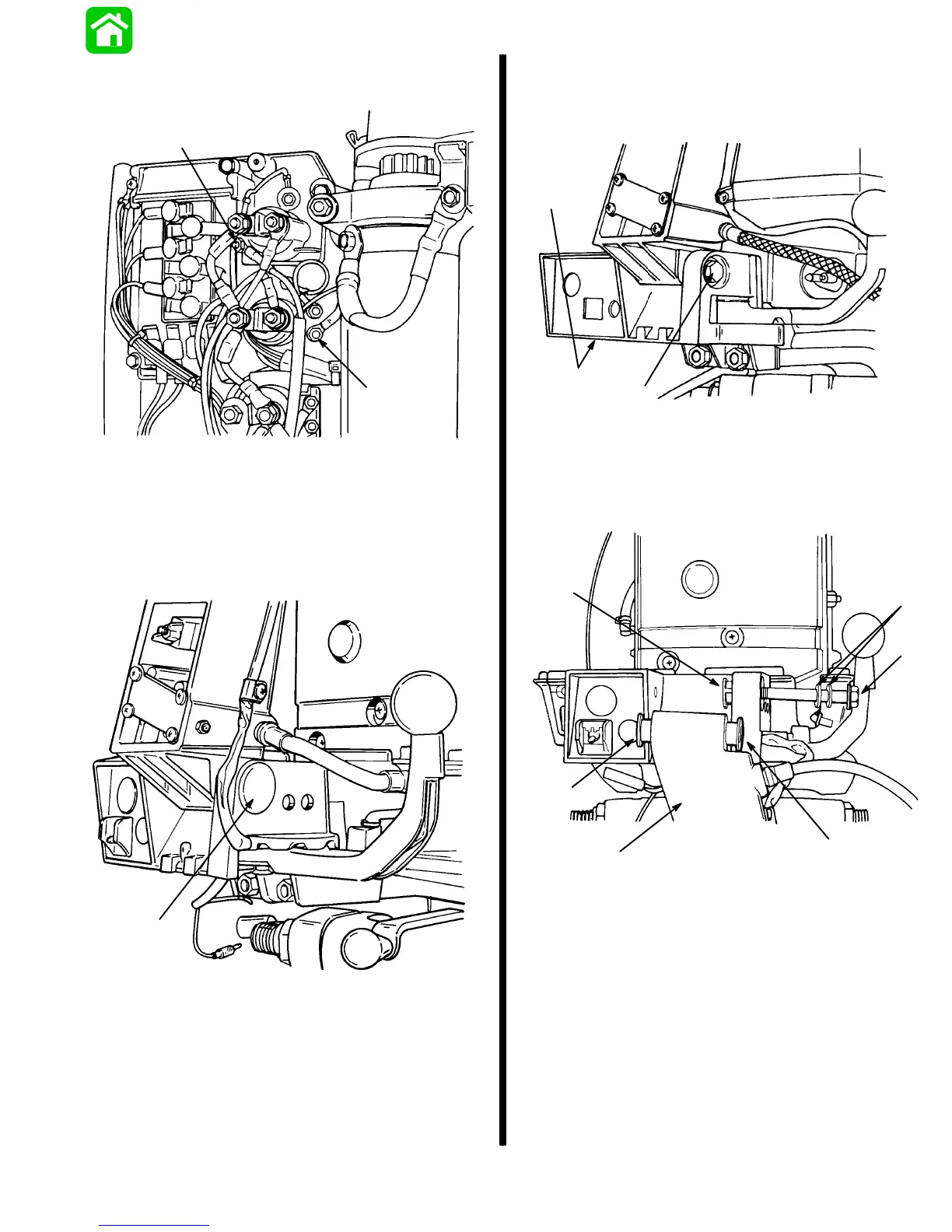

10. Disconnect BLUE/WHITE and GREEN/WHITE
trim leads from trim solenoids.
51622
a
b
a - BLUE/WHITE Lead
b - GREEN/WHITE Lead
11. Remove key switch, trim switch and their har-
nesses from tiller bracket.
12. Remove plug from tiller handle bracket.
51608
a
a - Plug
13. Remove bolt and nut (hidden) from tiller handle
bracket.
51625
a
b
a - Bolt
b - Nut (Hidden)
14. Remove tiller handle, 2 nylon bushings, stainless
bushing and 2 flat washers from bracket.
51606
a
b
c
b
d
e
a - Tiller Handle
b - Nylon Bushings (2)
c - Stainless Steel Bushing
d - Flat Washers (2)
e - Bolt
