Mark-10 WT3-201M User Manual

Model WT3-201M Motorized Wire Crimp Pull Tester User’s Guide
25

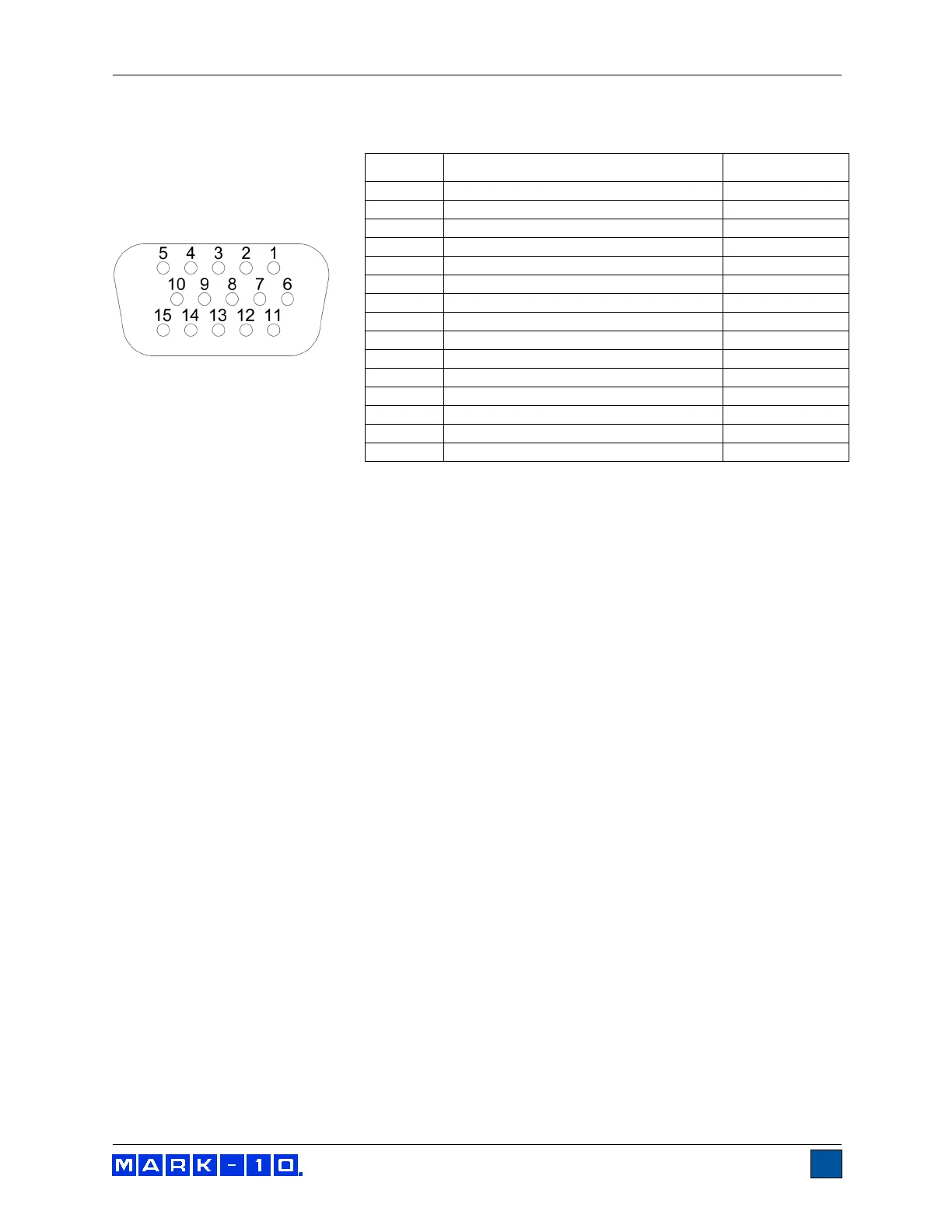

18.5 I/O Connector Pin Diagram (DB-15HD female)
* Maximum voltage: 40V.
Pin No. Description Input / Output
1
Signal Ground
---
2 *
Tension Overload *
Output *
3
RS-232 Receive
Input
4
RS-232 Transmit
Output
5
+12V DC
Input / Output
6
Analog Output
Output
7
---
---
8
Mitutoyo Clock
Output
9
Mitutoyo Data or
Output
10
Mitutoyo Request or
Input
11
Set Point Pin 1 (SP1)
Output
12
Set Point Pin 2 (SP2)
Output
13
Set Point Pin 3 (SP3)
Output
14
---
---
15 *
Mitutoyo Ready
Output *
