Model WT3-201M Motorized Wire Crimp Pull Tester User’s Guide
7

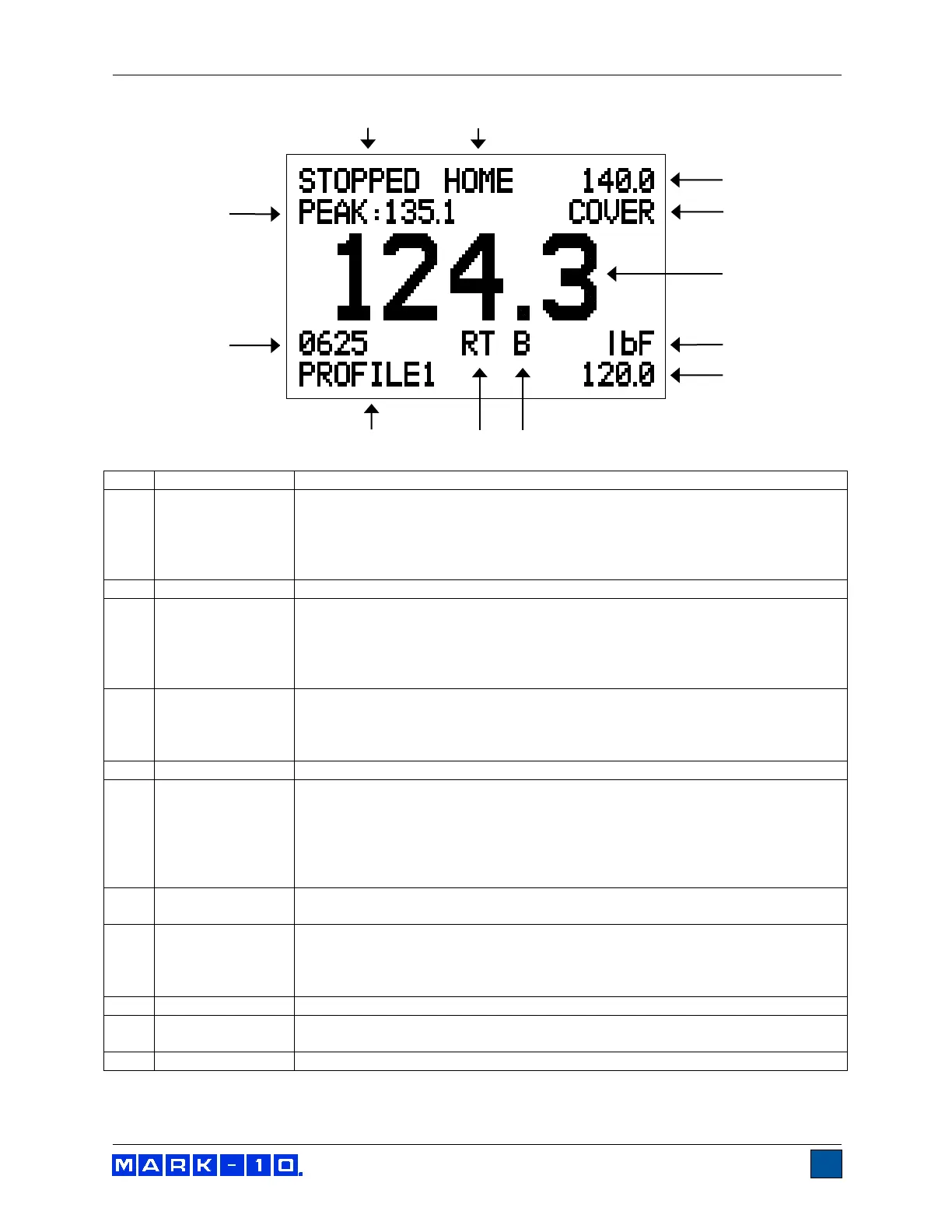

4.2 Home Screen
No.
Name
Description
1 Status
Indicates one of the following statuses:
STOPPED
PULLING
RETURNING (to the Home position)
HOLDING (Load Holding sequence in progress)
2
Position
Indicates one of the following positions: HOME or LIMIT
3 / 7
Upper / lower
force limits
Indicates the upper and lower acceptable force limits, as configured in the
Pass / Fail Limits menu. The upper and lower red “X” indicators adjacent to
the values illuminate if the displayed force is less than the lower limit or
greater than the upper limit. The green “checkmark” indicator illuminates if
the displayed force is within range.
4 Message
Indicates one of the following messages:
COVER - the actuator cover is removed.
PL ON – Pull to Load (optional function) is active.
LH ON – Load Holding (optional function) is active.
5
Primary reading
The current displayed reading. See Operating Modes section for details.
6
Unit of
measurement
The current measurement unit. Abbreviations are as follows:
lbF – Pound-force
ozF – Ounce-force
kgF – Kilogram-force
N – Newton
kN – Kilonewton
8
Break detection
on/off
The letter “B” appears if the Break Detection function is enabled. Refer to the
Break Detection section for details.
9 Mode
The current measurement mode. Abbreviations are as follows:
RT – Real Time
PK – Peak
See Operating Modes section for details about each of these modes
10
Profile name
Indicates the currently selected profile. See Profiles section for details.
11
Number of data
points
The number of data points stored in memory, up to 2,000.
12
Peak force
The maximum measured tension force. May be reset by pressing ZERO.
1
3
5
7
8
10
11
12
6
2
4
9
