17
MOUNTING HOLES
INSTALLATION OF 550 SERIES CONDENSING UNITS AND 551 SERIES HEAT PUMP OUTDOOR
UNITS
MCU+ = standard condensing unit + FSC + LP
MHPUL(E) = electronic heat pump outdoor unit
MCUP = German description for MCU+
= standard condensing unit + FSC + LP
Units are supplied with loose restrictors which may be required, depending on the indoor unit it is matched with; refer
to page 14.
The installer will require:
2 flare spanners for securing the flare fittings Refrigeration quality pipework Insulation
A 5 or 8 mm Allen key to open the valves. Evacuating pump Refrigerant and polyolester oil
Kits are more easily fitted prior to mounting the unit.
These units are designed to stand on a flat surface. If the unit is to be wall mounted the following kits are available:-
(TEV Ltd cannot accept liability for installers own mounting arrangements).
Model MCU+60 - 80 MCU+ 90 - 150
MHPUL(E) 80
MHPUL(E) 80
- 150
Mounting Bracket Kit
55021100 55021101

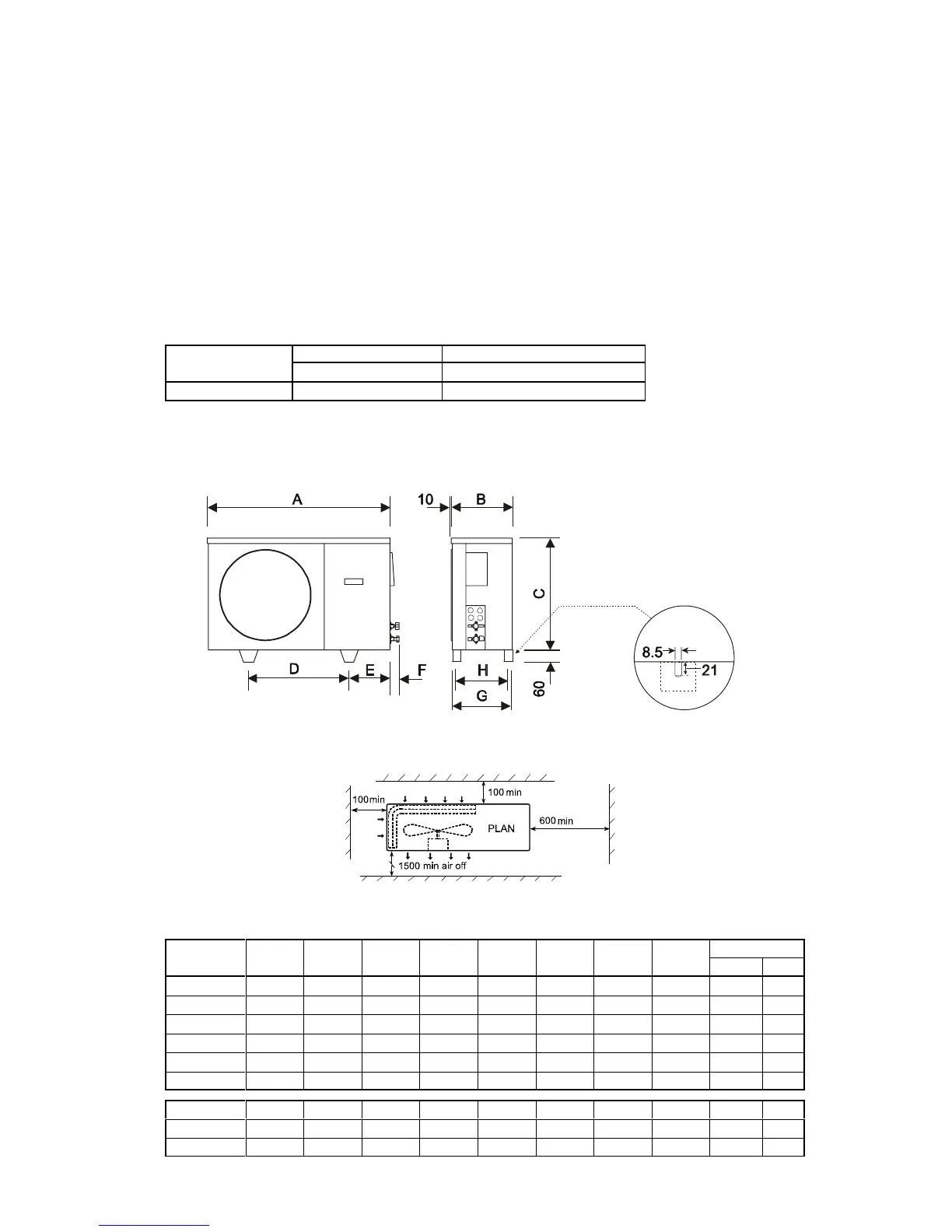

MOUNTING: MCU+ 60 - 150 and MHPUL(E) 80 - 150
Whether floor or wall mounted, it is essential that the mounting surface is capable of supporting the unit weight.
Leave space around the unit for air circulation and access for installation and maintenance.
All dimensions mm
MODELABCDEFGH
Weight (kg)
1 Ph 3 Ph
MCU+ 60
1000 300 660 570 213 60 295 275 65 63
MCU+ 80
1000 300 660 570 213 60 295 275 66 64
MCU+ 90
1000 350 760 495 250 70 345 325 76 73
MCU+ 100
1000 350 760 495 250 70 345 325 -- 81
MCU+ 130
1000 425 1020 495 251 100 417 397 -- 101
MCU+ 150
1000 425 1020 495 251 100 417 397 -- 106
MHPUE 80
1000 350 760 495 250 70 345 325 75 72
MHPUE 100
1000 425 1020 495 251 100 417 397 -- 101
MHPUE 150
1000 425 1020 675 251 211 417 397 -- 106
