5m HIGH CONDENSATE PUMP KIT 55500303
This kit is for use on all versions of CC875 indoor units and is suitable for condensate removal where a lift of up to a
maximum 5m is required. The pump will run on demand. The sensor has a high level alarm which will switch off the
cooling signal until the condensate has dropped below a preset level.
ITEM QTY DESCRIPTION
1 1 Pump assembly
2 1 Plastic nut
3 1 Drain plug
41Screw No.10
5 2 Cable tie
• It is easiest to fit this kit prior to installing the unit.
• ISOLATE THE SYSTEM ELECTRICALLY PRIOR TO INSTALLATION OF THIS KIT
FASCIA REMOVAL (IF FITTED)
1 Release the two latches on the grille and remove from the fascia complete with the filter intact.
Remove the fascia by releasing the four retaining screws and unclipping from the chassis. Store in a clean, safe
area.
CHASSIS REMOVAL
IMPORTANT: Prior to removing the chassis it will be necessary to ensure that all the condensate has been
removed from the drain.
UNITS WITH GRAVITY DRAIN
a Disconnect the service drain from the unit and collect
any condensate in a suitable container.
b Remove and discard the drain adaptor from the chassis.
c Fit the drain plug provided
UNITS WITH A 0.5m LIFT PUMP or HIGH LEVEL ALARM FITTED
a Using a 6mm Allen key or a medium sized flat bladed
screwdriver, remove the blanking plug from the drain
outlet on the chassis (Fig.1.) and collect any condensate
in a suitable container.
b Refit the plug ensuring a good seal.
.
ACCESS TO INTERNAL COMPONENTS
1 Remove the external electrics box cover.
2 On ‘L’ and ‘E’ units, unclip the receiver pcba from the chassis. (Fig. 2.1)
3 On ‘L’ and ‘E’ units, remove the return air sensor from the fan guard.
4 Release the internal electrics tray (2 screws, Fig. 2.2) and remove the fan cowl (4 screws).
5 If the unit is installed, hang the internal electrics tray from the fan
using the hook fitted to the tray. Remove the four chassis
retaining screws and lower the chassis.
If the unit has not been installed, move the internal electrics
tray to allow removal of the four chassis retaining screws: lift
off the chassis.

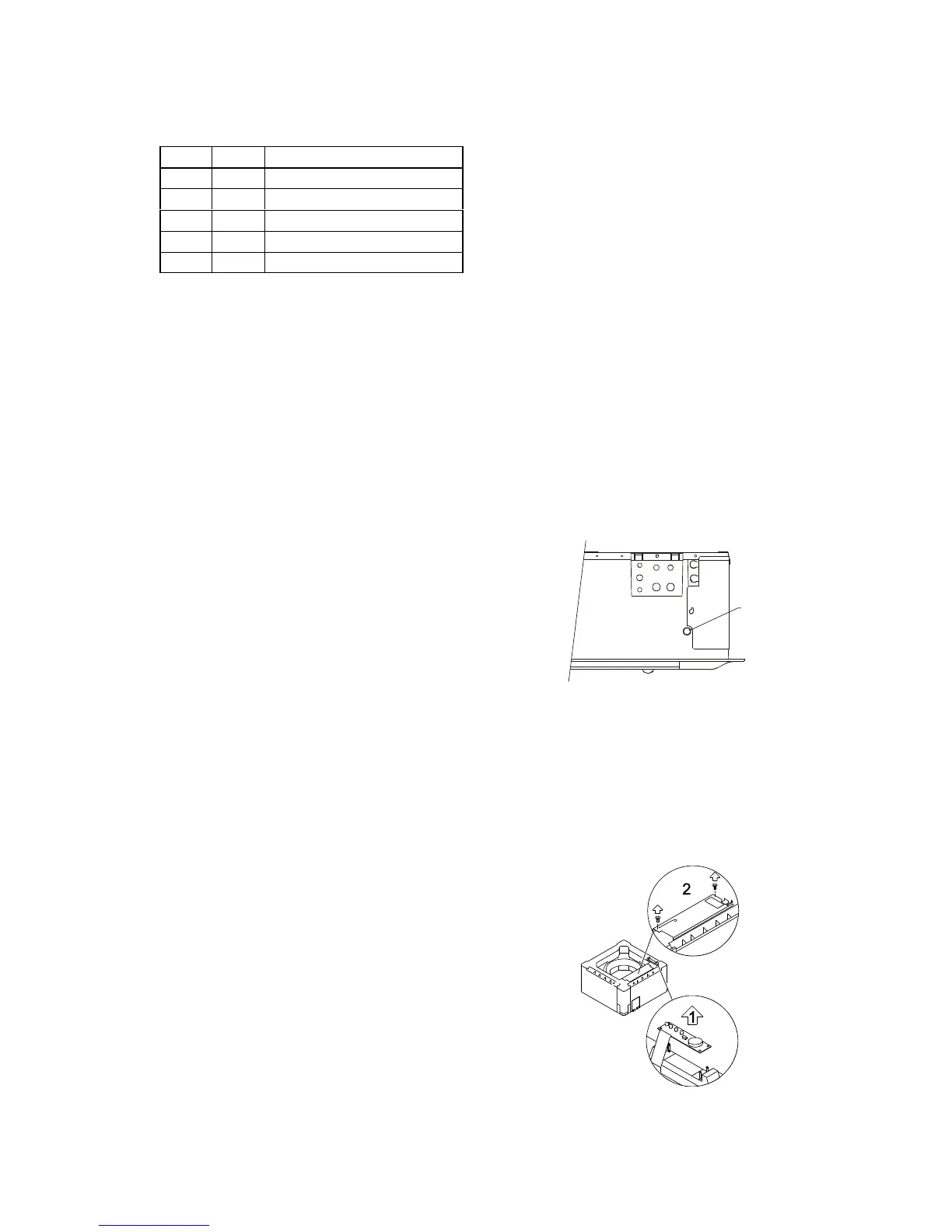

Fig.1
Blanking plug/
gravity drain
outlet
Fig. 2
