Marstair CC 875 - WIRING DIAGRAMS; CC875 Wiring Diagrams

28

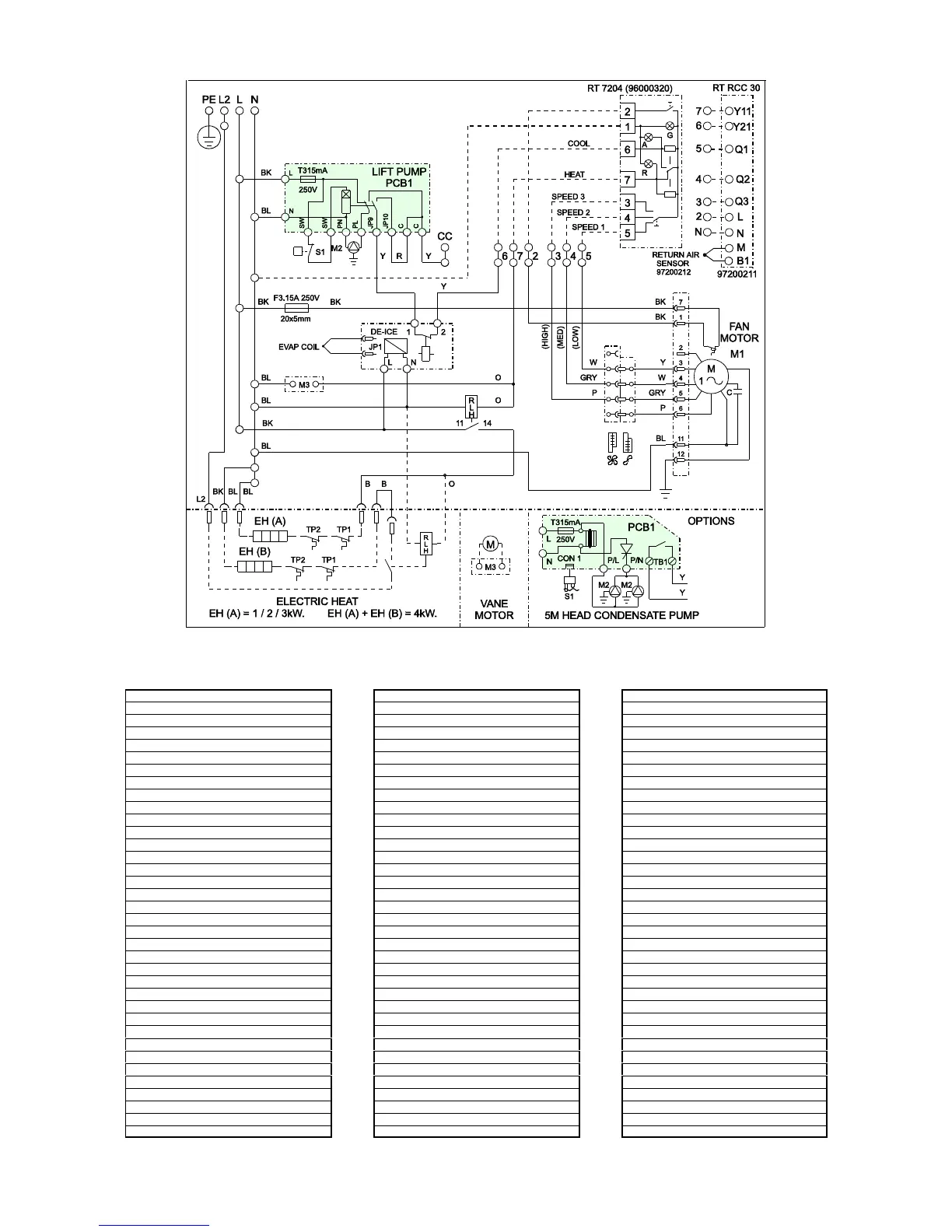

CC875 WIRING DIAGRAM
B
BROWN
B
MARRON
B
BRAUN
BK
BLACK
BK
NOIR
BK
SCHWARZ
BL
BLUE
BL
BLEU
BL
BLAU
G
GREEN
G
VERT
G
GRUN
GRY
GREY
GRY
GRIS
GRY
GRAU
O
ORANGE
O
ORANGE
O
ORANGE
P
PINK
P
ROSE
P
ROSA
R
RED
R
ROUGE
R
ROT
T
TURQUOISE
T
TURQUOISE
T
TUERKIS
V
VIOLET
V
VIOLET
V
VIOLET
W
WHITE
W
BLANC
W
WEIS
Y
YELLOW
Y
JAUNE
Y
GELB
AC
AIR CONDITIONER
AC
CLIMATISEUR
AC
KLIMA ANLAGE
C
CAPACITOR
C
CAPACITÉ
C
KONDENSATOR
CC
CONTROL CIRCUIT
CC
CIRCUIT DE COMMANDE
CC
REGEL KREIS
EH
ELECTRIC HEATER
EH
CHAUFAGE ELECTRIQUE
EH
ELEKTROHEIZUNG
-->--
INSTALLER SUPPLIED
-->--
NON FOURNI
-->--
BAUSEITS
I
RHW
IN
FRA RED (WIRED)
IRHW
INFRAROUGE (CABLE)
IRHW
INFRAROT (VEHRDRAHET)
REC
INFRA RED (RECEIVER)
REC
INFRAROUGE (RECEVEUR)
REC
INFRAROT (EMPFANGER)
F
FUSE
F
FUSIBLE
F
SICHERUNG
H
HEAT/HEATER
H
CHAUD / CHAUFFAGE
H
HEIZUNG
HP
HEAT PUMP
HP
POMPE A CHALEUR
HP
WARMEPUMPENAVLAGE
JP
JUMPER / PLUG
JP
PLUG
JP
KURTZSCHLUßBRÜCKE
L
LIVE
L
PHASE
L
PHASE
M1
FAN MOTOR
M1
MOTEUR DE VENTILATEUR
M1
LUFTER MOTOR
M2
PUMP
M2
POMPE
M2
PUMPEN
M3
VANE MOTOR
M3
MOTEUR DE VOLET
M3
LUFTKLAPPENMOTOR
N
NEUTRAL
N
NEUTRE
N
NEUTRALLEITER
PCB1
CONDENSATE CONTROL
PCB1
COMMANDE DES
PCB1
KONDENSAT PUMPREGLER
PE
PROTECTIVE EARTH
PE
MISE À LA TERRE
PE
SCHUTZLEITER
RL
RELAY
RL
RELAIS
RL
RELAIS
RT
REMOTE THERMOSTAT
RT
THERMOSTAT A DISTANCE
RT
FERNBEDIENUNG
RV
REVERSING VALVE
RV
VANNE DE REVERSION
RV
UMKEHRVENTL
S1
CONDENSATE SENSOR
S1
SONDE DES CONDENSATS
S1
KONDENSATFÜHLER
TP1
THERMAL PROTECTOR
TP1
RELAI
S THERMI
QUE
TP1
UBERHITZUNGSSSCHUTZ
TP2
THERMAL FUSE
TP2
FUSIBLE THERMIQUE
TP2
UBERHITZUNGSSICHERUNG
