Marstair CC 875 - Mcu(+); Mhpul(E) Component Identification (Double Fan Unit Shown)

64

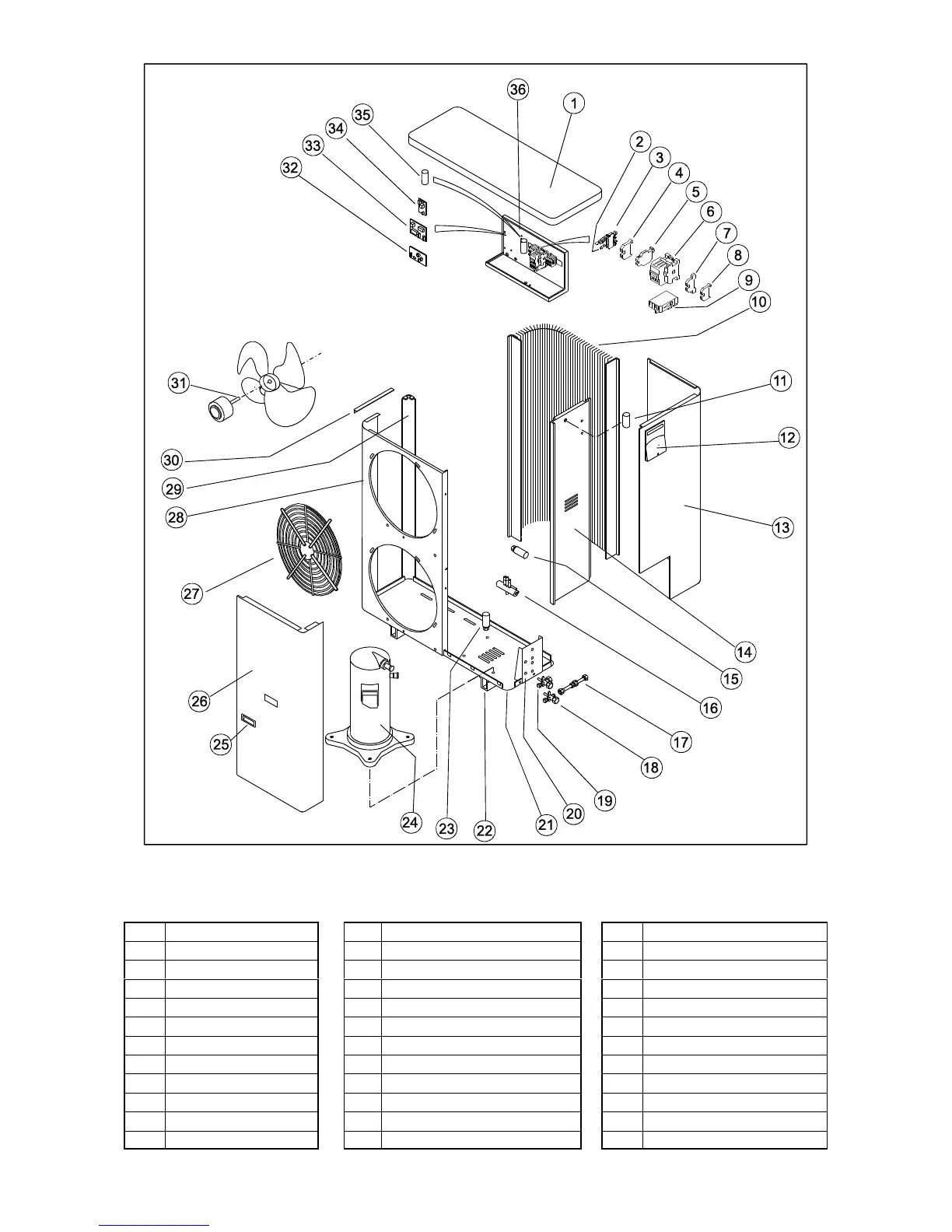

MCU(+) / MHPUL(E) COMPONENT IDENTIFICATION (DOUBLE FAN UNIT SHOWN)
1 Lid 13 Rear access panel 25 Handle
2 Fuse terminal 14 Bulkhead panel 26 Front access panel
3 Fuse 15 HP switch (manual: Accessory) 27 Fan guard
4 Terminal (screw - screw) 16 Reversing valve (MHPUL(E) only 28 Fascia panel
5 Terminal (4 way) 17 Expansion assembly 29 Corner panel
6 Contactor 18 Service valve (expansion) 30 Support bracket
7 Earth terminal 19 Service valve (suction) 31 Fan motor assembly
8 End clamp 20 Valve panel 32 Head pressure control pcb
9 Overload 21 Base 33 Power board (MHPUE)
10 Heat exchanger 22 Mounting foot 34 3 minute timer pcb
11 Fan capacitor 23 LP switch 35 Compressor capacitor (1Ph)
12 Mains terminal cover 24 Compressor 36 Electrics box
