Marstair CC 875 - Dcue Component Identification

65

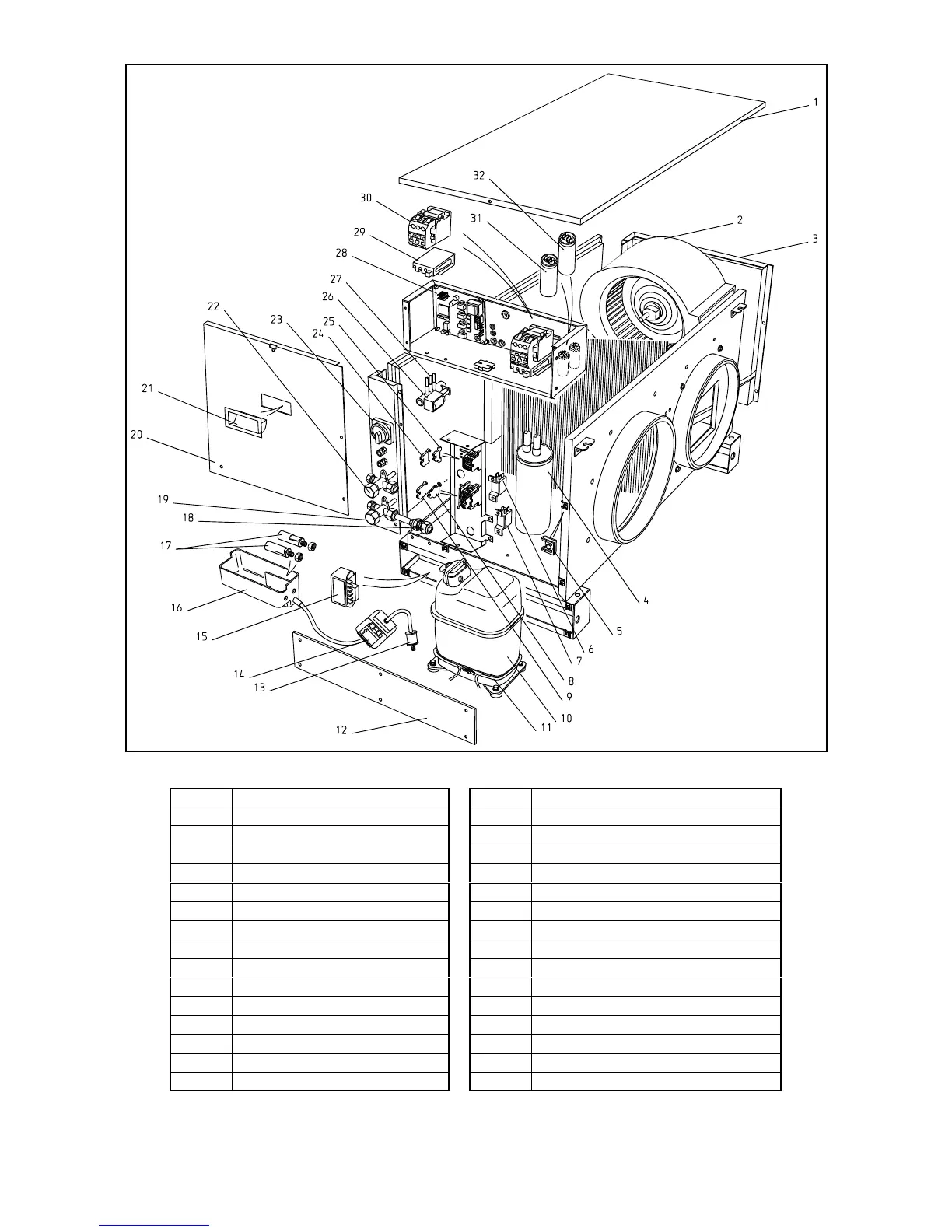

DCUE COMPONENT IDENTIFICATION
1 Lid 17 Float Switches
2 Fan Assembly 18 Expansion Assembly
3 Panel Right Hand Access 19 Service Valve
4 Accumulator 20 Panel Electrics Access
5 Spire Clip 21 Pull Handle
6 Switch LP Auto 22 Service Valve
7 Switch HP Auto 23 Isolator
8 Terminal 4 Way 24 End Clamp
9 Terminal Fused 25 Terminal
10 Compressor 26 Reversing Valve
11 Crankcase Heater 27 Solenoid
12 Cover Sump Housing 28 Power Board
13 Disconnecter 29 Overload (3ph)
14 Condensate Pump 30 Contactor
15 Condensate Pump Control Box 31 Fan Capacitor
16 Condensate Sump 32 Compressor Capacitor (1ph)
