Marstair CC 875 - Exploded View of Fascia and Vane Assembly

63

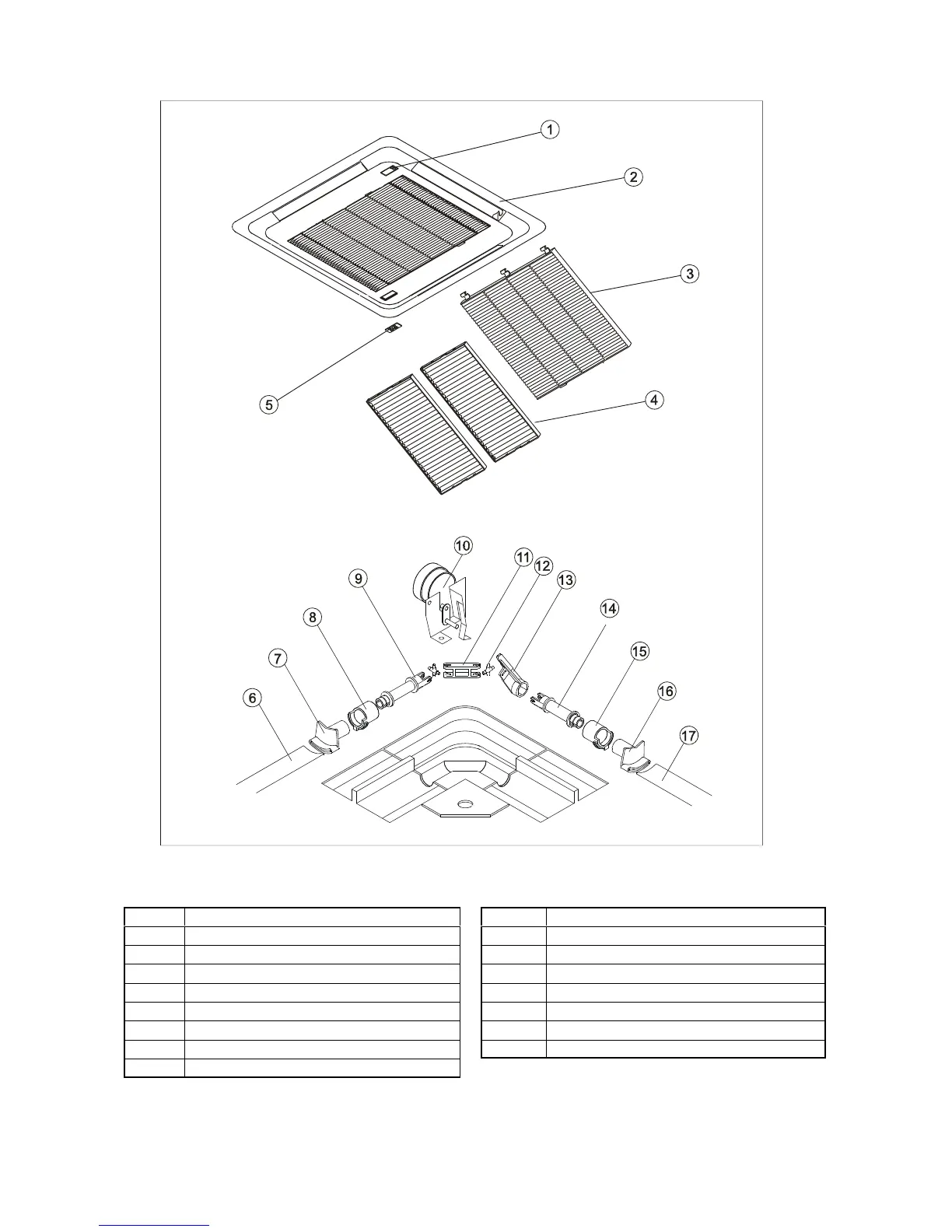

EXPLODED VIEW OF FASCIA AND VANE ASSEMBLY
1 LED cover 10 Vane motor
2 Fascia 11 Double yoke
3 Grille 12 Spider
4 Filter 13 Actuator arm
5 Badge 14 Vane connector
6 Air deflector vane 15 Vane bearing
7 Vane end cap 16 Vane end cap
8 Vane bearing 17 Air deflector vane
9 Vane connector
