Rad-97 Service Manual Chapter 3: Service Procedures
Masimo Corporation 22 www.masimo.com

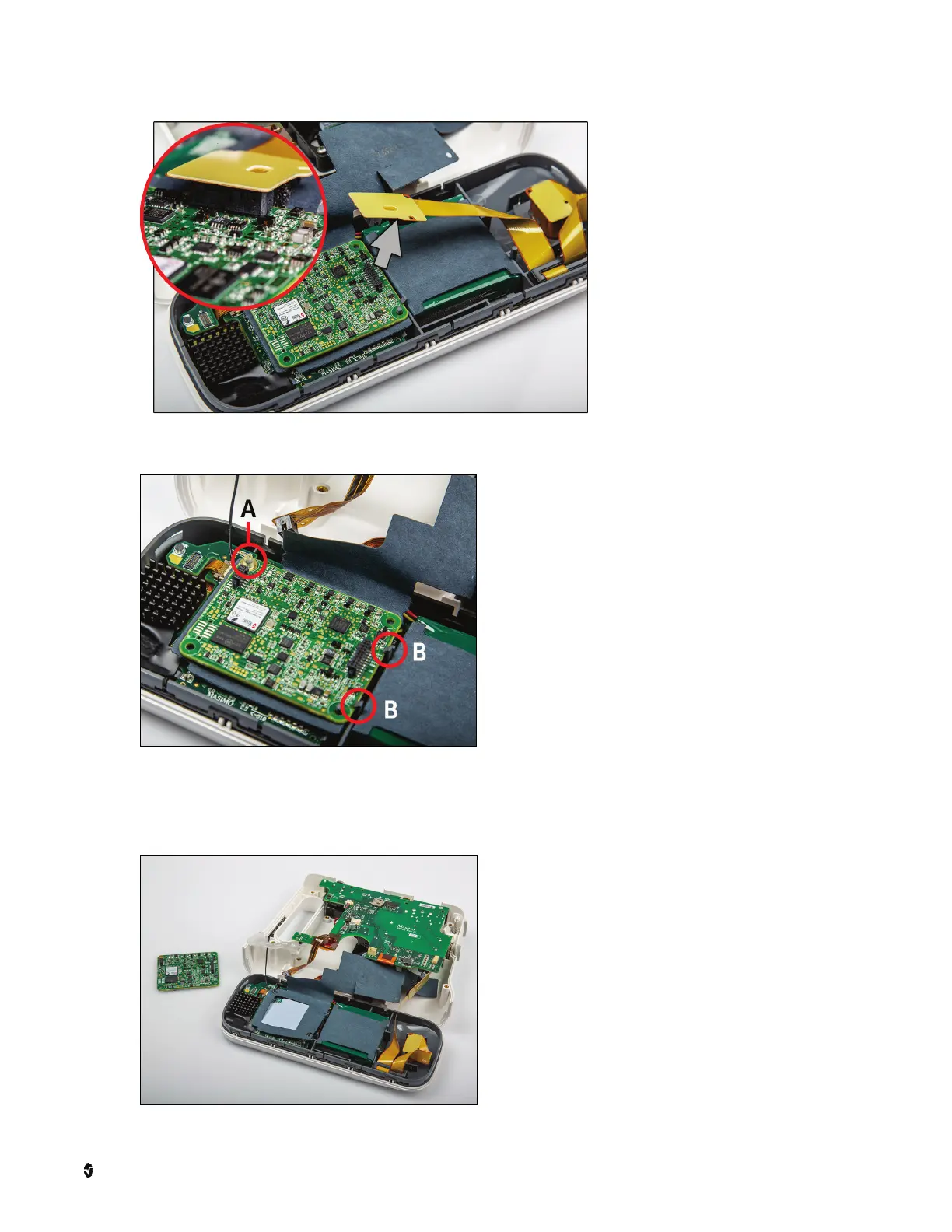

7. Fold back the insulator to expose the ribbon cable as shown. Carefully disconnect the ribbon cable from the circuit board.
8. Remove the rubber retainer from the post (A) and gently pry the circuit board tabs (B) to release the circuit board from the faceplate.
9. Using care to only touch the sides of the circuit board, remove the circuit board from the face plate.
CAUTION: Do not touch the circuit board components to prevent damage.
CAUTION: Place the circuit board on the anti-static surface.
