Rad-97 Service Manual Chapter 3: Service Procedures
Masimo Corporation 23 www.masimo.com

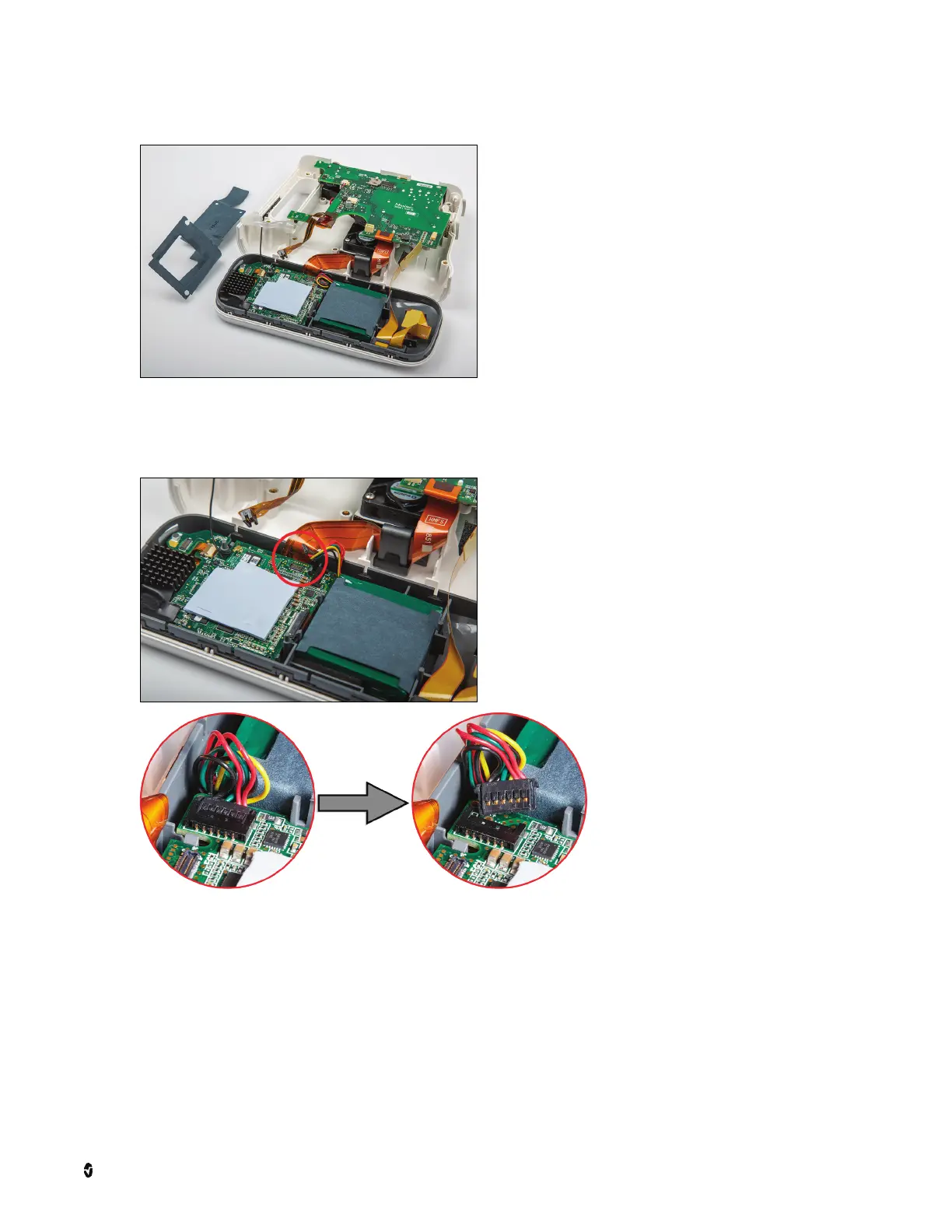

10. Remove the insulator from the Rad-97 faceplate.
CAUTION: The insulator may be partially attached to the circuit board with adhesive, use care when pulling away from the adhesive and removing.
11. Disconnect the battery connector from the circuit board by pulling towards the battery.
• On Rad-97 with NomoLine Capnography, due to the limited working space it may be easier to remove the battery from the front assembly before
disconnecting the cable, by gently pulling the battery out of its location to allow more room to disconnect the cable.
