Rad-97 Service Manual Chapter 3: Service Procedures
Masimo Corporation 24 www.masimo.com

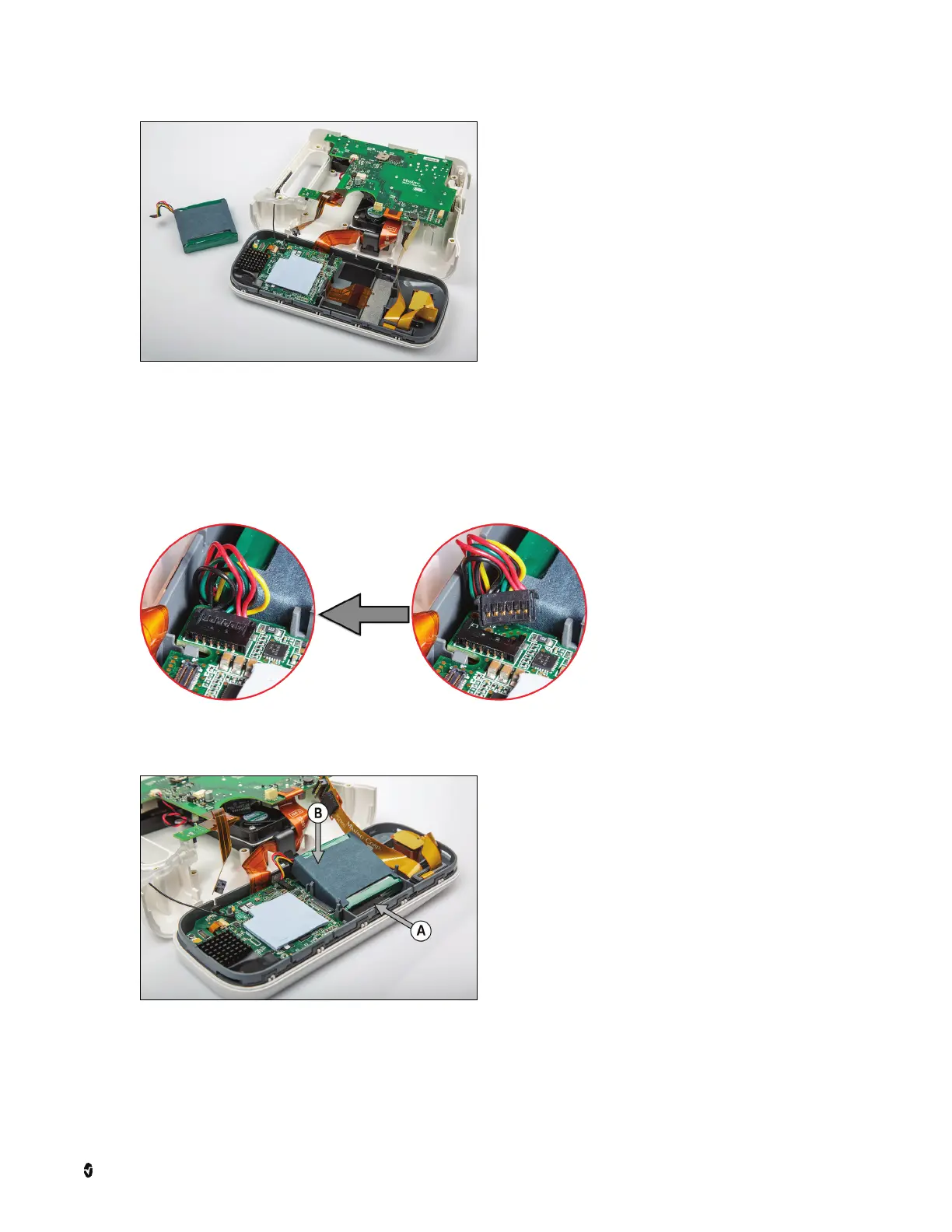

12. On all models, pull up and remove the battery from the Rad-97 faceplate. Note the position of the battery for installation.
13. This completes the battery removal procedure for Rad-97 Version 1.
Battery Installation (Version 1)
1. Prepare the new battery for installation by removing from the packaging.
2. Attach the battery connector.
3. Noting the battery orientation during removal, install the battery into the Rad-97 faceplate at an angle against the foam (A). While applying slight pressure against
the foam with the battery, press the battery into the faceplate (B). The foam secures the battery in the faceplate.
