Rad-97 Service Manual Chapter 3: Service Procedures
Masimo Corporation 25 www.masimo.com

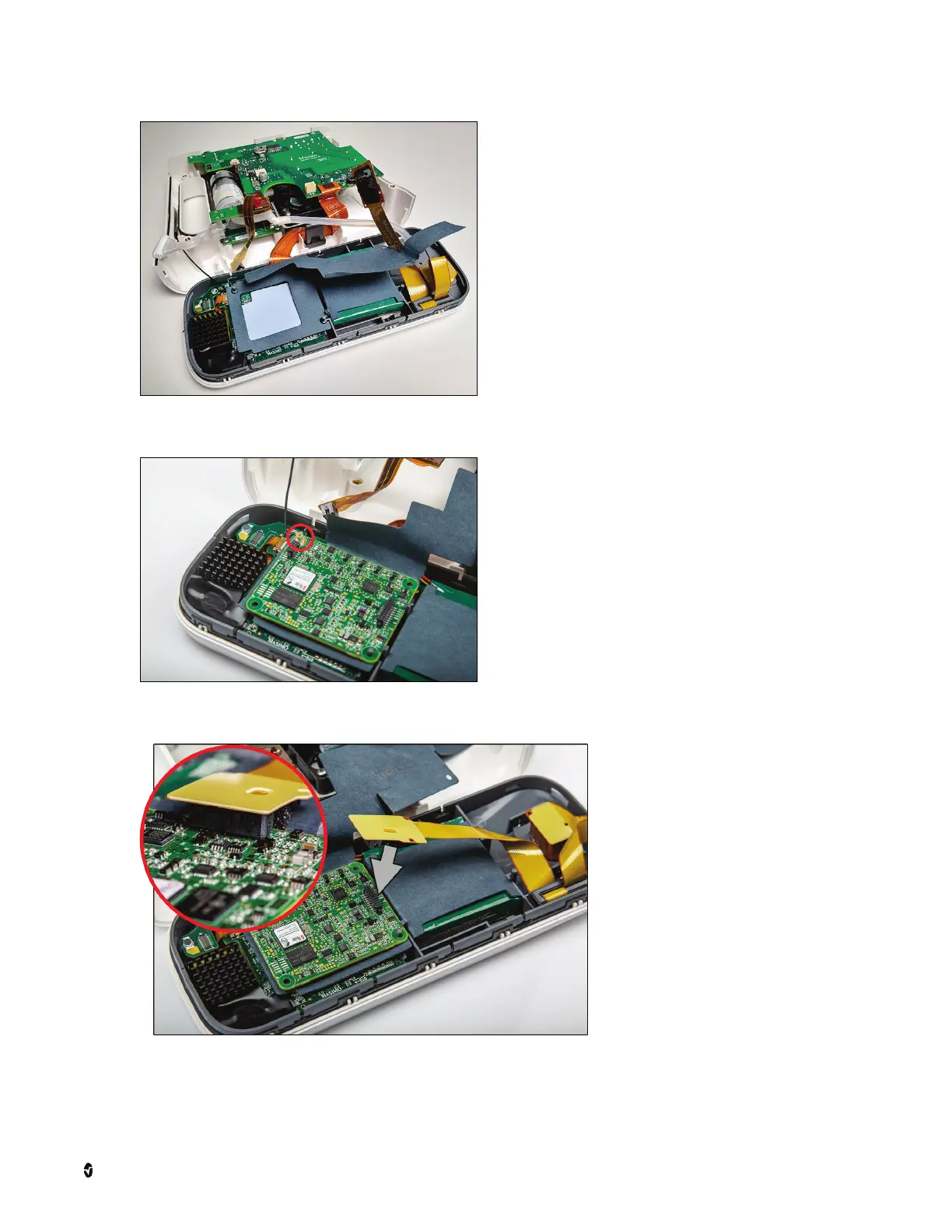

4. Install the insulator sheet to the faceplate.
5. Install the circuit board ensuring the tabs are secure. Install the rubber retainer to the post as shown.
6. While pressing down slightly on the circuit board corner at the rubber retainer area, reconnect the ribbon cable.
