Rad-97 Service Manual Chapter 3: Service Procedures
Masimo Corporation 26 www.masimo.com

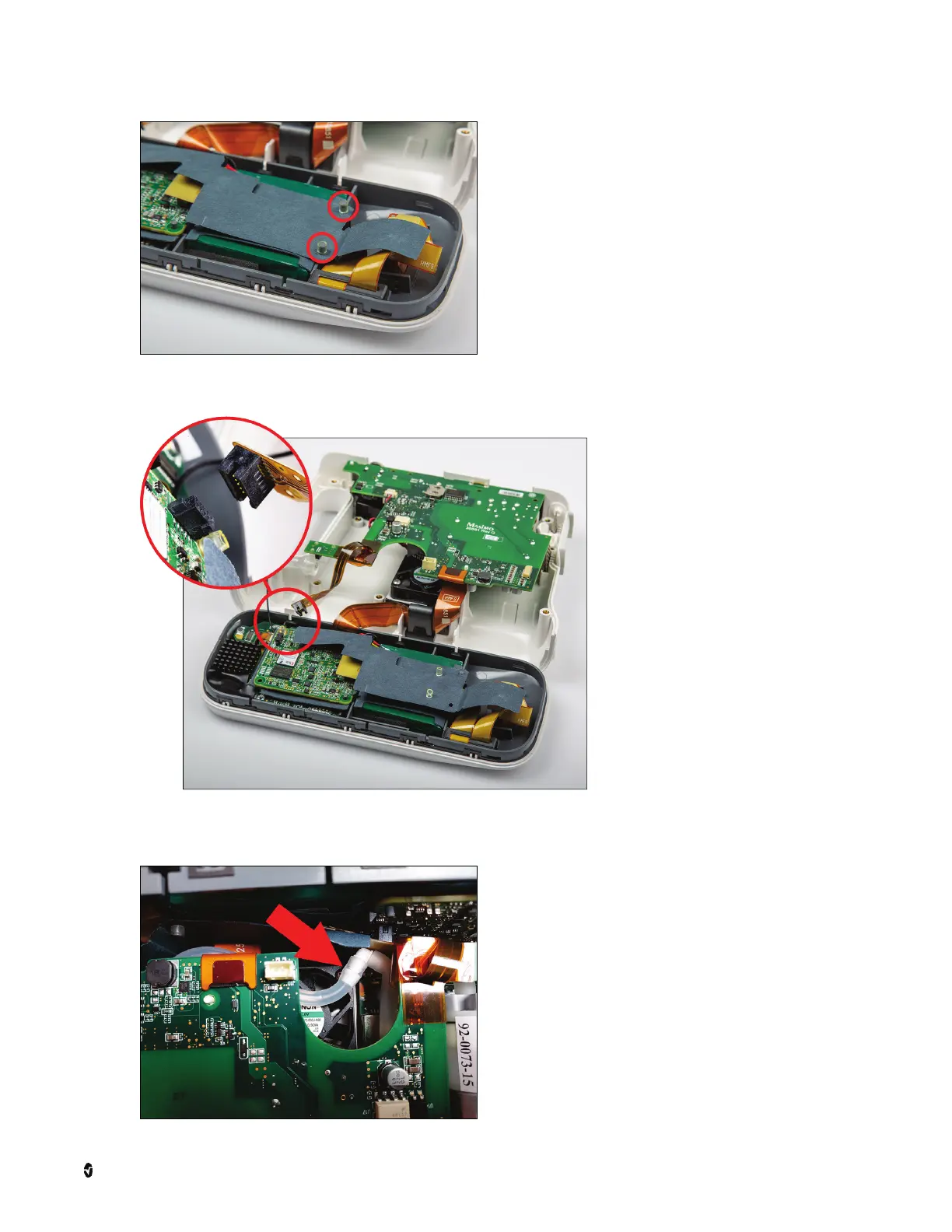

7. Fold the insulator back over and install the rubber retainer(s) on the posts at the bottom of the insulator and faceplate.
8. Reconnect the ribbon cable to the circuit board on the face plate.
9. On Rad-97 with noninvasive blood pressure, route the NIBP hose as shown below the circuit board. Ensure the hose is not pinched, stretched or will not
become restricted or pinched when the case halves are put back together.
