Rad-97 Service Manual Chapter 3: Service Procedures
Masimo Corporation 27 www.masimo.com

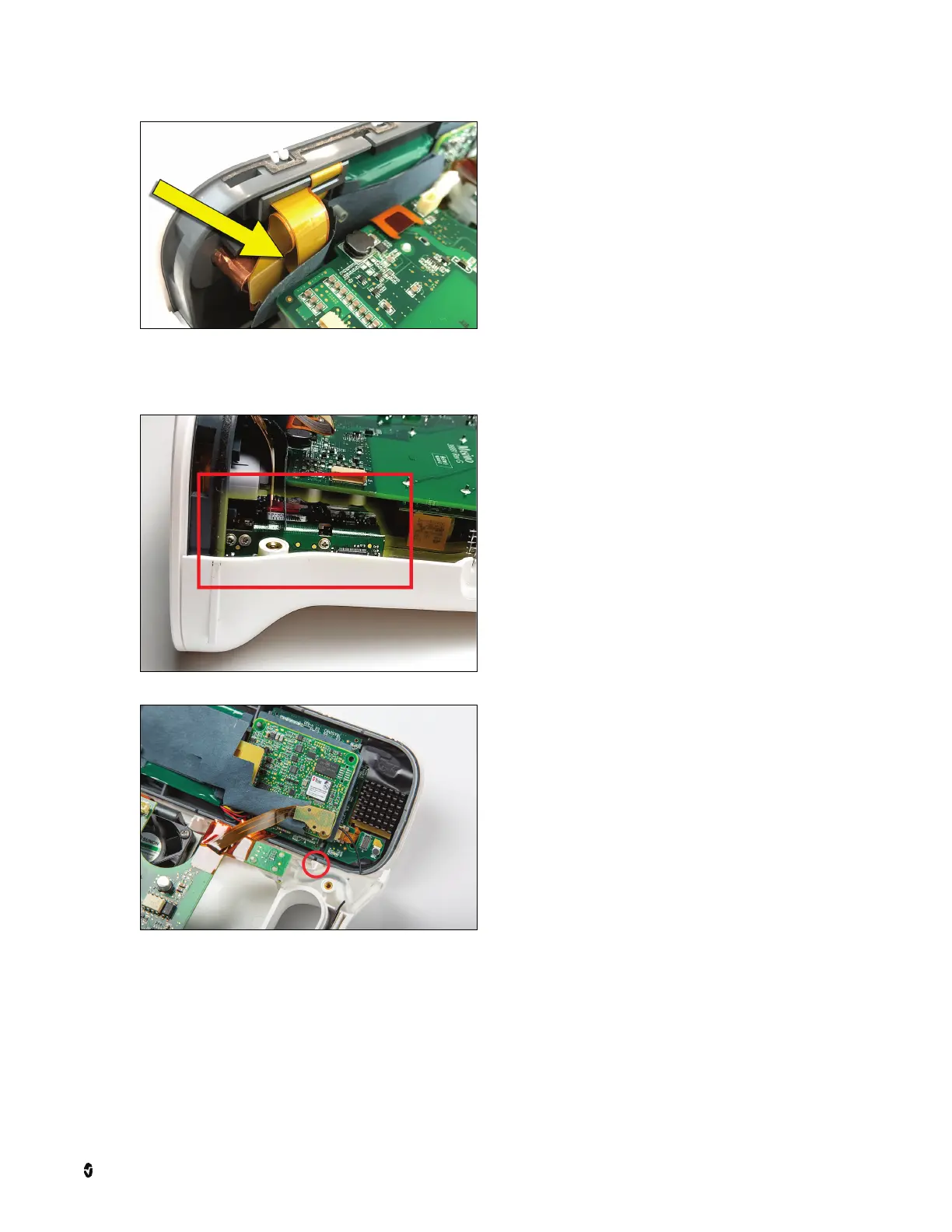

10. If applicable, ensure the ribbon cable is inserted below the insulator as shown.
11. On all models, rotate the faceplate and attach to the case at the T connections as shown.
• On Rad-97 with NomoLine Capnography, slide the capnography module into its place before sliding the cover down.
Slide down to fully engage the T connections in the case.
