Rad-97 Service Manual Chapter 3: Service Procedures
Masimo Corporation 28 www.masimo.com

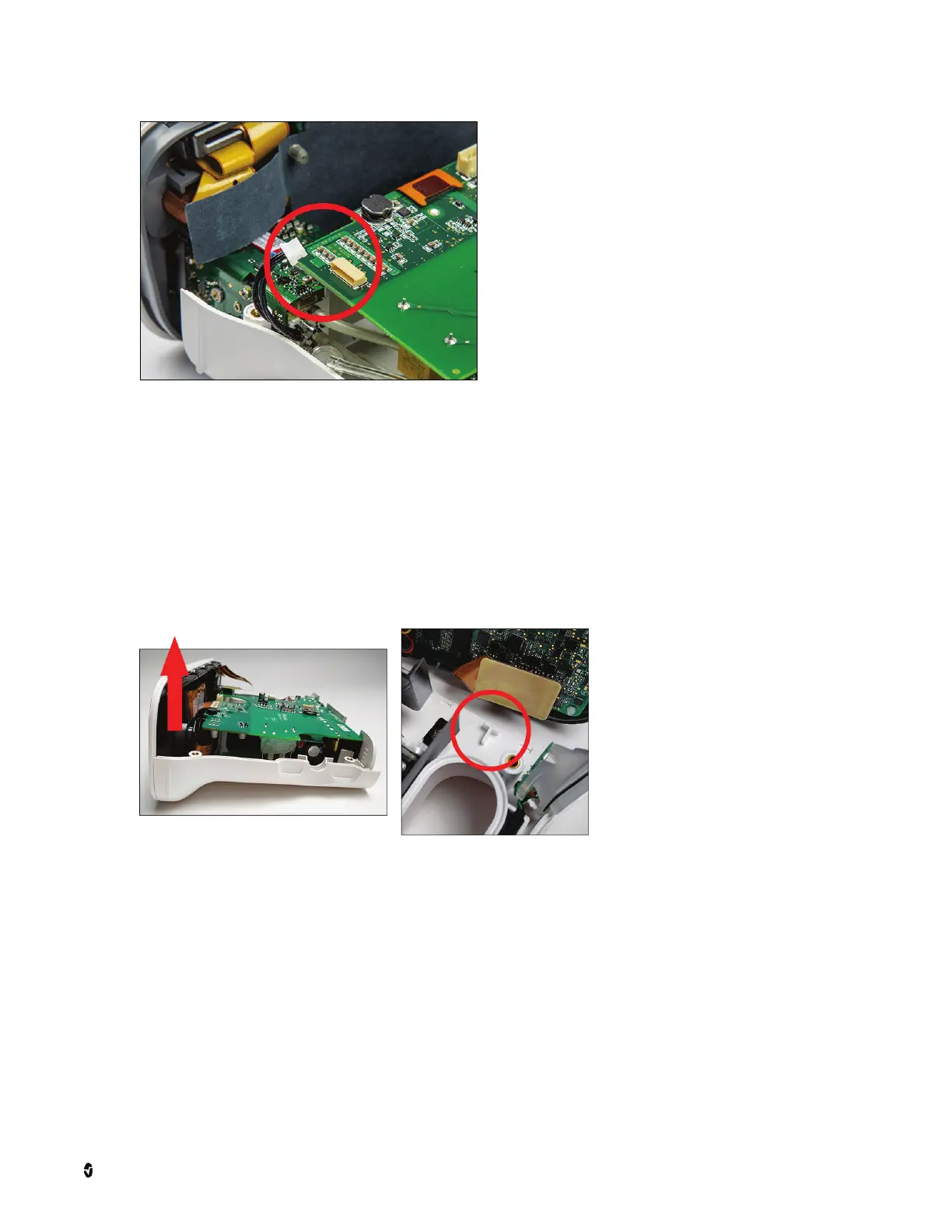

12. On Rad-97 with NomoLine Capnography, connect the capnography module electrical connector.
13. On all models, reassemble the device as instructed in Reassembly on page 17. After performing electrical safety testing and confirming proper operation as
instructed in the reassembly procedure, perform the Gas Gauge Programming procedure. See Gas Gauge Programming on page 34.
Battery Removal (Version 2)
1. Disassemble the Rad-97 as instructed in Disassembly on page 15.
2. Lift the faceplate upwards to disengage from the plastic T connections.
CAUTION: Use care not to pull the bezel off of the faceplate when removing from the case.
• On Rad-97 with noninvasive blood pressure, the NIBP tube can remain connected during the battery replacement procedure.
• On Rad-97 with NomoLine Capnography, the capnography tube can remain connected during the battery replacement procedure.
