Specific ranges of the Analog View are:
Ref.
Feature
Color
Description
1
Normal
Range
White
Area of the display range where an alarm will
not be triggered.
2
Caution
Range
Yellow
Area of the display range that provides a
caution indicator.
3
Alarming
Range
Red
Area of the display range where an alarm will
be triggered.
Some ranges display as quarter circles, others display as half circles. A
quarter circle displays when the value has a physiologic normal level at one
end of the range. A half circle displays when the value has a physiologic
normal level in the middle of the display range.

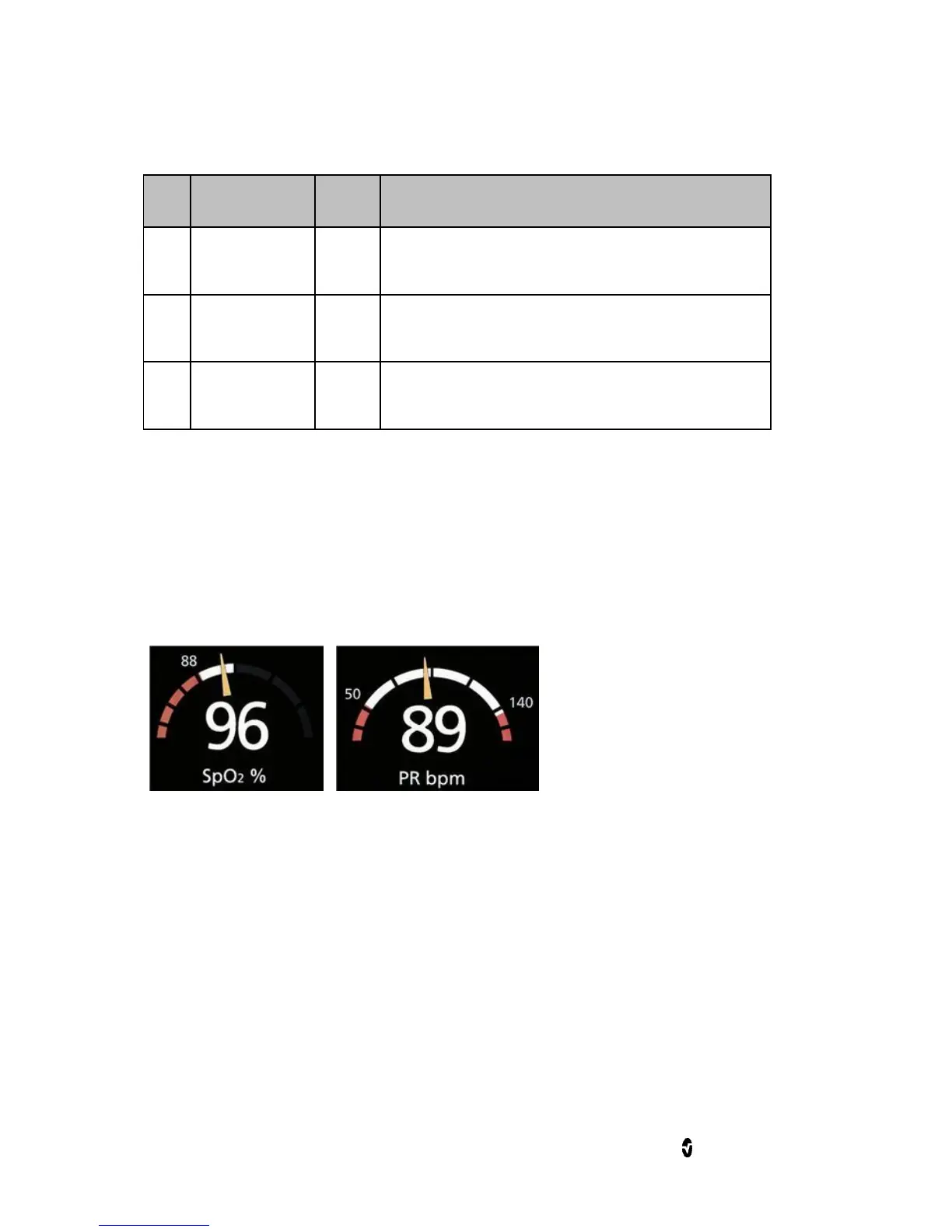

In the example below, the SpO2 gauge is shown as a quarter circle, where
values lower than 88% will trigger an alarm, and the PR gauge is shown as a
half circle, where values below 50 bpm and above 140 bpm will trigger an
alarm.
Quarter Circle
Half Circle
