Matrix G7 Strenght User Manual

97
Lift the aluminum wing and top cover, then take
apart the front and rear shields. Q11 bolts will
not be used anymore for the wing and cover
re-assembly.
Item Description Quantity
B22 Flat Washer (M10) 20
B23 Nut (M10) 10
Z04 Screw (M10 x 75L) 8
Z05 Screw (M10 x 30L) 6
Z06 Lock Washer (M10) 12
Z11 Arc Flat Washer 8
Z12 Screw (M10 x 170L) 2
CHAPTER 5: ASSEMBLY INSTRUCTIONS

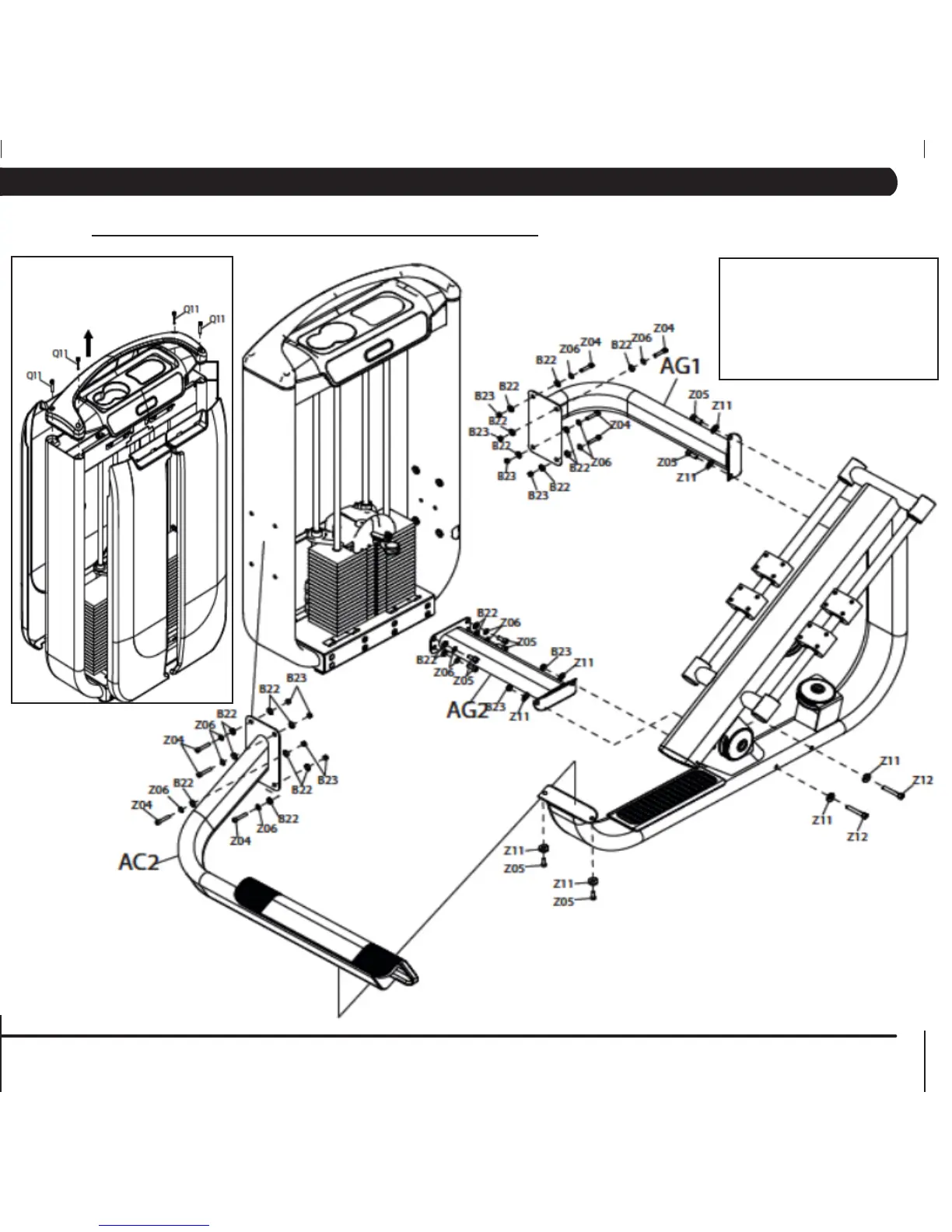

5.12 G7-S57 CALF EXTENSION ASSEMBLY INSTRUCTIONS - CONTINUED
STEP 1
