5.1 G7-S12 PECTORAL FLY ASSEMBLY INSTRUCTIONS
CHAPTER 5: ASSEMBLY INSTRUCTIONS
UNPACKING THE G7-S12 PECTORAL FLY
Thank you for purchasing the Matrix Fitness Systems Pectoral Fly. This machine is an EN957-1 and E9576-2 compliant Class S product. Your
Matrix Pectoral Fly is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the machine. Prior
to assembly, confirm all the components by matching them with the exploded diagrams. The weight stack is shipped in separate packaging to
reduce the weight of this box. Carefully unpack the unit from this box and dispose of the packing materials in accordance with your local laws.
CAUTION
The weight of the Matrix Fitness Systems Pectoral Fly is 214 lbs (97 kg) not including the weight stack. The weight stack tower is packaged
completely assembled for ease of installation; use extra caution when removing the unit from its pallet during assembly. The weight stack for
this machine is 378 lbs (174 kg). To avoid injury to yourself and prevent damage to the frame components, be sure to have proper assistance
removing the frame pieces from this box. Be sure to install the equipment on a stable base, properly level the machine and leave at least two
feet of clearance to enter and exit the machine. Maximum user weight for this machine is 300 lbs.

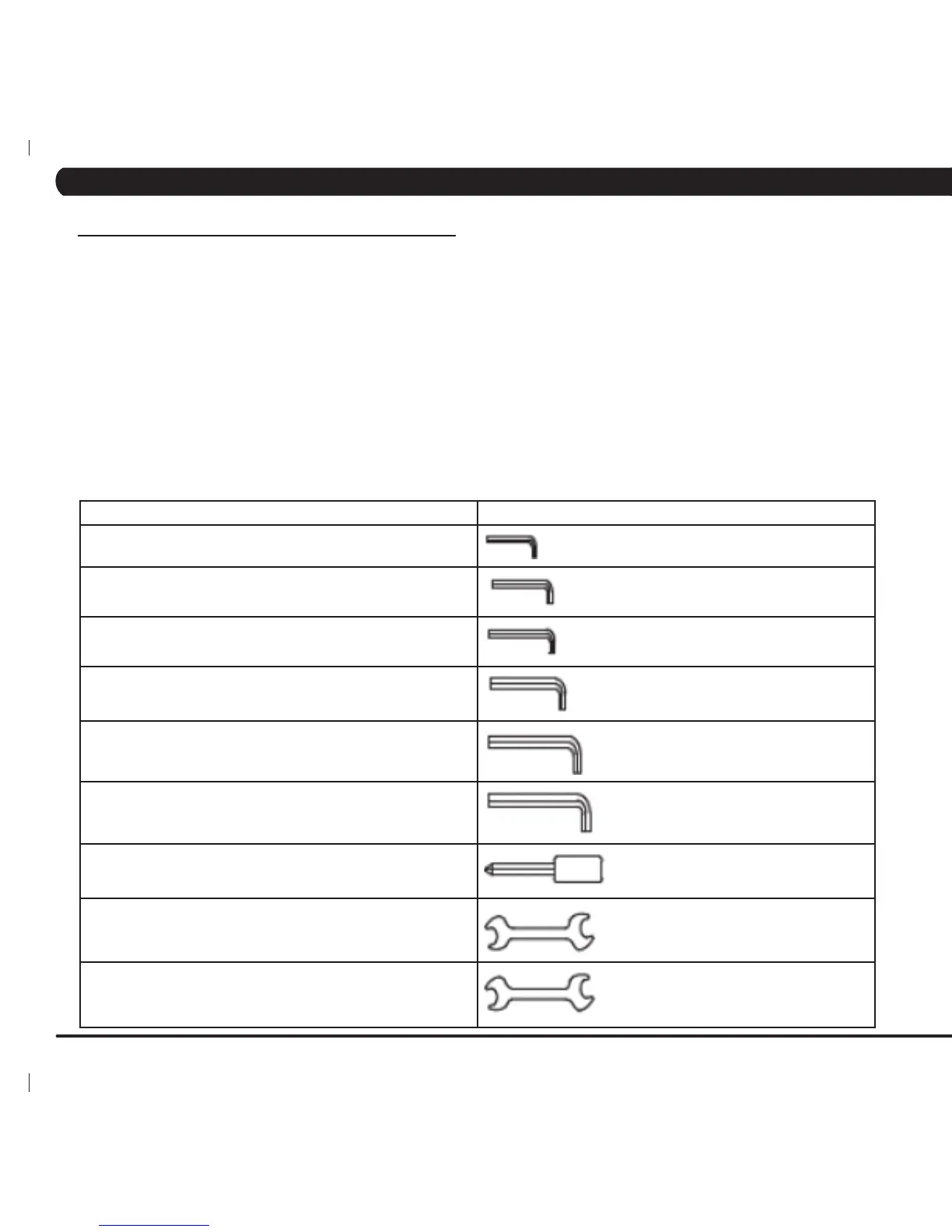

INCLUDED TOOLS REQUIRED FOR ASSEMBLY
3 mm L-Shaped Allen Wrench
4 mm L-Shaped Allen Wrench
5 mm L-Shaped Allen Wrench
6 mm L-Shaped Allen Wrench
8 mm L-Shaped Allen Wrench
10 mm L-Shaped Allen Wrench
Phillips Screwdriver
8 mm Open-End Wrench
17 mm Open-End Wrench
