REP COUNTER INFORMATION
TO SEE THE ACCUMULATED REPS OR HOURS:
1) Hold a strong magnet to the outside of the rep counter face plate over the clock for 5 seconds to activate Service Mode. If this is not
working, a stronger magnet may be needed.
2) The rep counter will read r0 in the left window and the first 3 digits of the total reps in the right window (Figure A), record this information.
3) After 3 seconds, the rep counter will switch to r1 and the next 3 digits of the total reps are shown in the right window (Figure B). Record this
information.
4) If there are further digits in the total reps, the rep counter will switch to r2. Record this information.
5) Combine the r values to determine the total reps. Using Figures A & B below, the unit would have 237,145 total reps.
6) Once the complete number of total reps have been displayed, the rep counter will flash c0 and the first 3 digits of the accrued hours of use
are shown (Figure C).
7) After 3 seconds, if there are more digits in the accrued hours, the rep counter will switch to c1 (Figure D).
8) Combine the c values to determine the accrued hours. Using Figures C & D below, the unit would have 1,209 accrued hours.
9) Remove the magnet from the rep counter to reset to normal function.
TOTAL RESET
1) To reset all data on the rep counter, three magnets must be simultaneously held to all 3 reed switches (2 in the stack and one in the
faceplate) for 5 seconds. This clears all recorded data and cannot be recovered.
LOW BATTERY
1) When the rep counter battery gets low, the display will read Lo bAt (Figure E). At this point, the battery needs to be replaced. This WILL
NOT erase the Service Mode data.

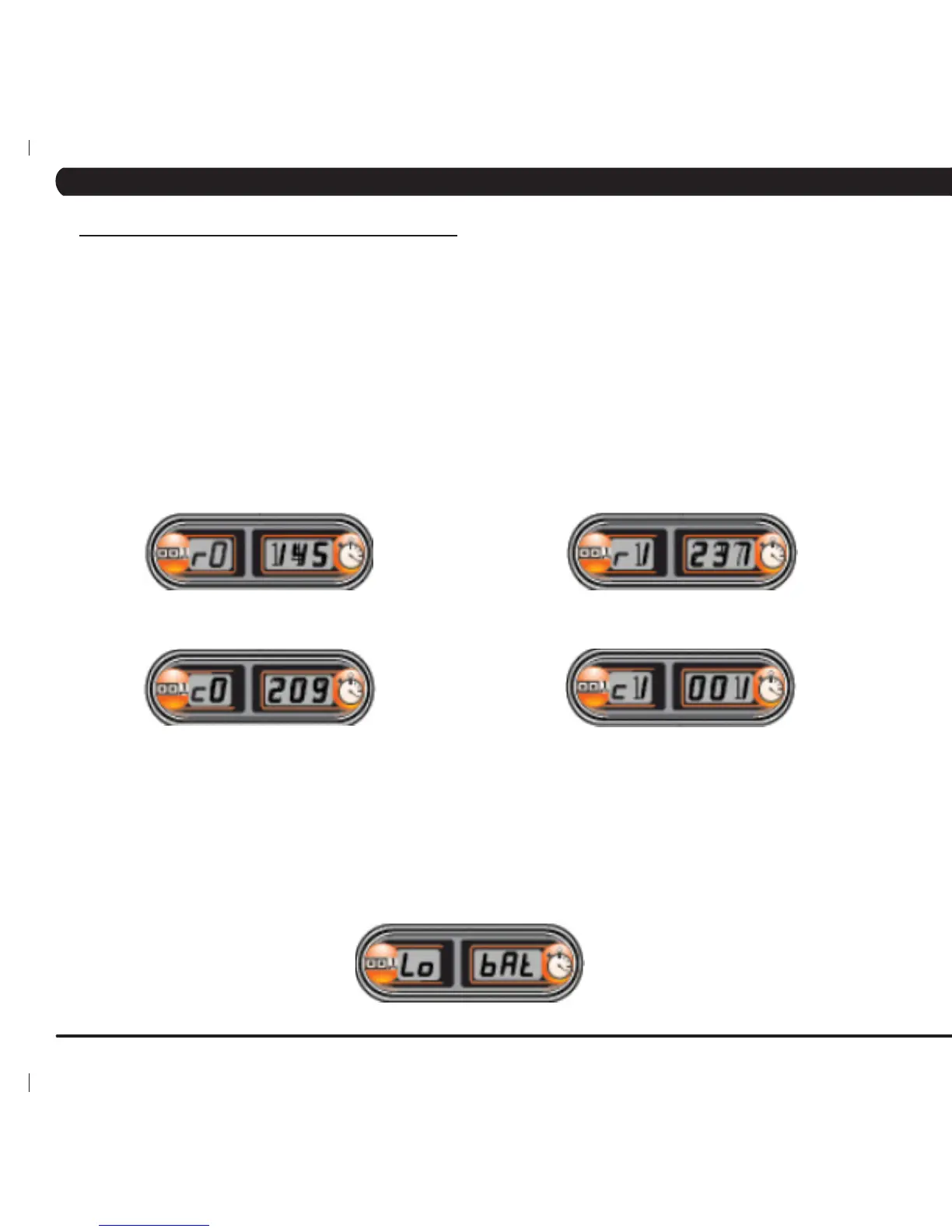

FIGURE A FIGURE B
FIGURE C
FIGURE D
FIGURE E
3.2 REP COUNTER INFORMATION
CHAPTER 3: PREVENTATIVE MAINTENANCE
