Matrix G7 Strenght User Manual

163
7.6 REPETITION SENSOR REPLACEMENT
CHAPTER 7: PART REPLACEMENT INSTRUCTIONS

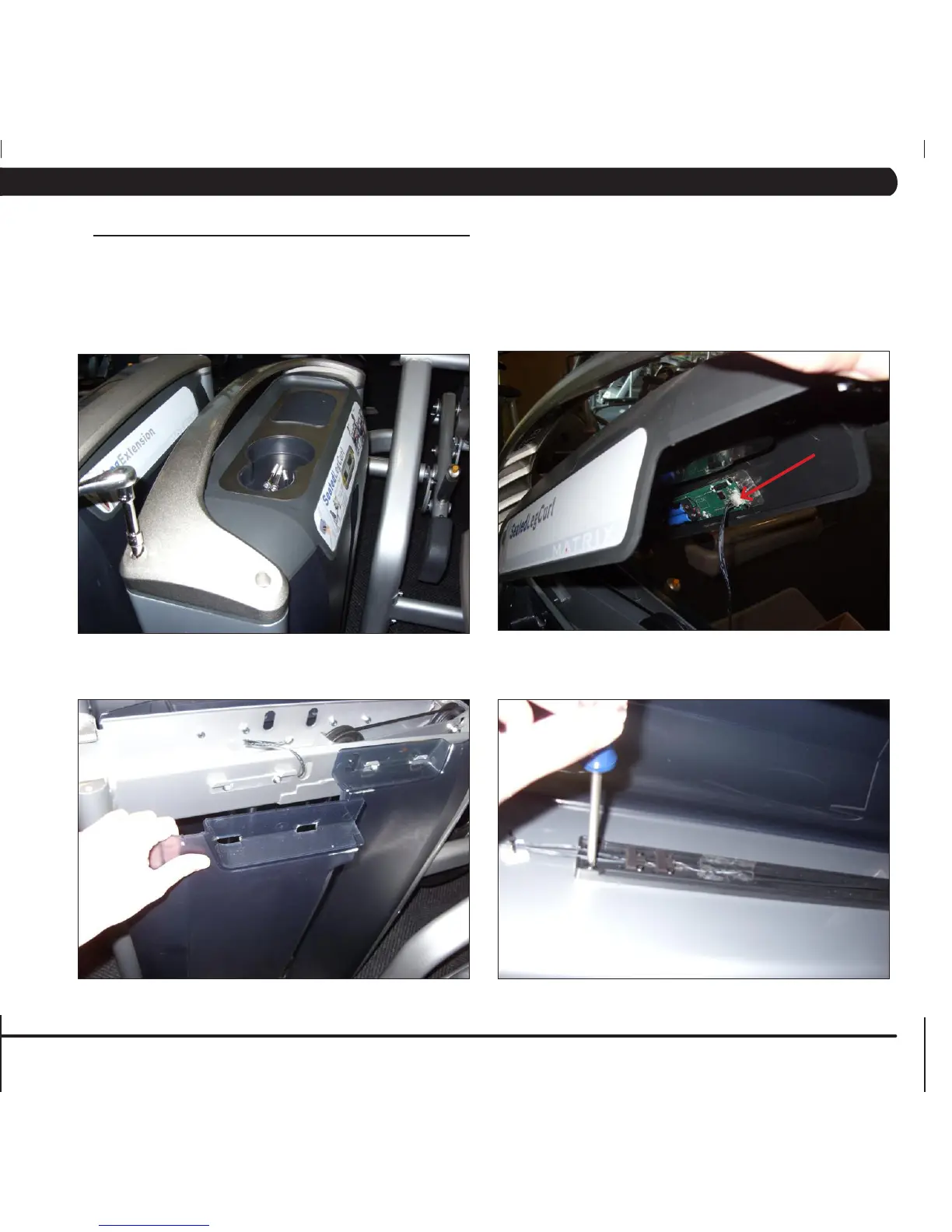

1) Remove the 4 screws going through the aluminum wing into the top cover of the weight stack (Figure A).
2) Disconnect the repetition counter wire and remove the aluminum wing and top cover from the weight stack (Figure B).
3) Remove the front weight stack covers from the weight stack frame (Figure C).
4) Remove the 4 screws holding the repetition sensors to the weight stack frame (Figure D).
5) Remove the tie straps holding the repetition sensor wires in place, and remove the repetition sensors.
6) Reverse Steps 1-5 to install new repetition sensors. NOTE: Use the chart in Section 6.1 if unsure about sensor positions.
FIGURE A
FIGURE C
FIGURE B
FIGURE D
