Matrix G7 Strenght User Manual

173

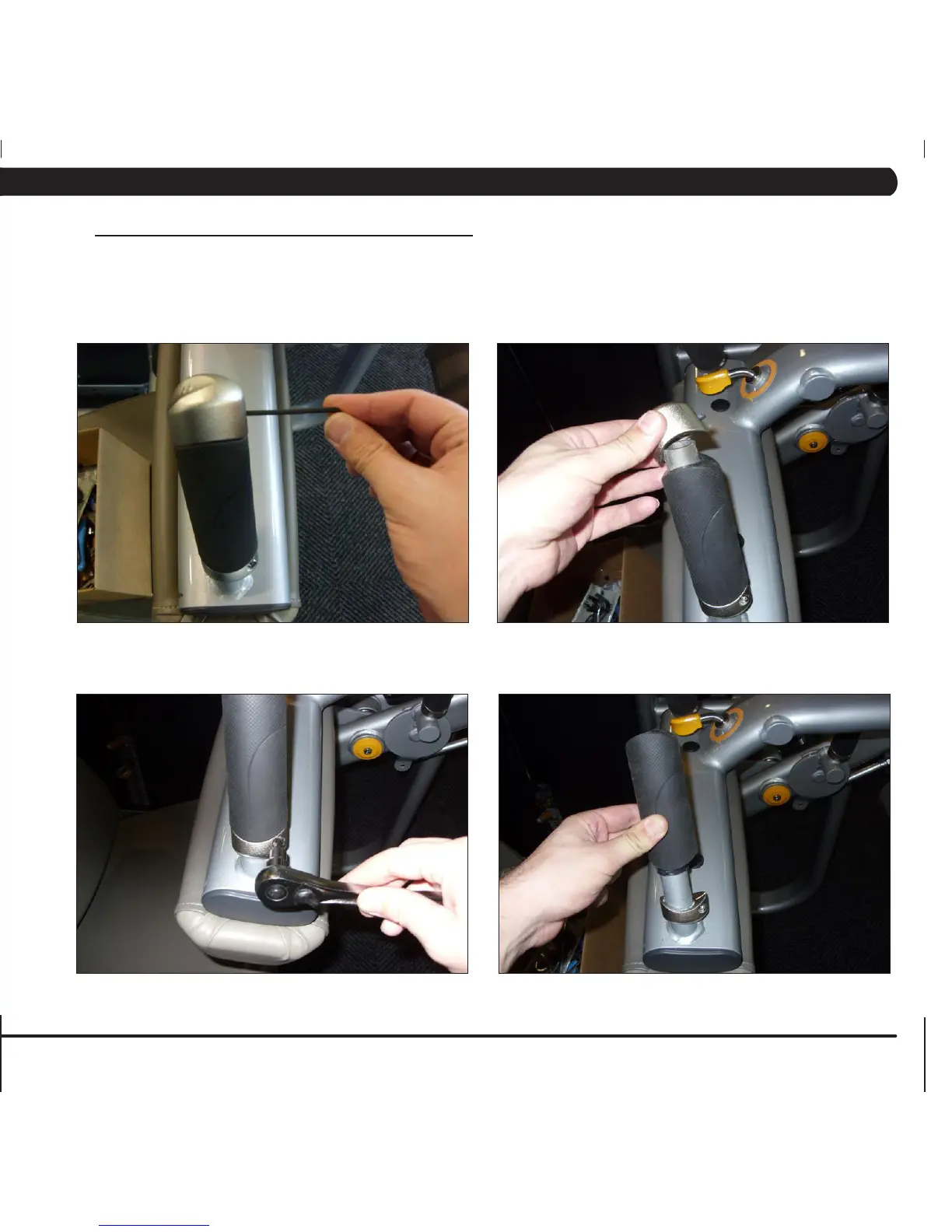

7.13 HAND GRIP REPLACEMENT
CHAPTER 7: PART REPLACEMENT INSTRUCTIONS
1) Remove the 2 set screws holding the hand grip end cap to the frame (Figure A).
2) Remove the hand grip end cap (Figure B).
3) Loosen the screw holding together the hand grip bottom end cap (Figure C).
4) Pull and remove the rubber hand grip and bottom end cap (Figure D).
5) Reverse Steps 1-4 to install a new hand grip.
FIGURE A
FIGURE C FIGURE D
FIGURE B
