CHAPTER 7: PART REPLACEMENT INSTRUCTIONS

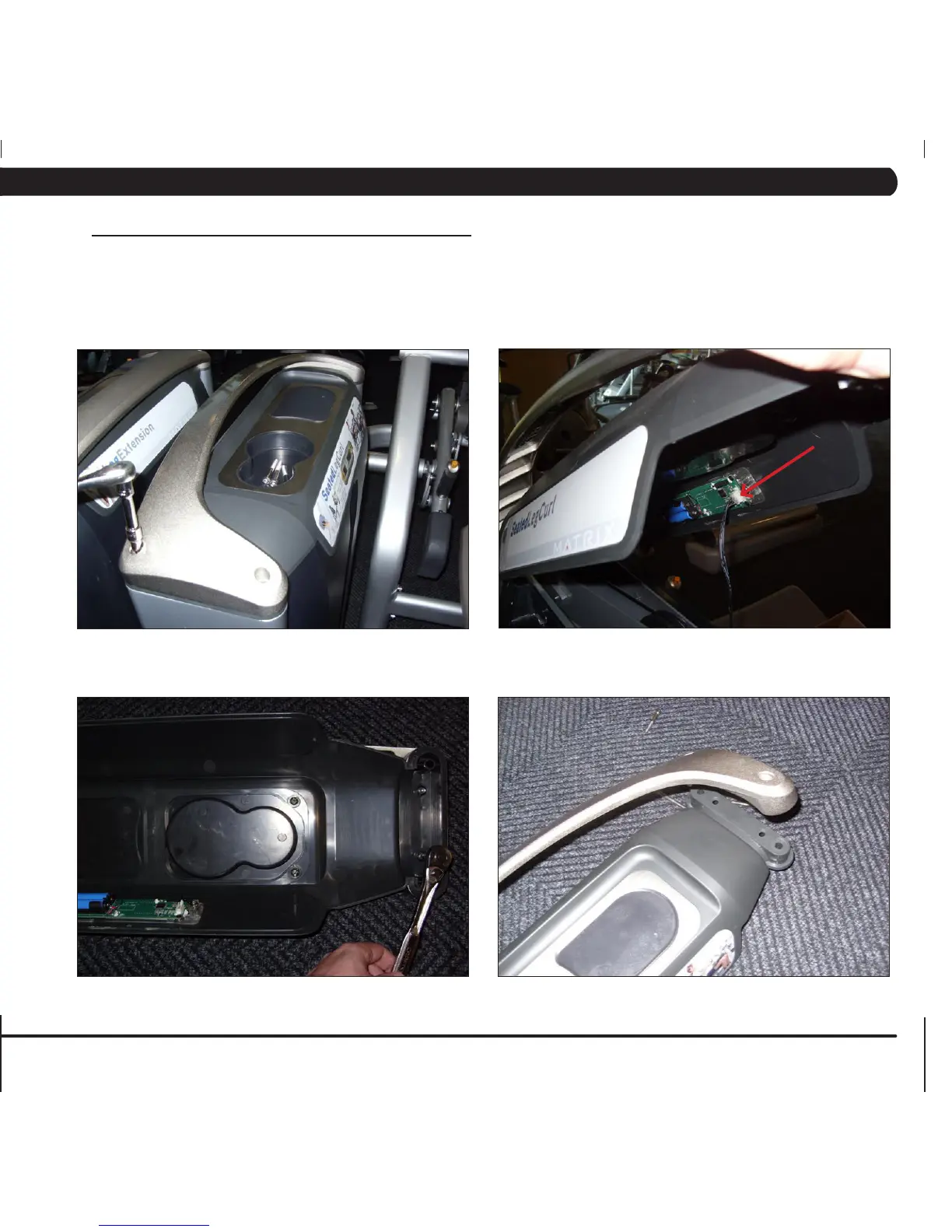

1) Remove the 4 screws going through the aluminum wing into the top cover of the weight stack (Figure A).
2) Disconnect the repetition counter wire and remove the aluminum wing and top cover from the weight stack (Figure B).
3) Remove the 4 screws attaching the aluminum wing to the top cover (Figure C).
4) Remove the aluminum wing from the top cover (Figure D).
5) Reverse Steps 1-4 to install a new aluminum wing.
7.2 ALUMINUM WING REPLACEMENT
FIGURE A
FIGURE B
FIGURE C FIGURE D
