7.9 WEIGHT STACK PULLEY ASSEMBLY REPLACEMENT
CHAPTER 7: PART REPLACEMENT INSTRUCTIONS

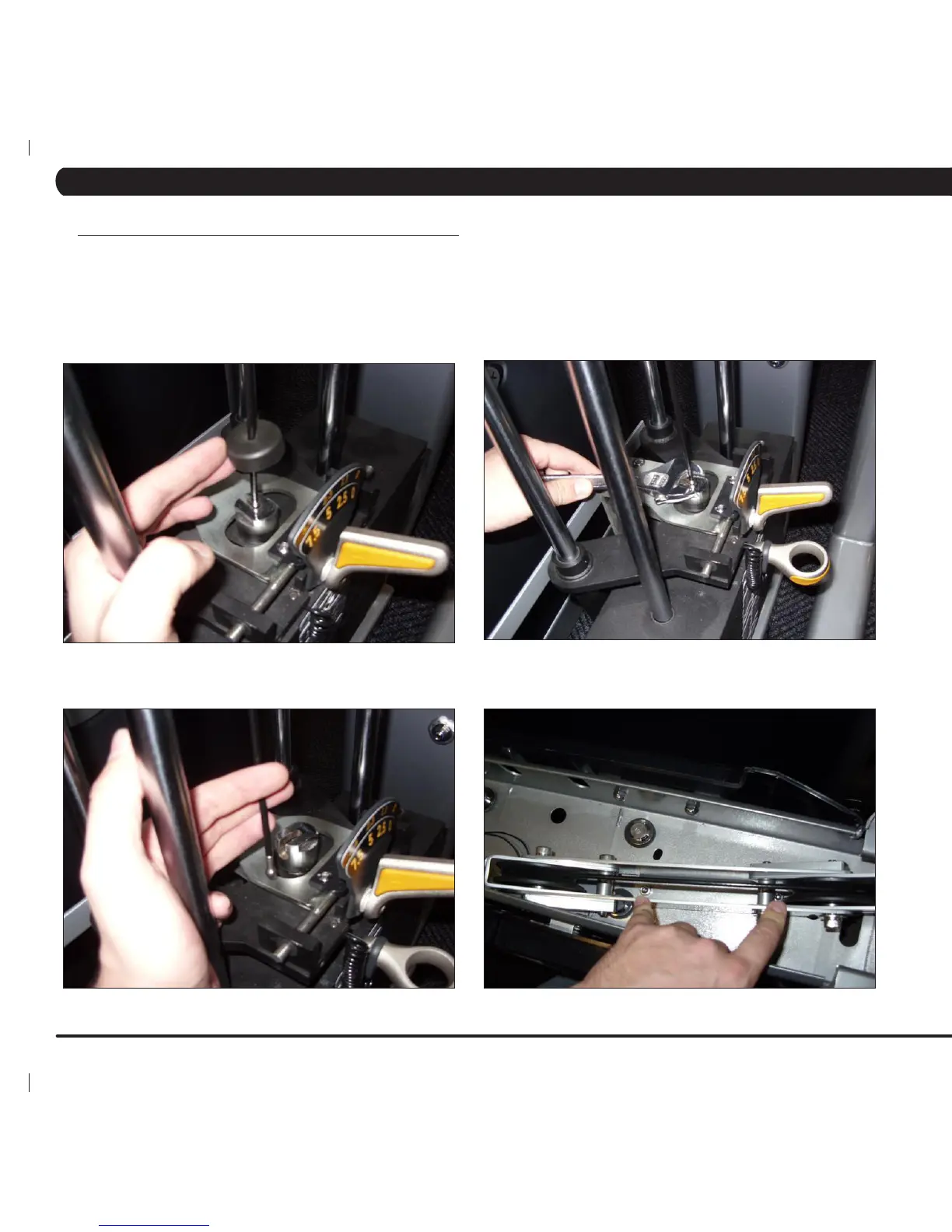

1) Remove the weight stack shrouds as outlined in Section 7.5.
2) Remove the 4 screws holding on the clear plastic cover over the incremental weight pin and remove it (see Section 7.8 for pictures).
3) Move the rubber cover on the cable by pulling up on it (Figure A).
4) Turn the cable retainer counter clockwise until there is enough slack in the cable to remove it (Figures B & C).
5) Remove the 2 screws holding down the weight stack pulley assembly and remove it (Figure D).
FIGURE A
FIGURE C
FIGURE B
FIGURE D
