CHAPTER 5: ASSEMBLY INSTRUCTIONS
UNPACKING THE G7-S72 SEATED LEG CURL
Thank you for purchasing the Matrix Fitness Systems Seated Leg Curl. This machine is an EN957-1 and E9576-2 compliant Class S
product. Your Matrix Seated Leg Curl is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging
of the machine. Prior to assembly, confirm all the components by matching them with the exploded diagrams. The weight stack is shipped
in separate packaging to reduce the weight of this box. Carefully unpack the unit from this box and dispose of the packing materials in
accordance with your local laws.
CAUTION
The weight of the Matrix Fitness Systems Seated Leg Curl is 664 lbs (302 kg) not including the weight stack. The weight stack tower is
packaged completely assembled for ease of installation; use extra caution when removing the unit from its pallet during assembly. The weight
stack for this machine is 247 lbs (112 kg). To avoid injury to yourself and prevent damage to the frame components, be sure to have proper
assistance removing the frame pieces from this box. Be sure to install the equipment on a stable base, properly level the machine and leave at
least two feet of clearance to enter and exit the machine. Maximum user weight for this machine is 300 lbs.

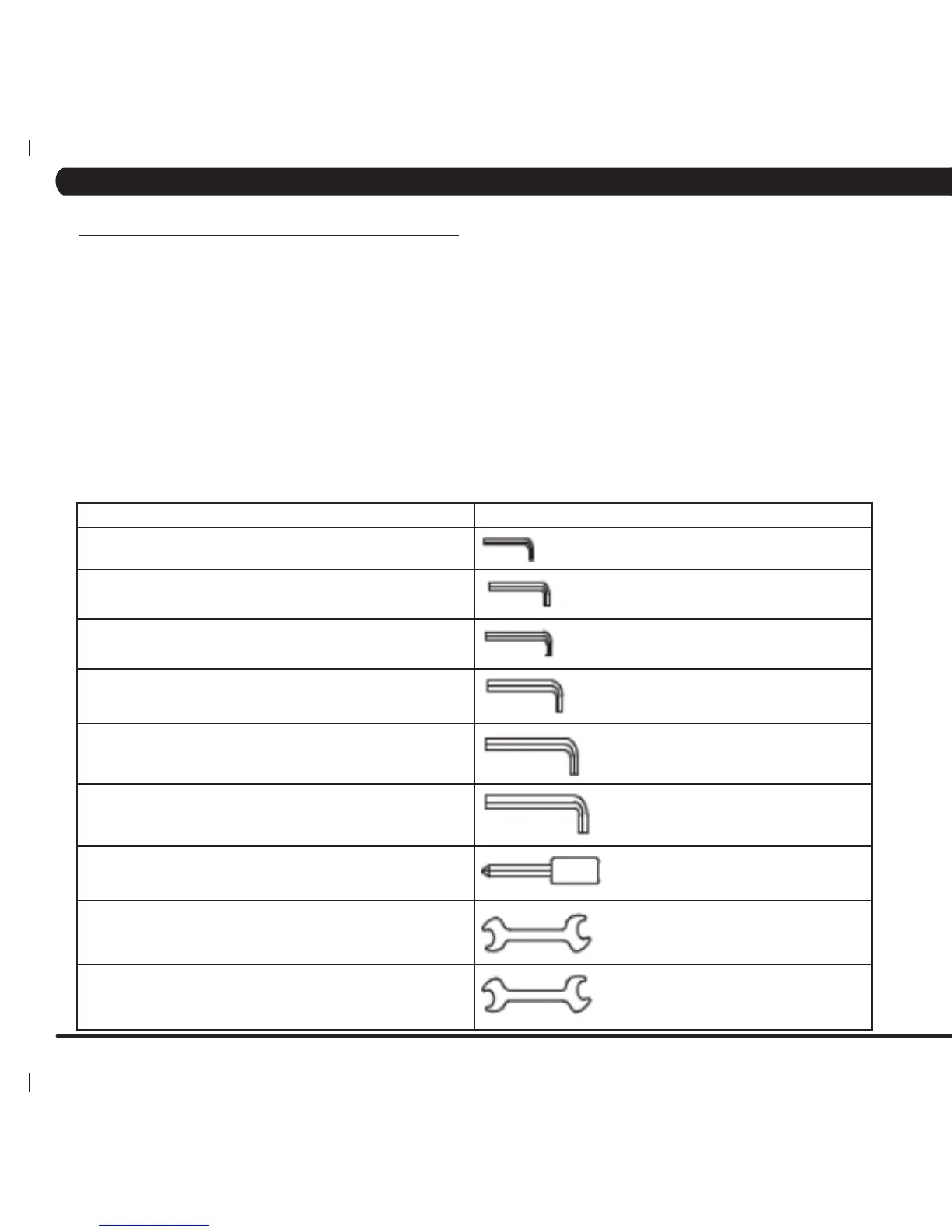

INCLUDED TOOLS REQUIRED FOR ASSEMBLY
3 mm L-Shaped Allen Wrench
4 mm L-Shaped Allen Wrench
5 mm L-Shaped Allen Wrench
6 mm L-Shaped Allen Wrench
8 mm L-Shaped Allen Wrench
10 mm L-Shaped Allen Wrench
Phillips Screwdriver
8 mm Open-End Wrench
17 mm Open-End Wrench
