7.7 INCREMENTAL WEIGHT PIN REPLACEMENT
CHAPTER 7: PART REPLACEMENT INSTRUCTIONS
1) Remove the weight stack shrouds as outlined in Section 7.5.

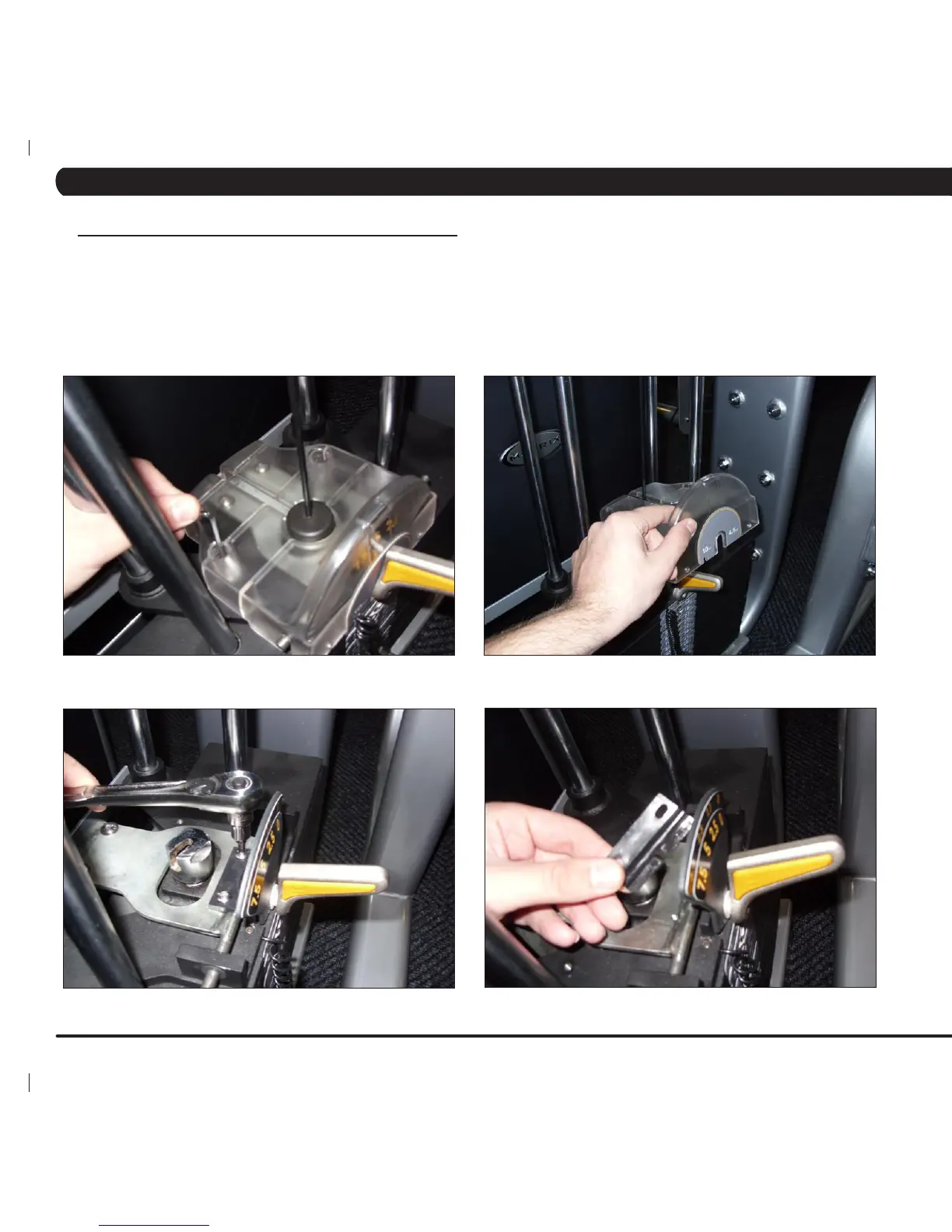

2) Remove the 4 screws holding on the clear plastic cover over the incremental weight pin and remove it (Figures A & B).
3) Remove the 2 screws holding on the reaction block and remove it (Figures C & D).
4) Remove the snap ring holding the incremental weight pin to the top weight plate and remove the incremental weight pin (Figures E, F, & G).
5) Reverse Steps 1-4 to install a new incremental weight pin.
FIGURE A
FIGURE C
FIGURE B
FIGURE D
