Matrix G7 Strenght User Manual

162

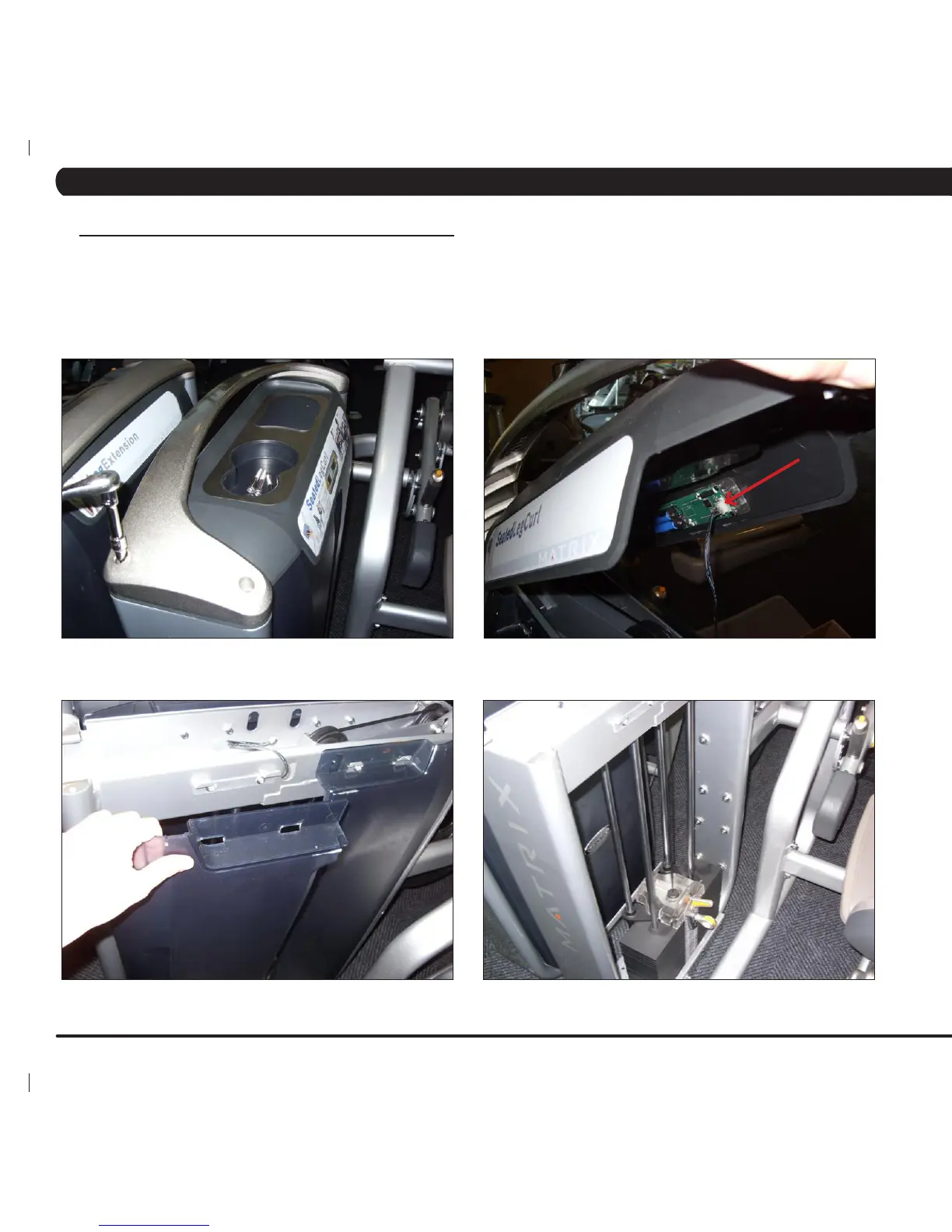

7.5 WEIGHT STACK SHROUD REPLACEMENT
CHAPTER 7: PART REPLACEMENT INSTRUCTIONS
1) Remove the 4 screws going through the aluminum wing into the top cover of the weight stack (Figure A).
2) Disconnect the repetition counter wire and remove the aluminum wing and top cover from the weight stack (Figure B).
3) Pull up on each weight stack shroud and remove it from the weight stack frame (Figure C).
4) Figure D shows the weight stack with all 3 weight stack shrouds removed.
5) Reverse Steps 1-3 to install a new weight stack shroud.
FIGURE A FIGURE B
FIGURE C FIGURE D
