25

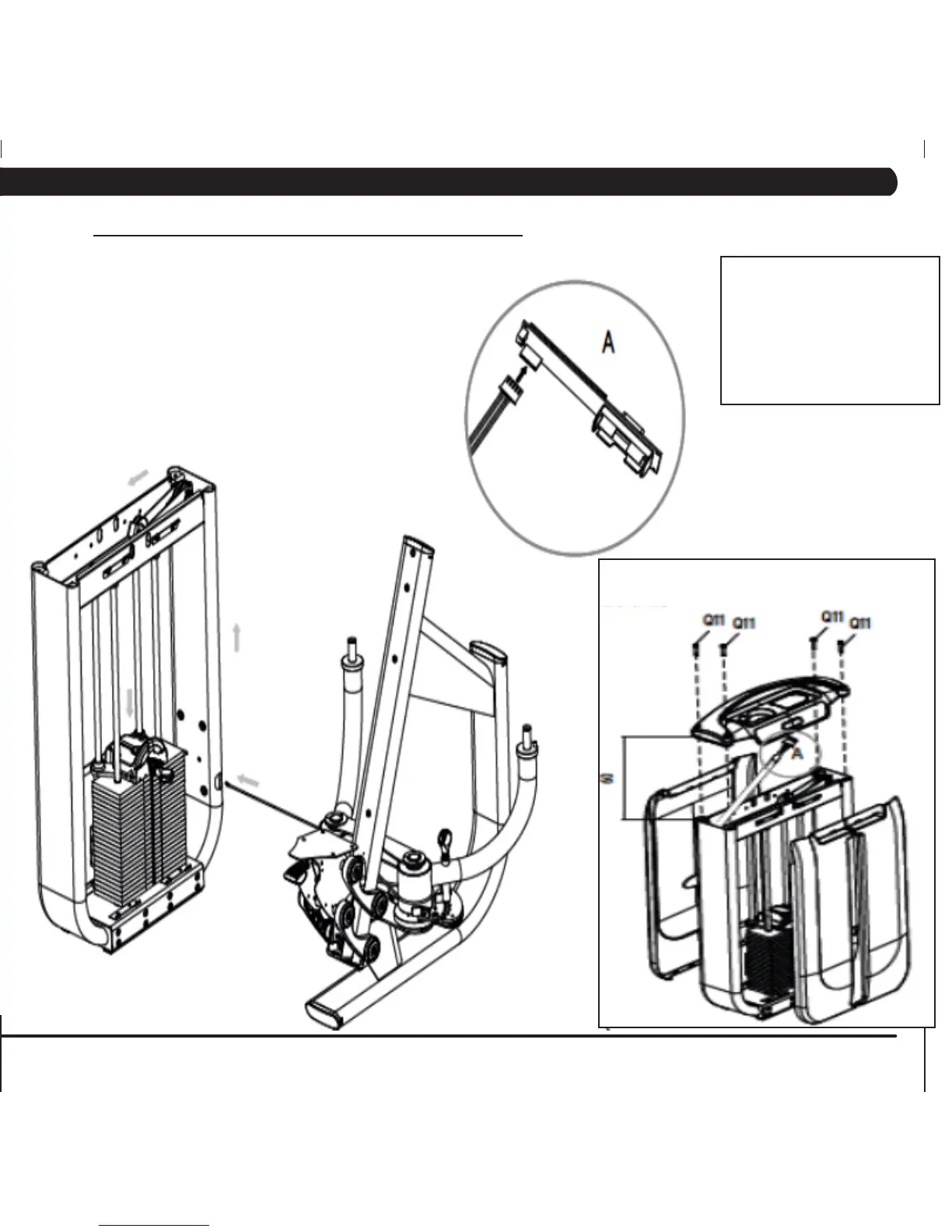

Lift the aluminum wing and top cover, then take
apart the front and rear shields. Q11 bolts will
not be used anymore for the wing and cover
re-assembly.
Item Description Quantity
F16 Screw (M10 x 30L) 10
F17 Flat Washer (M10) 8
F18 Lock Washer (M10) 6
Q11 Screw (M8 x 75L) 4
Z02 Nylon Nut (M10) 4
Z05 Arc Flat Washer 10
Z07 Screw (M10 x 75L) 2
Z15 Screw (M10 x 135L) 2
STEP 1
5.1 G7-S12 PECTORAL FLY ASSEMBLY INSTRUCTIONS - CONTINUED
CHAPTER 5: ASSEMBLY INSTRUCTIONS
