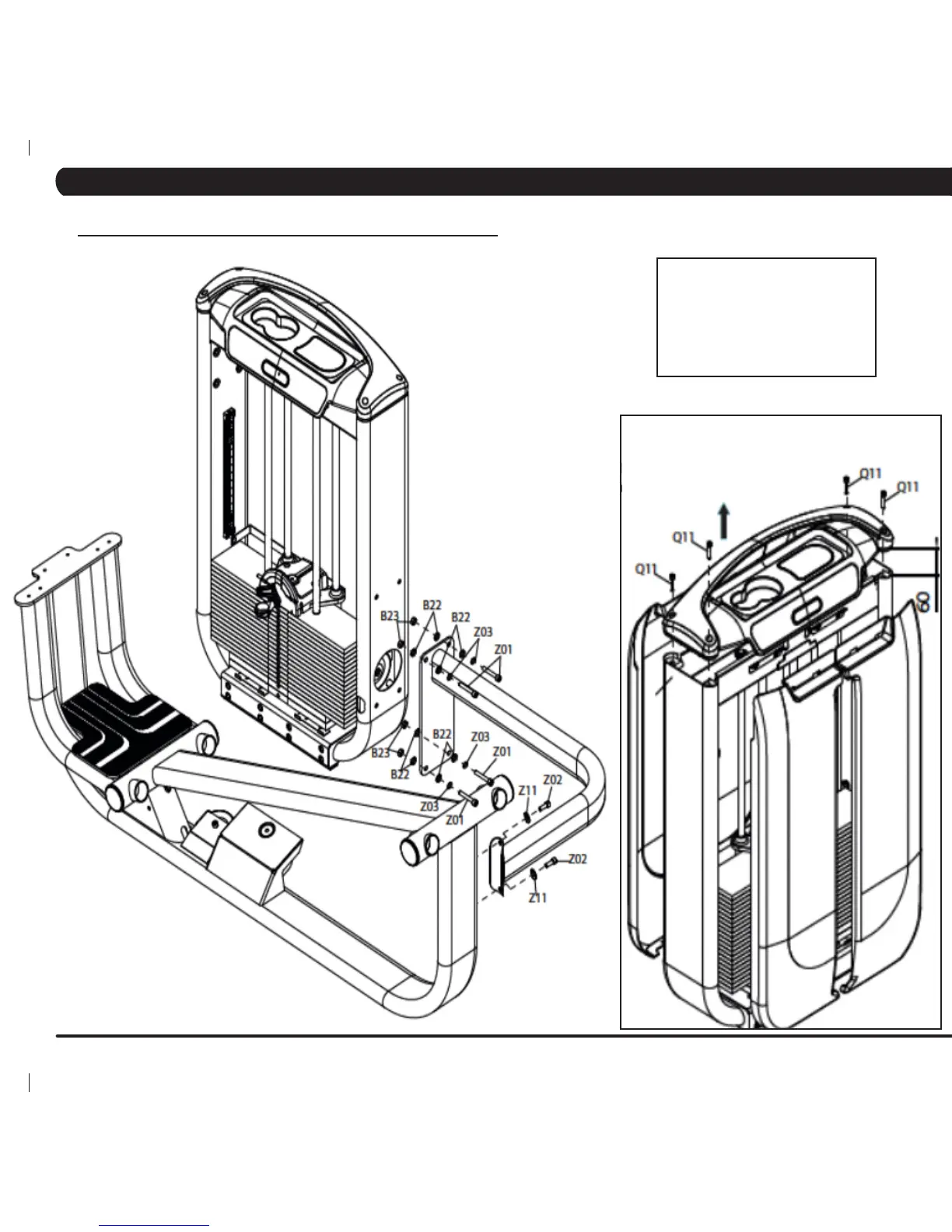

Lift the aluminum wing and top cover, then take apart the front and
rear shields. Q11 bolts will not be used anymore for the wing and
cover re-assembly.
Item Description Quantity
B22 Flat Washer (M10) 8
B23 Nylon Nut (M10) 4
Z01 Screw (M10 x 80L) 4
Z02 Screw (M10 x 30L) 2
Z03 Spring Washer (M10) 4
Z04 Arc Flat Washer 2
5.13 G7-S70 LEG PRESS ASSEMBLY INSTRUCTIONS - CONTINUED
CHAPTER 5: ASSEMBLY INSTRUCTIONS
STEP 1
To Next Page
