146

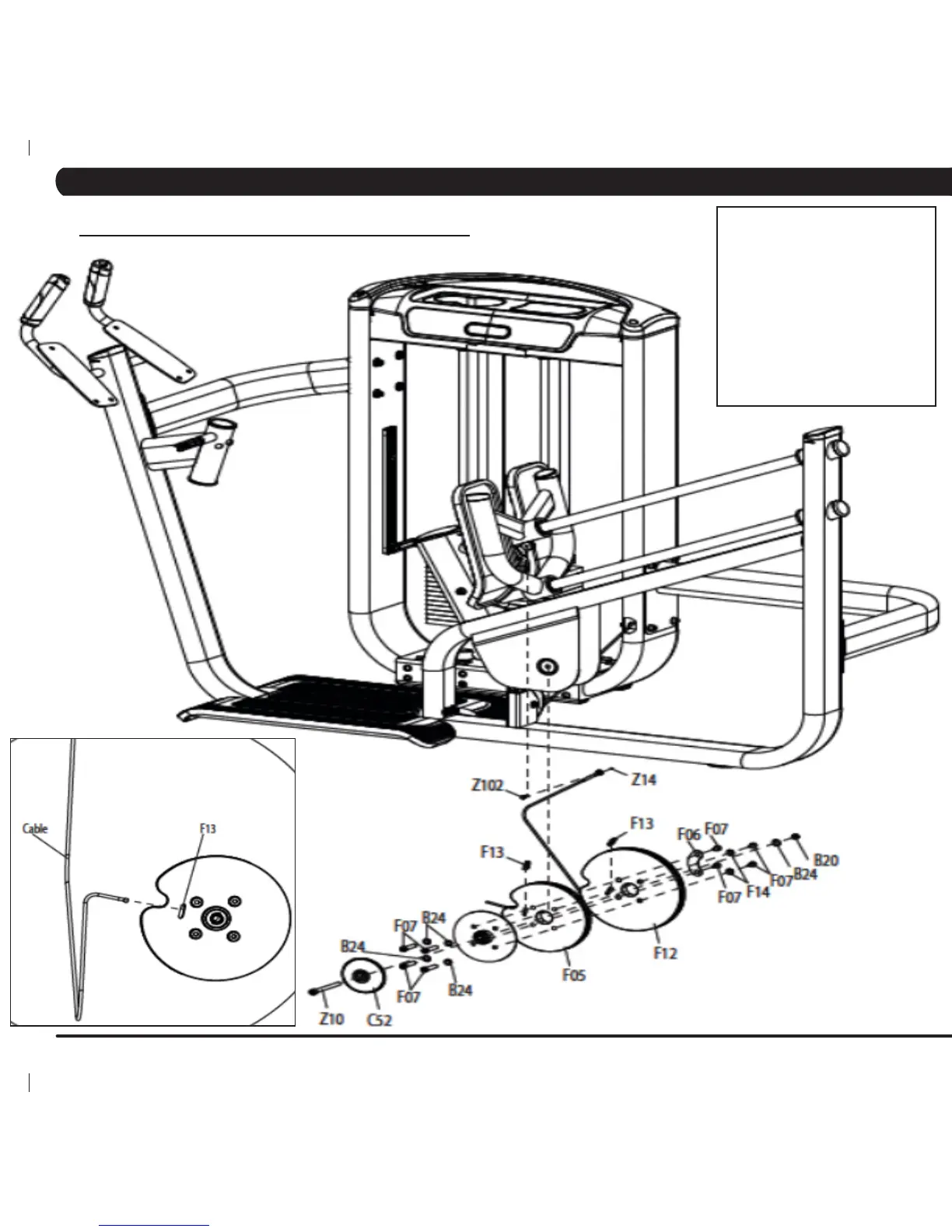

5.19 G7-S78 GLUTE ASSEMBLY INSTRUCTIONS - CONTINUED
CHAPTER 5: ASSEMBLY INSTRUCTIONS
Item Description Quantity
B20 Nylon Nut (M10) 1
B24 Flat Washer (M10) 5
C52 Pulley Cover 1
F05 Small Cam 1
F06 Stopper Plate 1
F07 Screw (M10 x 46L) 4
F12 Big Cam 1
F13 Fixing Block 2
F14 Flat Washer (M8) 2
Z10 Screw (M10 x 110L) 1
Z14 E Clip 1
Z102 Fixing Pin 1
STEP 4
