5.2 G7-S13 CHEST PRESS ASSEMBLY INSTRUCTIONS - CONTINUED
Item Description Quantity
B27 Nut (M10 x 1.5P) 4
B30 Fix Washer (M10) 12
C36 Lock Washer (M10) 8
Q11 Screw (M8 x 60L) 4
Z03 Screw (M10 x 75L) 4
Z04 Screw (M10 x 12L) 12
Z21 Washer;Arc 4

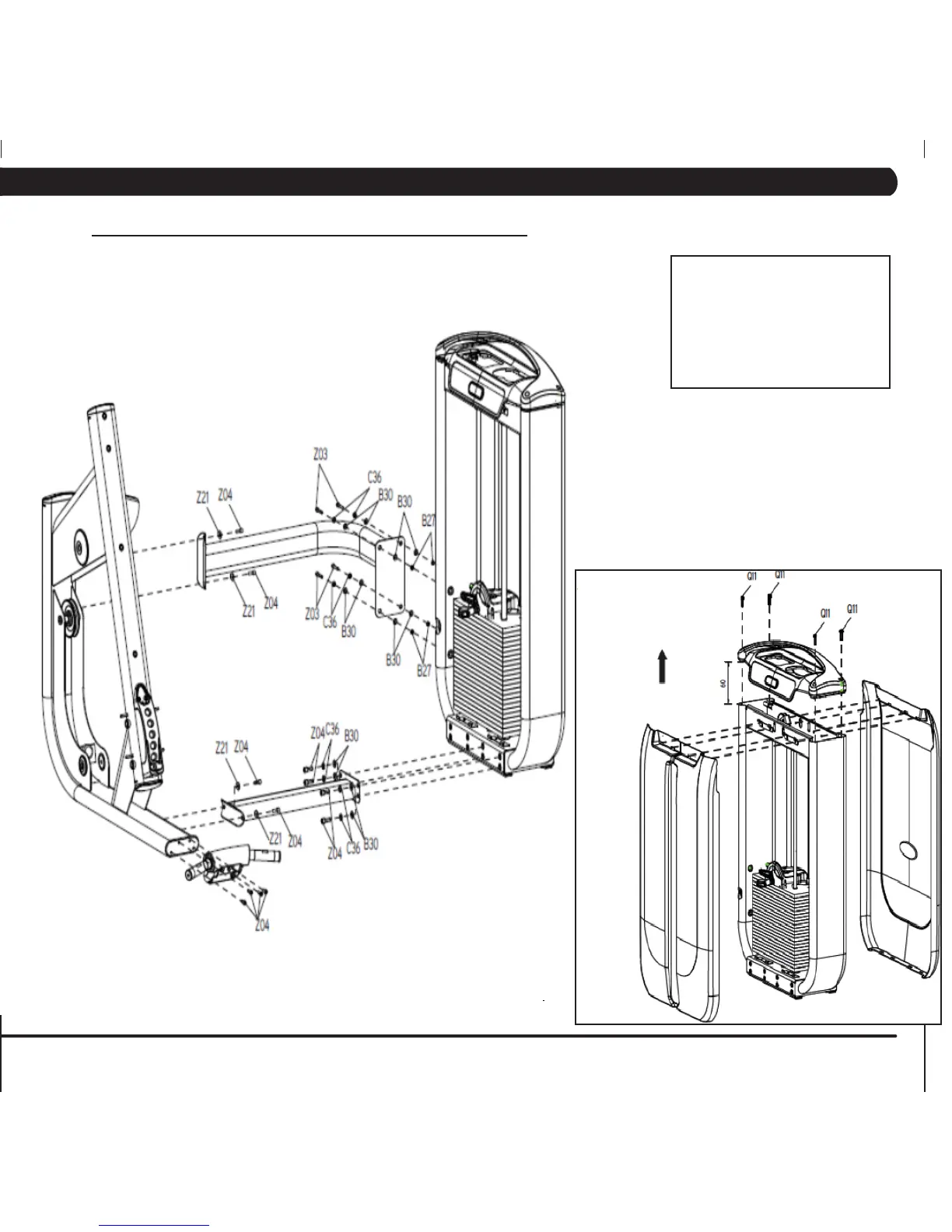

STEP 1
CHAPTER 5: ASSEMBLY INSTRUCTIONS
Lift the aluminum wing and top
cover, then take apart the front and
rear shields. Q11 bolts will not be
used anymore for the wing and
cover re-assembly.
