34

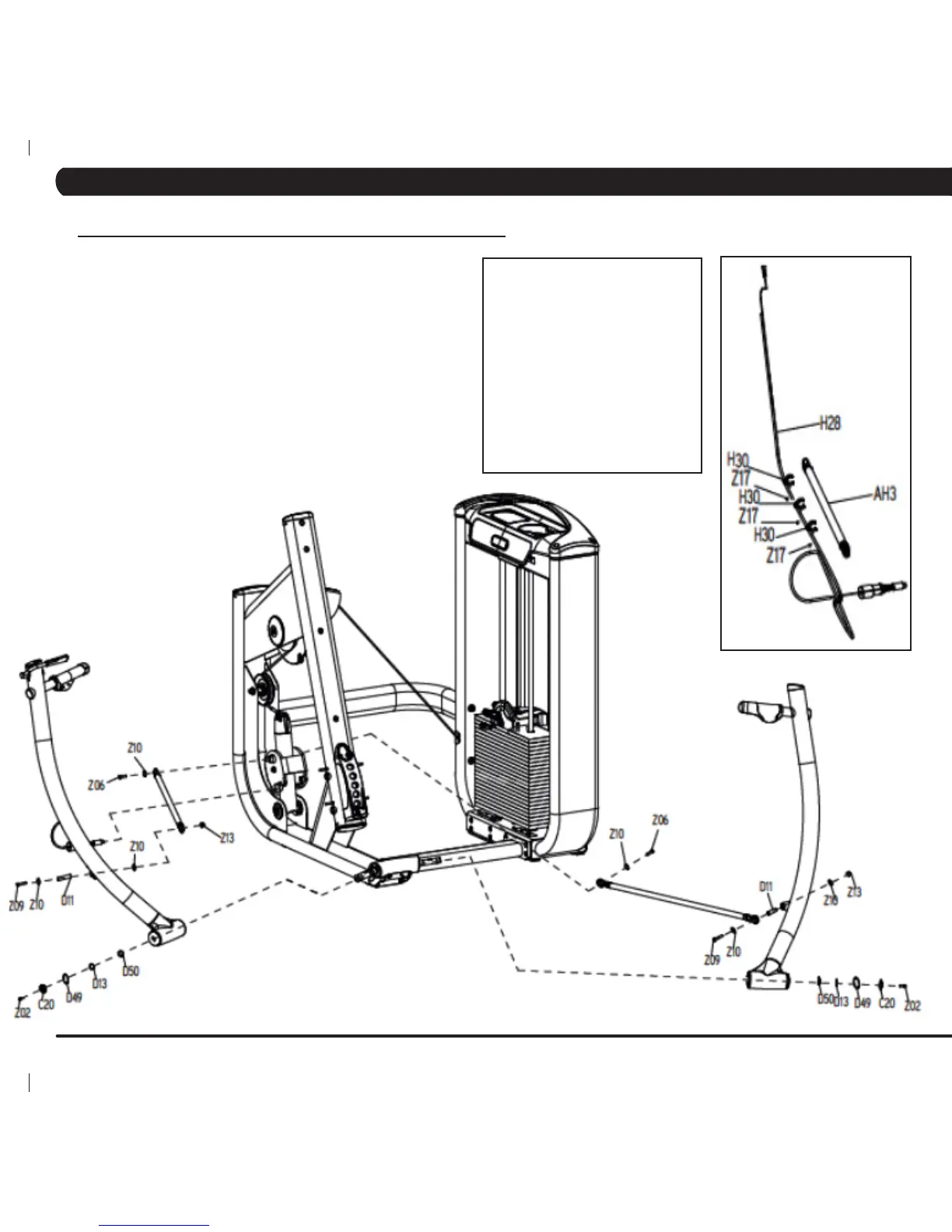

5.2 G7-S13 CHEST PRESS ASSEMBLY INSTRUCTIONS - CONTINUED
CHAPTER 5: ASSEMBLY INSTRUCTIONS
Item Description Quantity
C20 Base Fixing Cover 2
D11 Fixing Axle 2
D13 Clip;External;C Type 2
D49 Clip;Internal;C Type 2
D50 Wave Washer 2
H28 Cable 1
H30 Steel Clamp 2
Z02 Screw (M10 x 15L) 2
Z06 Screw (M6 x 10L) 2
Z09 Screw (M6 x 60L) 2
Z10 Flat Washer (M6) 6
Z13 Nut Cap 2
Z17 Settle Screw 3
STEP 4
