CHAPTER 5: ASSEMBLY INSTRUCTIONS

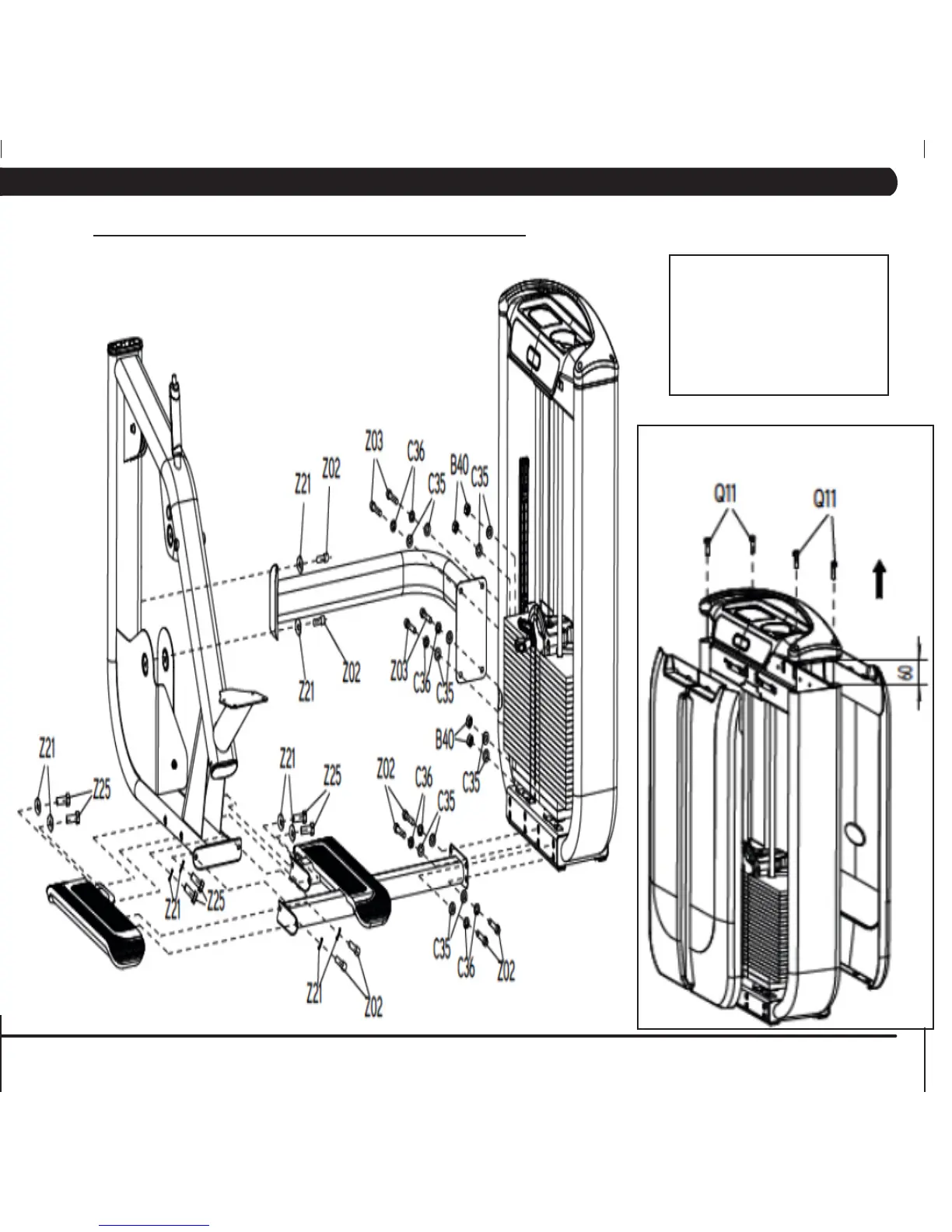

5.5 G7-S33 LAT PULL DOWN ASSEMBLY INSTRUCTIONS - CONTINUED
Lift the aluminum wing and top cover, then
take apart the front and rear shields. Q11
bolts won't be used anymore for the wing
and cover re-assembly.
Item Description Quantity
B40 Nut (M10) 4
C35 Flat Washer (M10) 12
C36 Lock Washer (M10) 8
Z02 Screw (M10 x 30L) 8
Z03 Screw (M10 x 75L) 4
Z07 Screw (M10 x 55L) 4
Z21 Arc Flat Washer 10
Z25 Screw (M10 x 30L) 6
STEP 1
