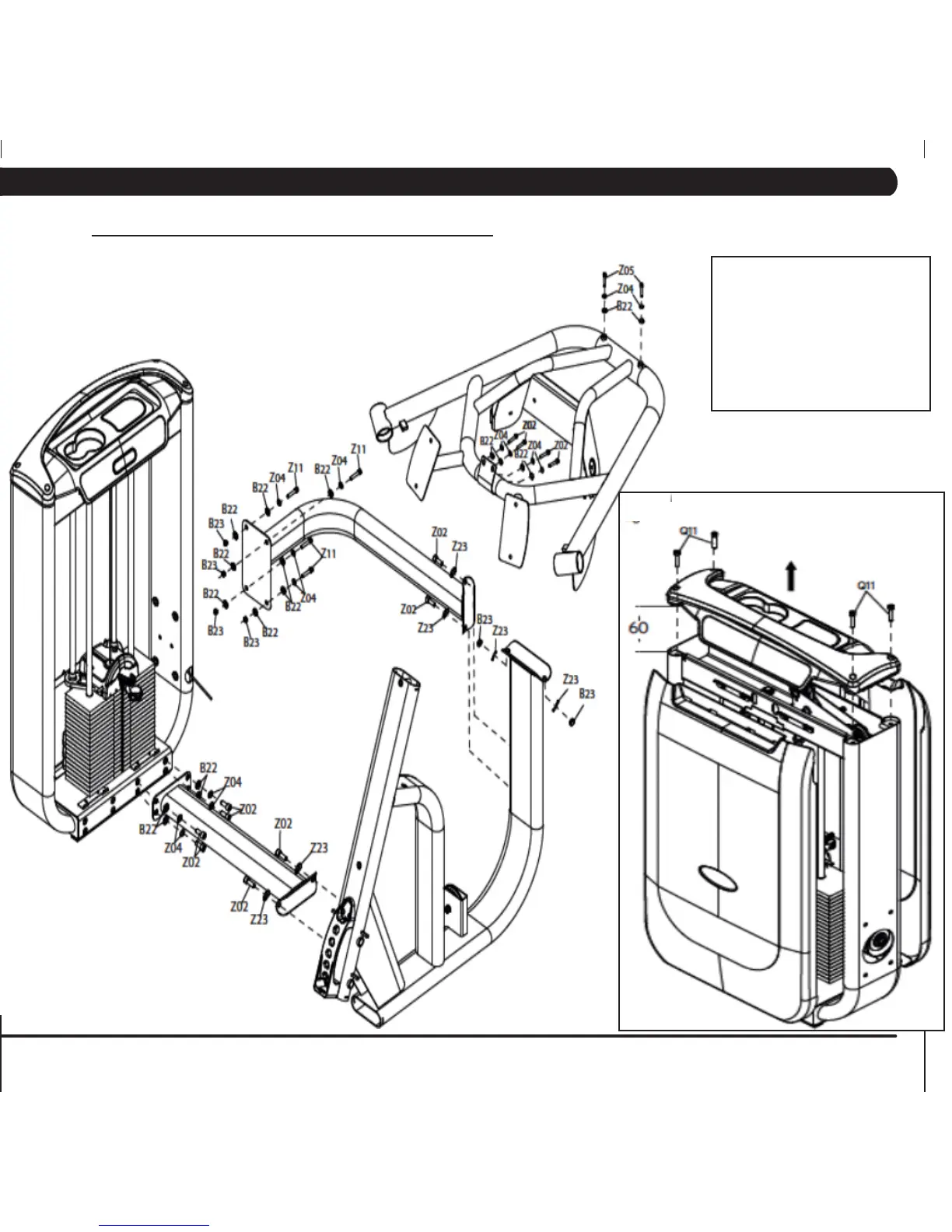

Lift the aluminum wing and top cover, then take apart the front and rear
shields. Q11 bolts will not be used anymore for the wing and cover
re-assembly.
Item Description Quantity
B22 Flat Washer (M10) 18
B23 Nut (M10) 6
Z02 Screw (M10 x 30L) 12
Z04 Lock Washer (M10) 14
Z05 Screw (M10 x 90L) 2
Z11 Screw (M10 x 75L) 4
Z23 Arc Flat Washer
J40 Swirl Spring 2
R01 Air Shock 1
STEP 1
5.7 G7-S40 ARM CURL ASSEMBLY INSTRUCTIONS - CONTINUED
CHAPTER 5: ASSEMBLY INSTRUCTIONS
