5.8 G7-S42 TRICEP PRESSDOWN ASSEMBLY INSTRUCTIONS - CONTINUED
Item Description Quantity
B22 Flat Washer (M10) 12
B23 Nylon Nut (M10) 4
Z01 Screw (M10 x 75L) 4
Z02 Screw (M10 x 25L) 6
Z03 Spring Washer (M10) 8
Z11 Arc Flat Washer(M10) 6
Z15 Nut (M10) 2
Z20 Screw (M10 x 135L) 2

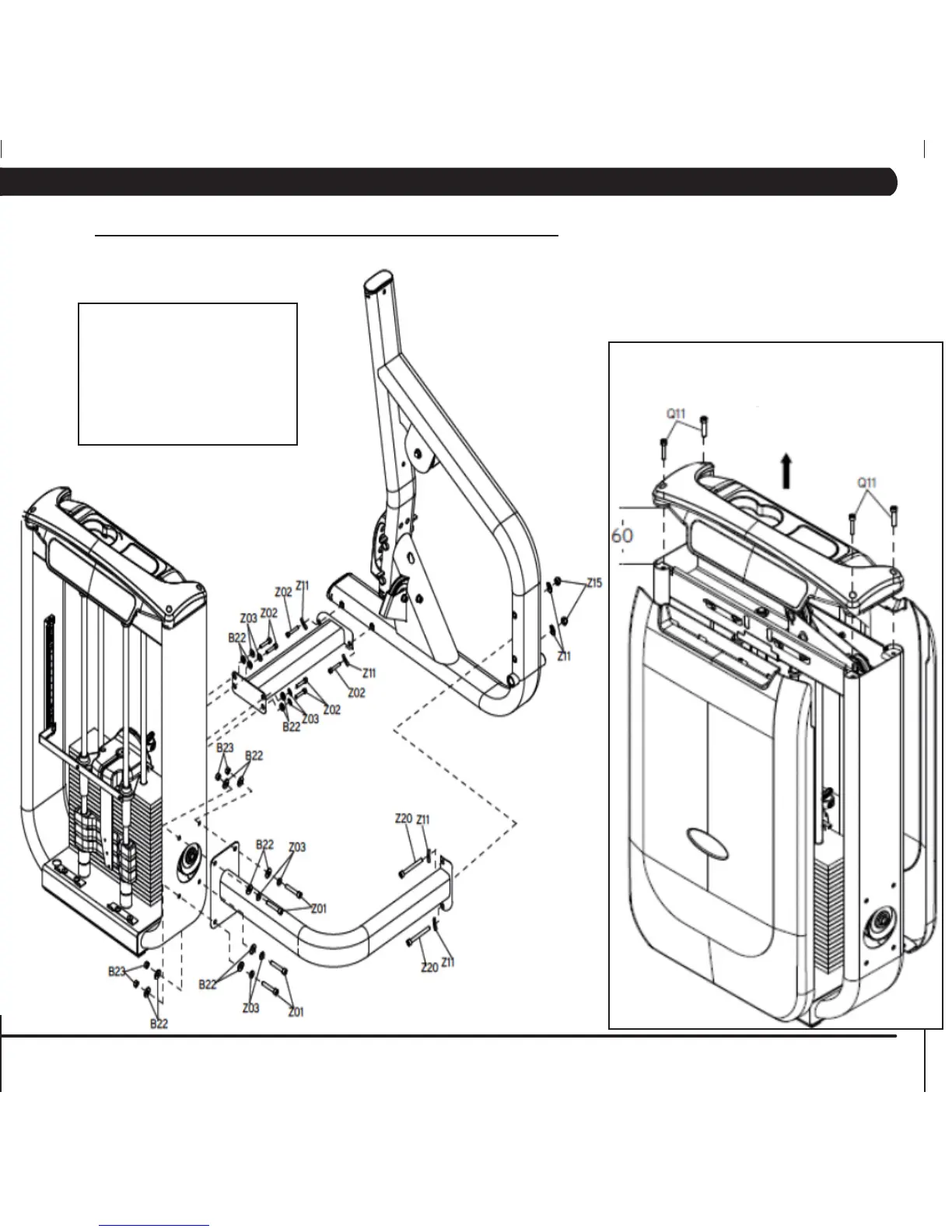

Lift the aluminum wing and top cover, then take apart the front
and rear shields. Q11 bolts will not be used anymore for the wing
and cover re-assembly.
