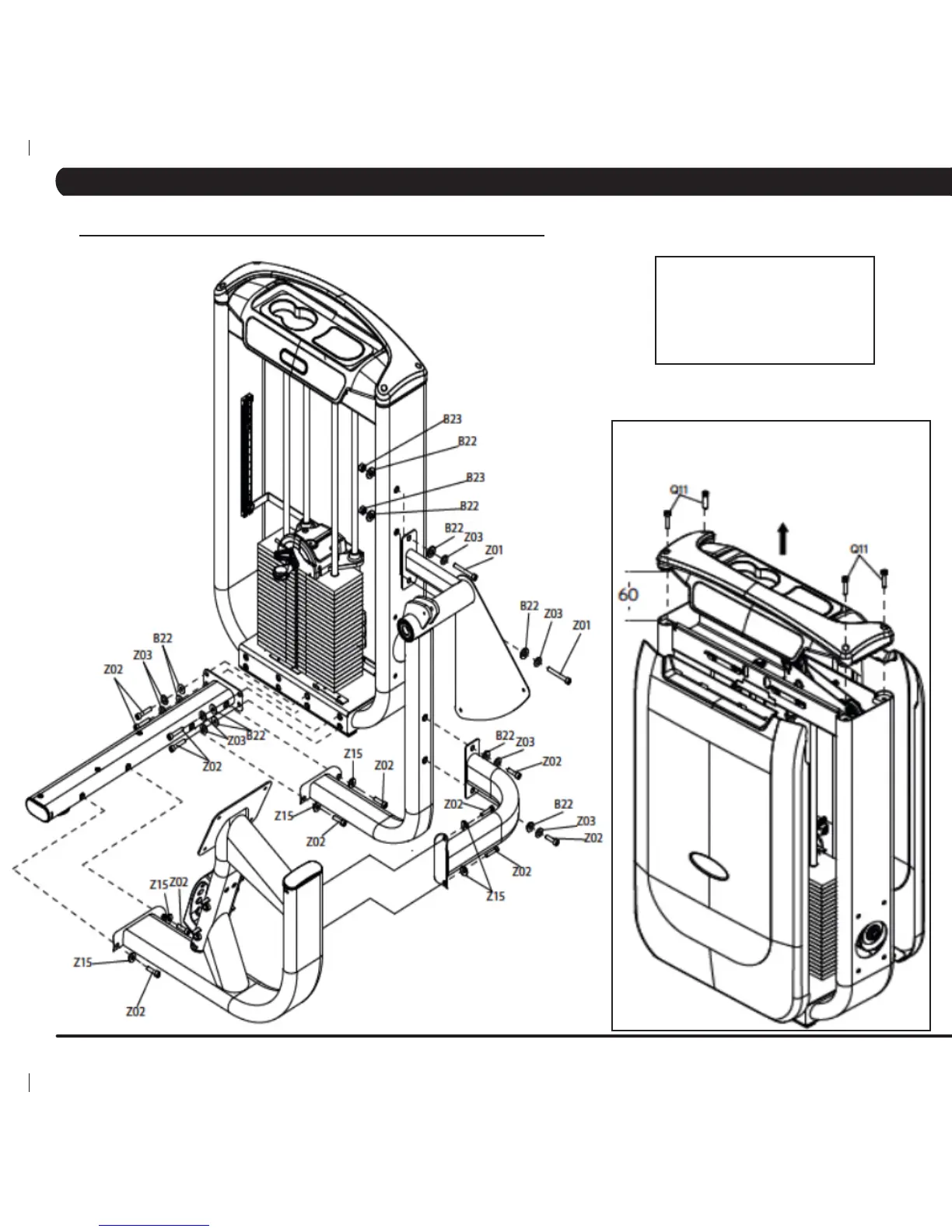

Lift the aluminum wing and top cover, then take apart the front and rear
shields. Q11 bolts will not be used anymore for the wing and cover
re-assembly.
Item Description Quantity
B22 Flat Washer (M10) 10
B23 Nylon Nut (M10) 2
Z01 Screw (M10 x 75L) 2
Z02 Screw (M10 x 30L) 12
Z03 Spring Washer (M10) 8
Z15 Arc Flat Washer 6
STEP 1
5.9 G7-S51 ABDOMINAL CRUNCH ASSEMBLY INSTRUCTIONS - CONTINUED
CHAPTER 5: ASSEMBLY INSTRUCTIONS
To Next Page
