Lift the aluminum wing and top cover, then take apart the front
and rear shields. Q11 bolts will not be used anymore for the
wing and cover re-assembly.

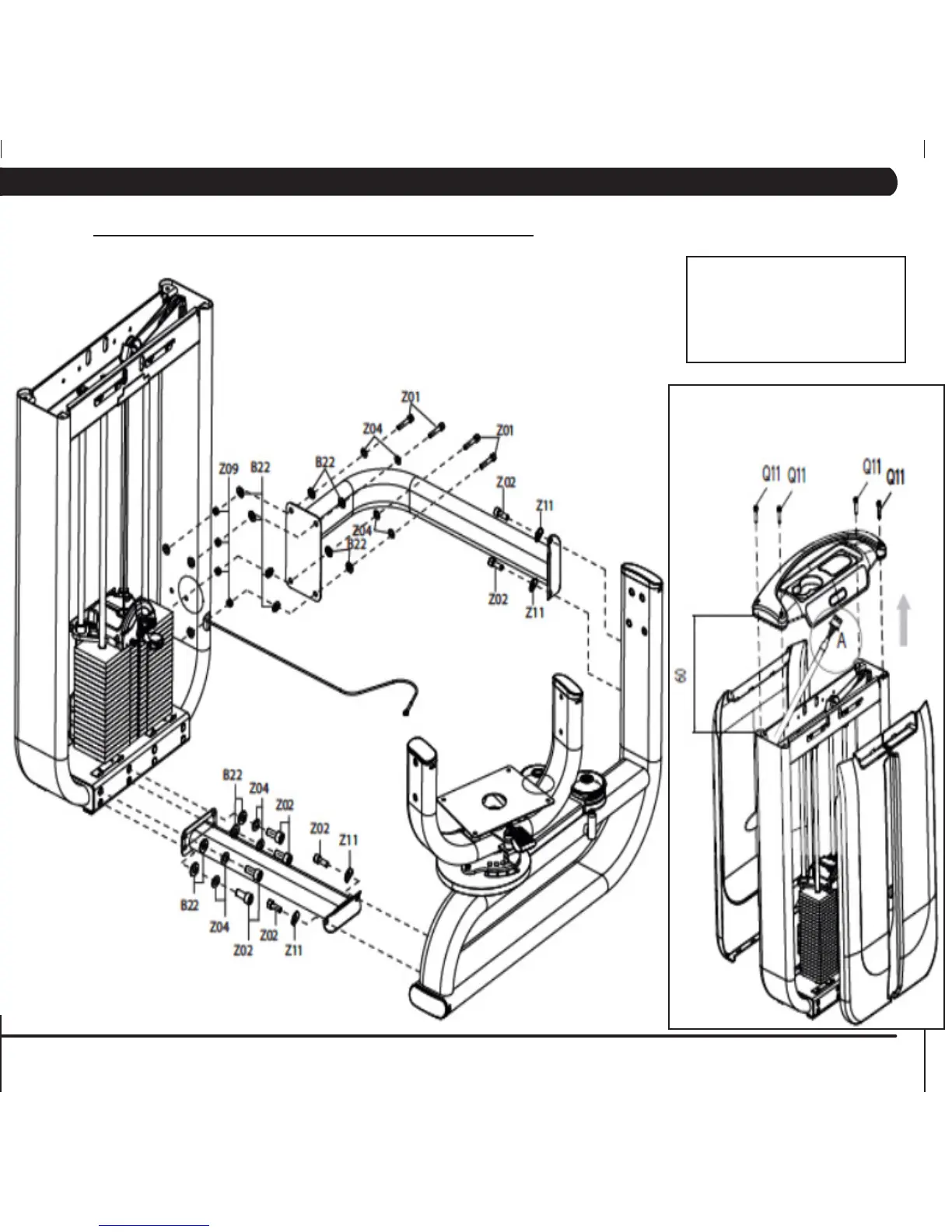

5.11 G7-S55 ROTARY TORSO ASSEMBLY INSTRUCTIONS - CONTINUED
CHAPTER 5: ASSEMBLY INSTRUCTIONS
Item Description Quantity
B22 Flat Washer (M10) 12
Z01 Screw (M10 X 75L) 4
Z02 Screw (M10 x 30L) 8
Z04 Spring Washer (M10) 8
Z09 Hex Nut (M10 x 1.5P) 4
Z11 Screw (M10 x 30L) 4
STEP 1
To Next Page
