10.8. Installation of Injector with Handle
NOTE:
The Handle and the Injector are not part of the delivery. The
responsibility for these components lies with Bracco Injeneering.

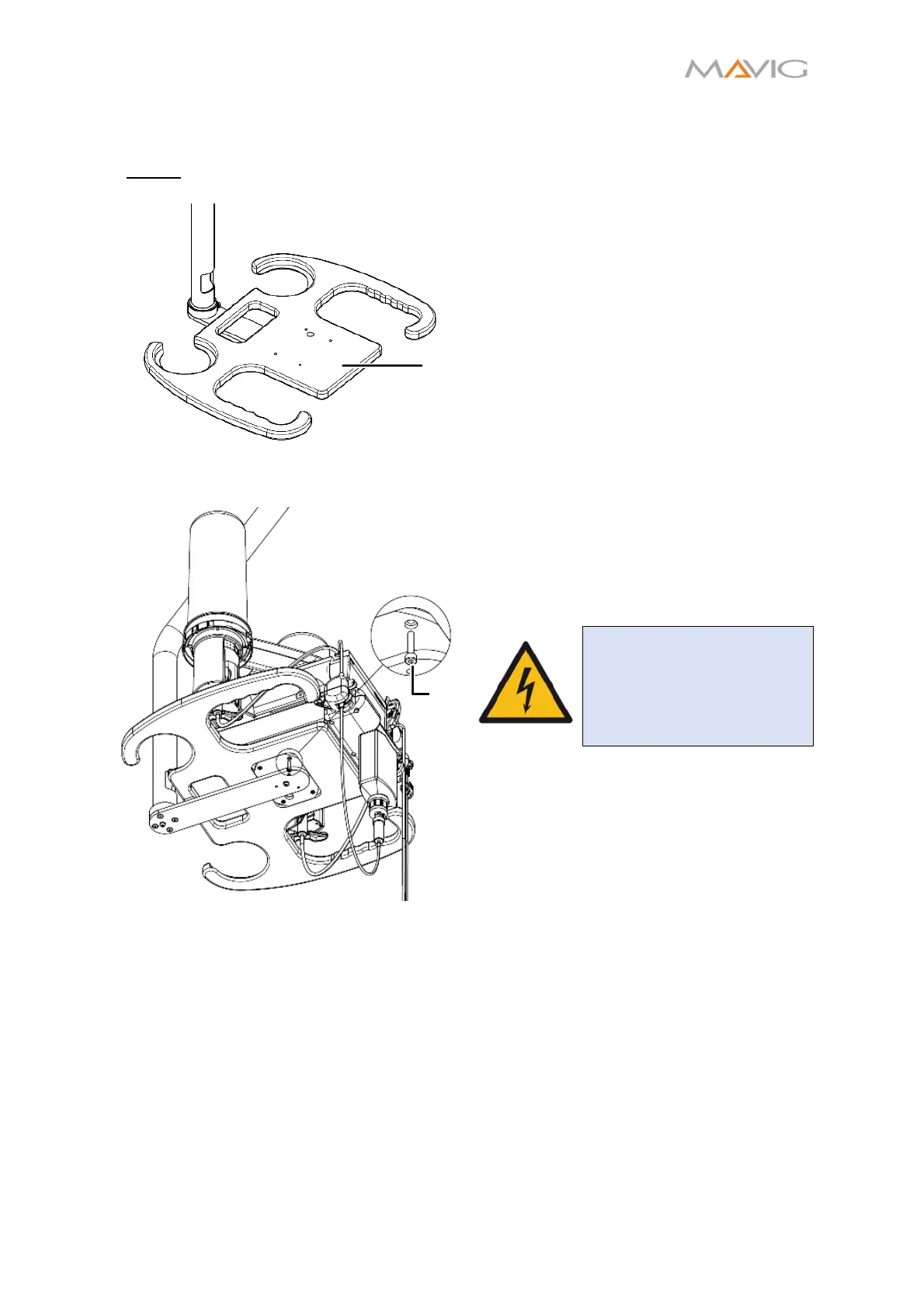

Figure 17 Placing the Handle on the Injector
Holder
1. Place the CT Exprès® Handle
on the
Injector Holder taking care to align the
positioning holes together.
Figure 18 Attaching the Injector to the Injector
Holder
2. Use the provided Allen Key and screw in
the four M4x20
screws delivered with
the CT Exprès® Handle.
WARNING
Using other screws can
impact the correct power
supply function of the CT
Exprès®!
①
②
