MAVIG CT Expres - Adjust the Upward Height Stop Point

Page 31 of 54 5100054 BND01O03.docx
10.13. Adjust the Upward Height Stop Point

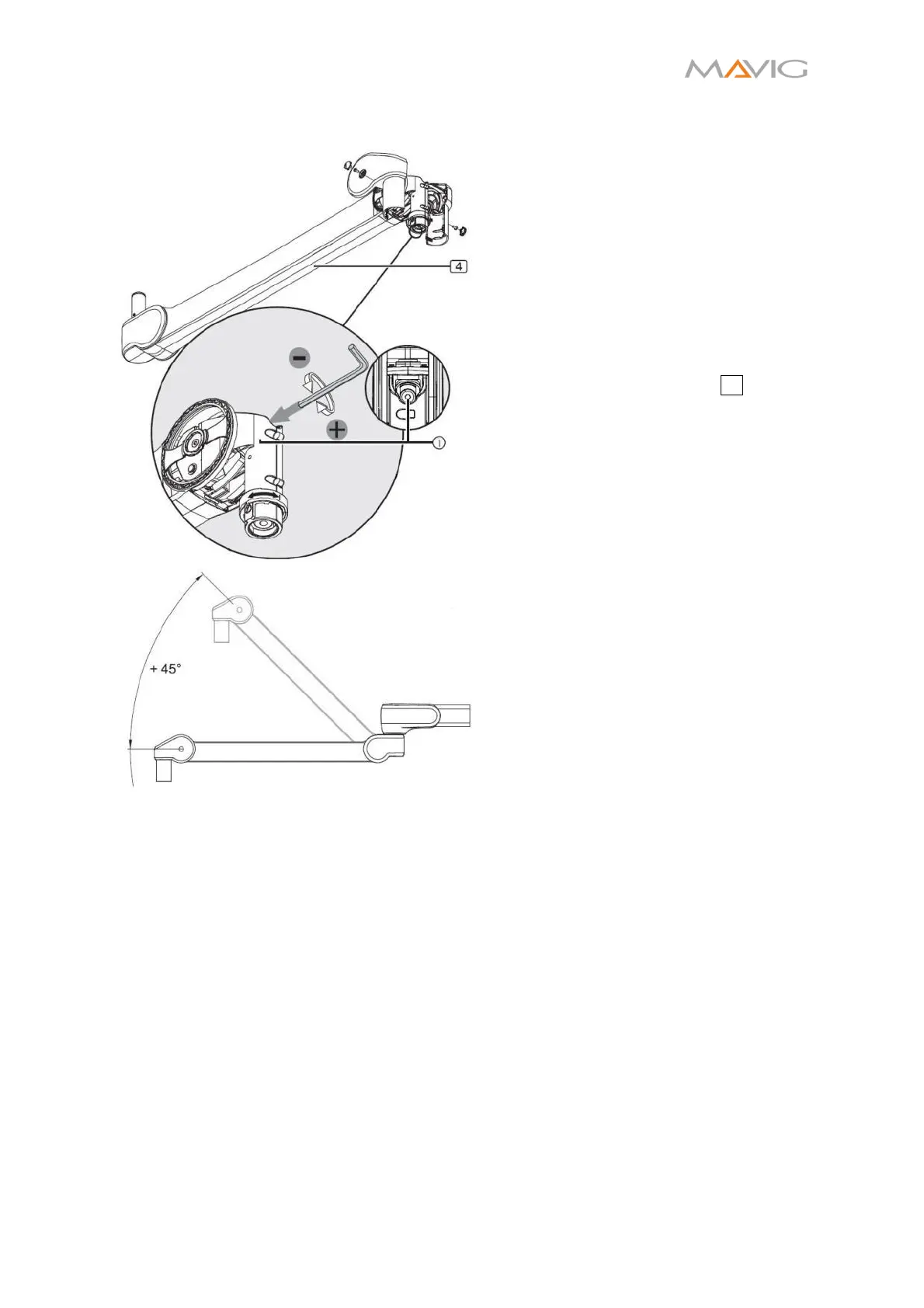

Figure 28 Adjusting the Upward Height Stop Point
The upward height stop point can be
adjusted from approximately 0 degrees
to +45 degrees.
1. If needed, disassemble the front
spring arm cover according to
Section 10.18.1, page 35.
2. Insert a size 5 Allen key into the
adjustment hole ①
3. Slightly pull down the spring arm in
order to relieve the adjustment
screw in the spring arm 4 .
• To reduce the swivel range:
Turn the Allen key anti-clockwise.
• To extend the swivel range:
Turn the Allen key clockwise.
4. Perform a function test.
5. Install the front spring arm cover
and the cover plates according to
Section 10.18.1, page 35 & Section
10.18.4, page 36.
