10.11. Installation Grounding Cable

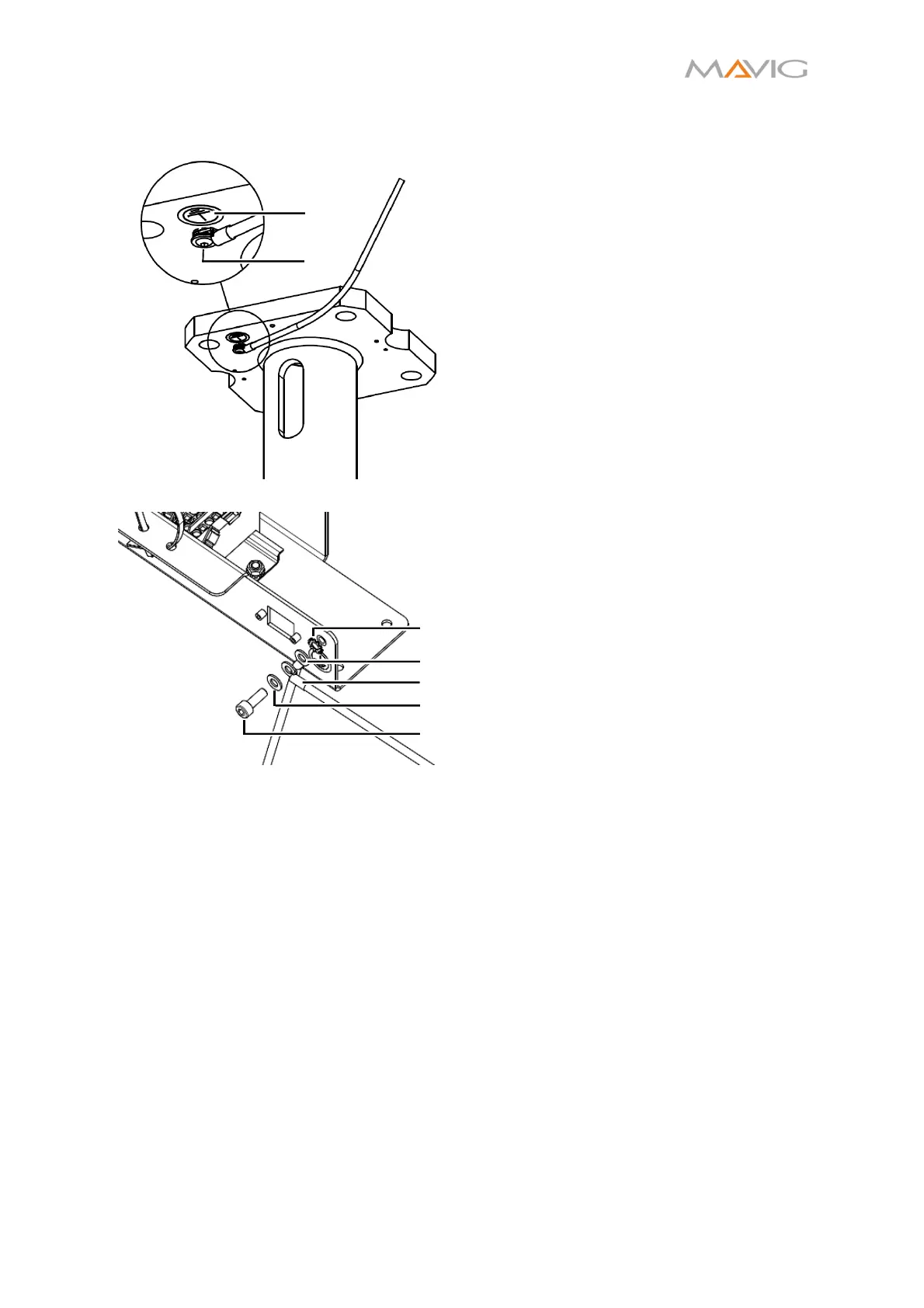

Figure 25 Grounding Cable at Ceiling Column
1. Make sure, the ceiling column
grounding cable ① is adequately
installed at the depicted position next to
the PE-Symbol ②.
• The grounding cable provides
grounding for every component of
the carrier system.
Figure 26 Attaching the grounding cables to
the connection plate
2. Attach both grounding cables to the
grounding point at the connection plate
in the depicted order:
• Serrated Washer ③
• Ceiling Column Grounding Cable ①
• Hospital Grounding Cable ④
• Washer ⑤
• Cylinder Screw M5x14 ⑥
3. Tighten the screw to 5 Nm.
①
⑥
⑤
④
③
