13.2. Weights
Components Weight
Ceiling Column 200 mm 4.1 kg
Ceiling Column 400 mm 6.2 kg
Ceiling Column 800 mm 10.5 kg
Canopy 0.7 kg
Extension Arm 9.5 kg
Spring Arm 7.8 kg
Injector Holder 4.5 kg
Connection Plate 0.3 kg
13.3. Dimensions

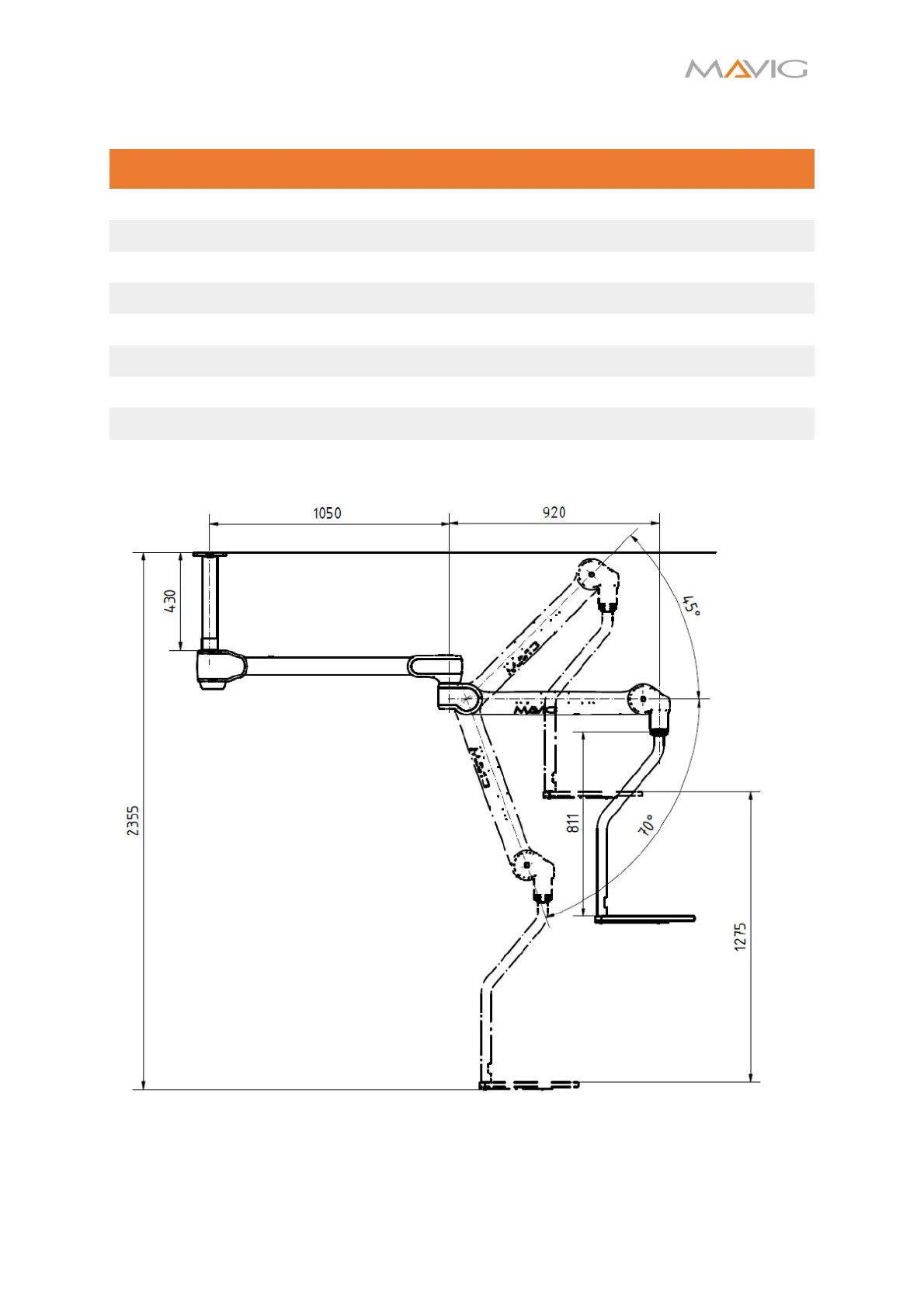

Figure 47 System Dimensions
Figure 47 shows the system dimensions for a 400 mm ceiling column. Please note, that
all ceiling columns are 30 mm longer, than their nominal value measured from the top of
the flange plate to the bottom end of the tube.
