10.16. Installation/Disassembly of Extension Arm Covers
In the following section, the disassembly of the extension arm cover 5 is described. To
mount the covers follow the instructions in reverse order.

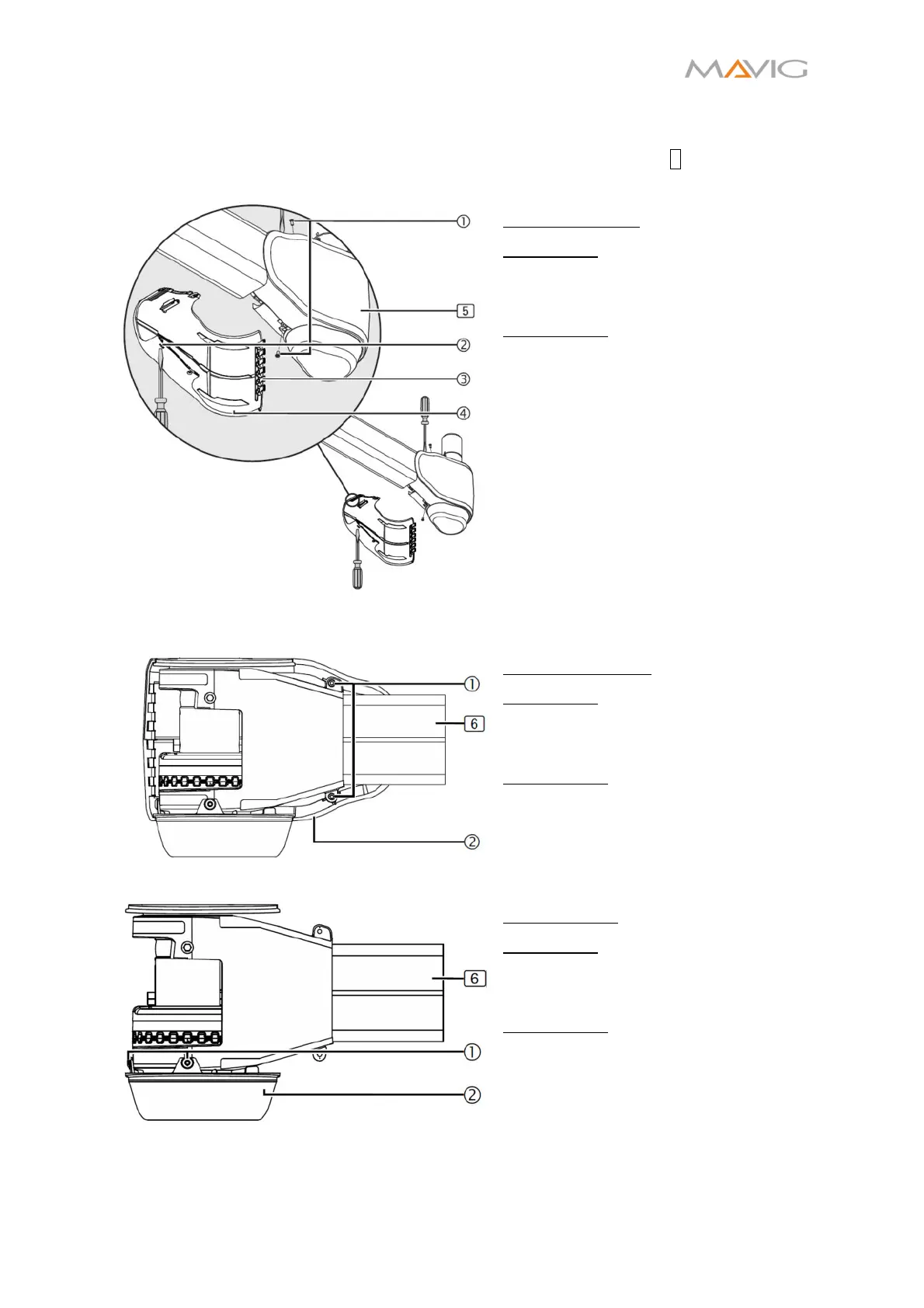

Figure 33 Removing the left cover half from the
Extension Arm
Left Cover Halve:
Installation:
Follow the disassembly instructions in
reverse order.
Disassembly:
1. Unscrew the two PT screws 3x8
mm ① from the top and bottom
sides of the extension arm cover
(Torx T10).
2. Disengage the snap-lock of the
covers by gently pushing a suitable
slotted screwdriver into the slot on
top of the covers ②.
3. Carefully disengage the latches ③
and remove the left cover half ④.
Figure 34 Removing the right cover half
Right Cover Halve:
Installation:
Follow the disassembly instructions in
reverse order.
Disassembly:
1. Unscrew the two PT screws 3x12
mm ① (Torx T10).
2. Remove the second cover half
.
Figure 35 Removing the bottom cover
Bottom Cover:
Installation:
Follow the disassembly instructions in
reverse order.
Disassembly:
1. Unscrew the three cross recessed
head screws M4x10 ① (Torx T10).
2. Remove the bottom cover.
