Page 77 P/N 03521015 Rev Q

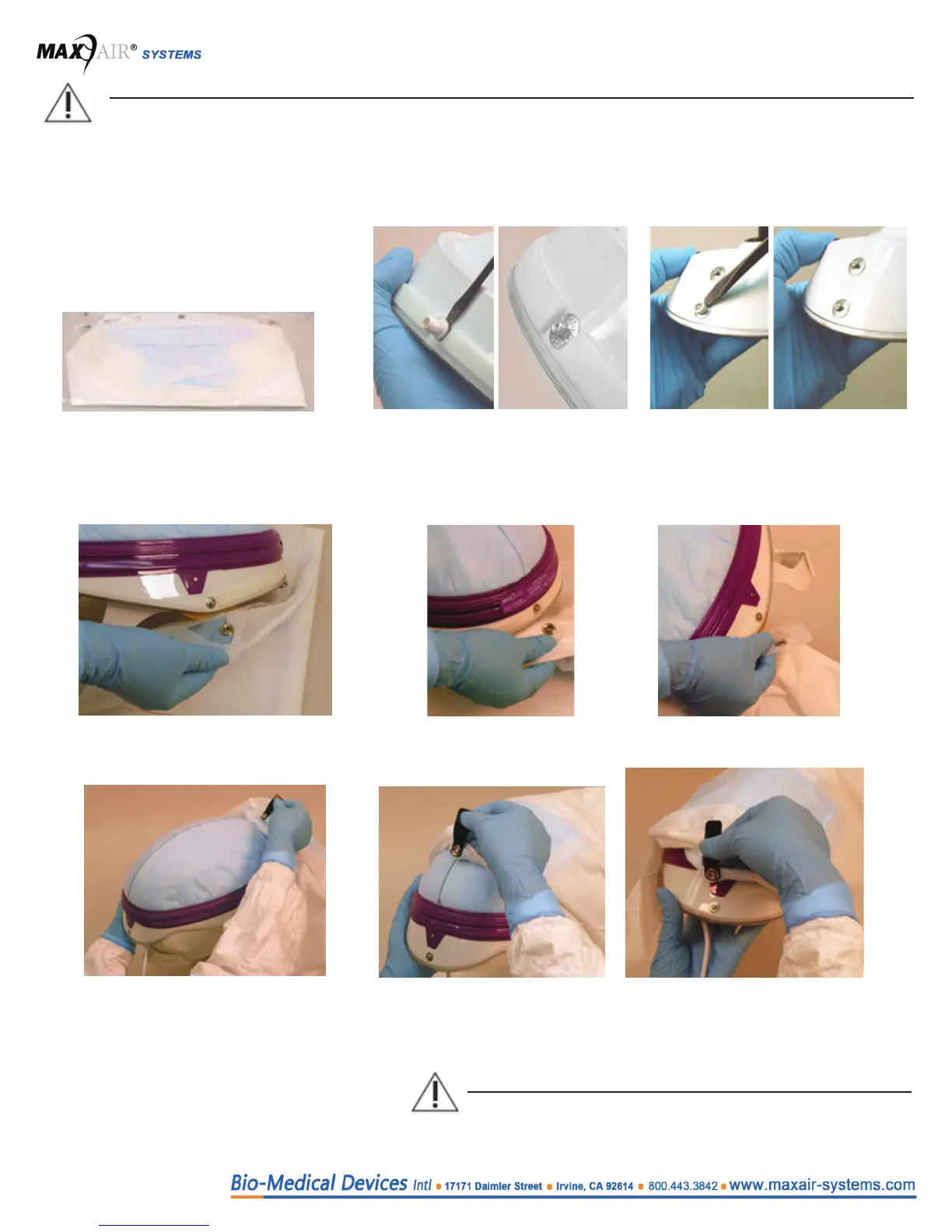

Prepare Hood and Helmet for Assembly
1. Remove hood from packaging and lay
hood on counter with lens/snaps facing
up.
2. If necessary use a thin, at blade to gently remove Front and Rear Adapter
Posts.
Assembly
3. Snap one side of Hood DLC to one side
snap of Helmet (DLC Cu facing in).
4. Snap front of Hood DLC to center
Helmet snap.
5. Snap other side of Hood DLC
to other side snap of Helmet.
6. Grasp Hood Snap Tab and begin pulling
hood up and over helmet.
7. Continue pulling over and down the
back of the helmet.
8. Secure the Hood Snap Tab on
the lower rear Helmet snap.
Disassembly WARNING
Dispose of contaminated Hoods according to
your Institution’s protocols.
Reverse steps 3 through 8 to remove Hood
from Helmet.
NOTE
Read Sections 1 through 13 before proceeding. If one is attached, remove the Filter Cover Cap (Section 13).
Assemble the 2165-10 Filter Cartridge per Section 12.
