Maxair CAPR - HE DLC Hood with Heavy Loading Filter (HLF); CAPR 2270-04 HE DLC Hood Standard System Configuration

Page 79 P/N 03521015 Rev Q

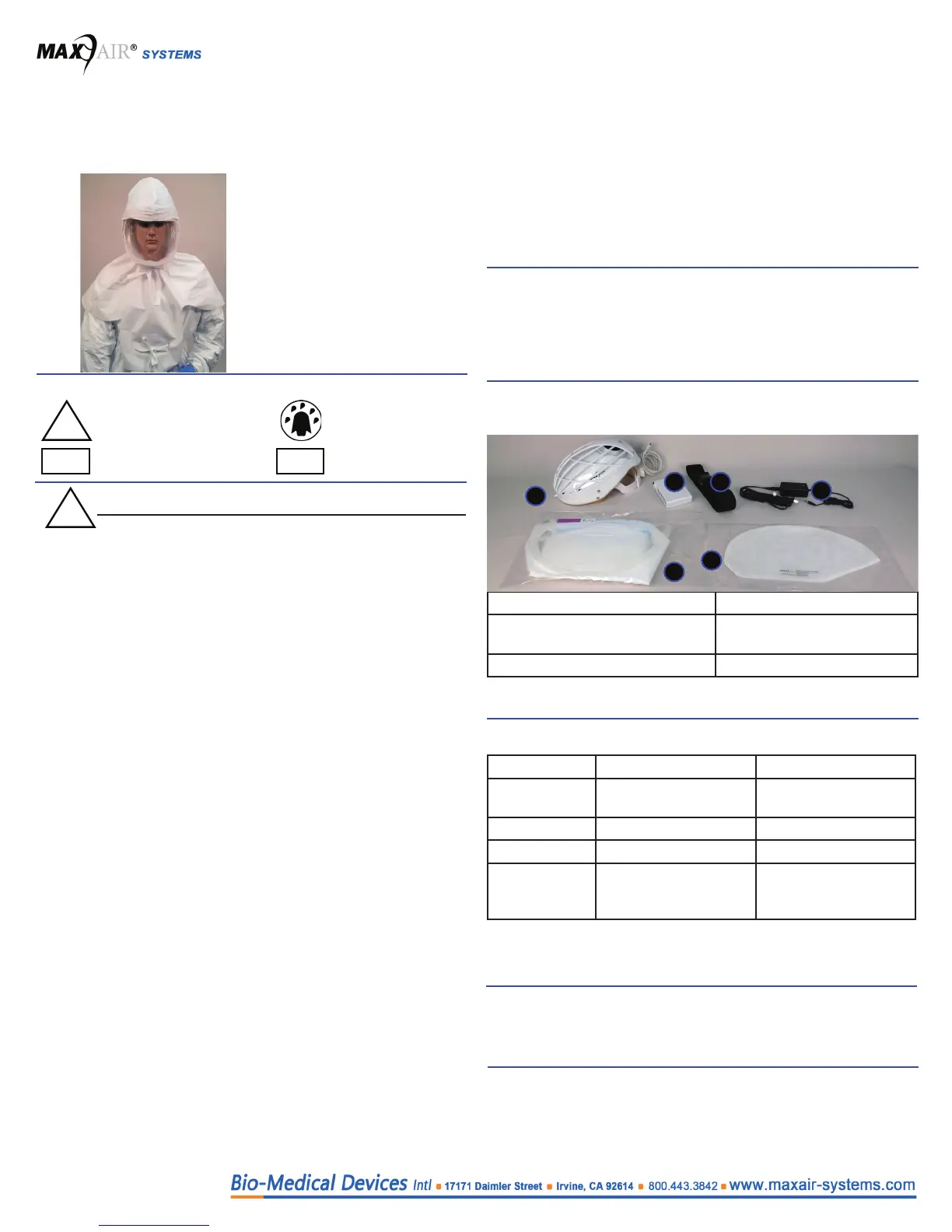

19. HE DLC Hood with Heavy Loading Filter (HLF)
O.N. 2270-04SM*
(07831036)
Small-Medium
O.N. 2270-04ML*
(07831037)
Medium-Large
*one 2170-26 (07831040) HLF
is included with each Hood
WARNING
Use only if package is received unopened and contents are
undamaged. If damage is noted, contact the shipper for replacement
or repair.
Prior to using any MAXAIR
®
System or component, be sure to be
familiar with the system’s NIOSH approved conguration.
DO NOT use if any component is damaged. If any components are
damaged or contaminated and therefore unt for safe and e󰀨ective
use, they should be replaced immediately.
Only trained and experienced personnel who have read and under-
stand the User’s Instructions should use this product.
Failure to follow the User’s Instructions, these and in the MAXAIR
Systems User’s Instructions, P/N 03521015, may be hazardous to
the user’s health.
The institution using this product in any application is responsible for
determining the appropriateness of this equipment relative to regula-
tory requirements. Bio-Medical Devices Intl, Inc. does not recom-
mend the appropriate systems for a particular institution or facility.
Use only MAXAIR Systems/ NIOSH approved compatible
components.
NOT for use in atmospheres immediately dangerous to life or health
(IDLH), and atmospheres containing less than 19.5% oxygen, or
more than 25% oxygen.
Flammability Level I: fabric may burn if exposed to open ame.
Follow current local regulations governing biohazard waste to safely
dispose of used shrouds.
If you need more information, contact your BMDI Sales
Representative, or call BMDI customer service at 1-800-443-3842.
!
Symbol Denitions
Warning, Caution, or Note Fluid Resistance
Order Number Part Number
!
O.N. PN
Intended Use
The MAXAIR
®
CAPR
®
Hood Systems are intended to lter
aerosolized and droplet particulates and provide high level uid
resistance.
Hoods are designed for single use applications.
For Use With
The MAXAIR 2270-04 HE DLC Hood is a component of the
MAXAIR CAPR Hood Systems and provides optimum performance
when donned with a MAXAIR CAPR Powered Air Purifying Respirator
(PAPR) 2081-03 Helmet (optionally with 2082-03 Helmet w/chin bar).
CAPR 2270-04 HE DLC Hood
Standard System Conguration
1. 2081-03 Helmet w/ Power Cord 4. 2270-04 HE DLC Hood
2. 2500-36TSC Battery 5. 2170-26 Heavy Loading
Filter
3. 2000-76 Battery Belt 6. 2600-01 Battery Charger
* The 2500-30TSC 16-20 hour/charge battery is an alternate that may be used
in place of the 2500-36TSC.
Materials
MATERIAL TYPE FLUID RESISTANCE*
Body (Shroud) Polypropylene Level 4 compatible
(seams included)
Lens Polycarbonate Level 4 compatible
Filter Polypropylene Level 3 compatible
HLF Polypropylene/
modacrylic blend
General purpose uid
absorption and large
particle lter.
* Internal test data demonstrates material compatibility with the liquid barrier
performance classication levels described in ANSI/AAMI PB 70:2012 for
isolation gowns, etc. Seams between non-like material are excluded.
Specications
Temperature Limits: 49
0
C
APF = 25
Regulatory
NIOSH
1
2
4
5
6
3
